PCE-T-100 thermometer with data logger
thermometer with a single channel data logger for temperature measurements over a prolonged period (memory for 64,000 readings)

This thermometer with data logger will measure air temperature and intermittently store the readings in memory. This compact thermometer / data logger with its expansive memory for 64,000 readings is used for taking readings over extended periods of time in storage rooms, supermarket coolers, cold storage or refrigerated trucks in the food industry and for machines, heating processes and warehouses in the industrial sector. The current temperature reading appears on the display and is stored to memory, in a way that they are easy to read or easily transferred to a computer to be viewed graphically on a time curve. Memory can be cleared manually and the data logger can be preprogrammed (start time, stop time, date and measurement interval) or readings can be taken at a specific moment.
Values saved to the data logger can be transferred to a computer to be analysed at a more convenient time. This ability to view large amounts of measurement data is useful in the foods industry to quickly identify temperature irregularities for a refrigeration unit and the time at which the irregularity occurred. The internal real time clock and date allows the user to identify any events accurately. Measurement intervals can be easily adjusted. The enclosure is protected against dust and water splash, and the electronic component is protected against impacts which could cause incorrect readings when being used in the industrial sector. In cases where the device is being used in areas with poor lighting, the backlit display can compensate for such conditions.

Note:
The software pack (software, RS-232 cable and Docking Station) which is required to perform data transfers from the data logger to a computer is available separately.

  - Memory for 64,000 readings
  - High measurement quota
  - RS-232 interface
  - Optional software and cable for data transfer to
    a computer
  - Backlit display
  - Real time clock with adjustable date (deviation
    of 5 seconds / month)
  - Adjustable measurement quato (1 second to
    60 minutes)
  - Low battery indicator
  - EEPROM of permanent data
  - Includes wall mount
  - Replaceable batteries
  - Ingress protection: IP 66
  - Can be recalibrated
  - Optional ISO calibration certificate

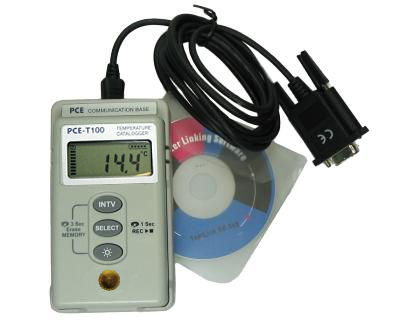

 PCE-T-100 thermometer with data logger
PCE-T-100 thermometer with display

View or print the user's manual
PCE-T-100 thermometer with data logger: the user's manual


 thermometer with data logger

Note: PCE-CB software pack is available separately

Technical specifications
Measurement range - 30 to 70°C
Accuracy ±0.7°C <40°C, ±1.5°C >40°C
Resolution 0.1°C
Memory capacity 64,000 readings
measurement intervals adjustable, 1 second to 60 min
Start / stop time, date programables
Power 2 internal batteries (1.5V) interchangeable
Battery life approx. 1 year
Operating conditions - 30 to 70°C / 0 to 98% r.h.
Ingress protection IP 66 against dust and water splash
Dimensions 92 x 55 x 22mm
Weight 200g
Software

Programmable software (for professionals needing to connect the device to a computer via the RS-232 interface) and Docking Station. The programme contains the following:
 - Numerical columns and graphical representation of data (x - t diagram with time and date), series of data can be exported to other programmes such as Word or Excel.
The programme is in English and comes with several images and descriptions that make it easy to use. Adjustments can be easily made to the data logger, as well as data when it has been transferred to a computer.


            PCE-T-100 thermometer with data logger: graphic of the series of data

Contents

PCE-T-100 thermometer, wall mount, 2 batteries and user's manual
(PCE-CB software pack available separately
)

Optional accessories
PCE-CB software pack
To programme the parameters of the device and to export data to a computer.

PCE-T-100 thermometer with data logger: software pack

- ISO calibration certificate

Laboratory calibration with a certificate (recommended annually)
- RS-232 to USB adaptor (required for connection to a laptop)

technical specifications for the PCE-T-100 thermometer with data logger.
