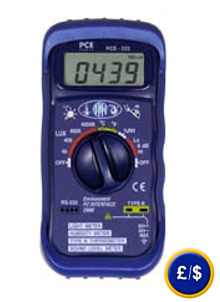

PCE-222
pocket-sized thermometer
contact
thermometer for environmental conditions
(internal sensors for measuring sound,
light, temerature and relative humidity)
with RS-232 interface and Windows
compatible software
|
|
The PCE-222
contact thermometer is a multiuse
device for measuring luminance, sounds
levels up to 130dB (able to measure A-weighting
frequency curve adapted for audio
psychology and can determine short sound
bursts),
temperature and relative humidity. The
software and the data cable make it
possible to generate graphs from the
measurement data as wellas save and
print detailed results. An ideal devce
for the education sector.
This
link
gives an overview of all types of
thermometers we have available.
- Easy to use
- Integrated light, sound,
temperautre and relative
humidity
sensors
- RS-232 interface with optical
insulation and
Windows compatible
software
- Large LCD and function display
- Auto shut-off
- Low battery indicator
- Includes software and RS-232
data cable, type-
K temperature sensor
and user's manual
|
PCE-222 contact thermometer
View or print the user's manual
|
|
Technical
specifcations |
Range of
measurement:
-
Light
- Temperature
- Relative Humidity
- Sound |
0.1
to 40,000
lux
-20
to 40°C (internal sensor)
-20 to 750°C (external sensor)
35
to
95% r.h.
35 to 130dB |
Resolution
- Light
- Temperature
-
Relative humidity
- Sound |
0.1
lux
0.1°C
0.1%
r.h.
0.5dB |
Accuracy
-
Light
- Temperature
- Relative humidity
- Sound |
±3% +10 dgt
±3% +3 dgt
±5%
±3.5dB |
|
Display |
LCD with
function indicator |
| Interface |
RS-232 |
| Software |
Windows 95, 98,
2000, XP and NT
(included) |
|
Operating
temperature |
0 to 50°C |
|
Operating
humidity |
20 to 95% r.h. |
|
Power |
9V battery |
|
Enclosure |
ABS plastic |
| Dimensions |
121 mm x 61 mm x
40mm |
|
Weight |
150g |
Contents
PCE-222 thermometer, software,
external temperature sensor (external
wire),
test cables (for resistance), battery,
rubber cover and user's manual |
Optional components
- external temperature sensor
- RS-232 to USB adaptor |
 |
 |
|
Here you will find an overview of all the measuring instruments
available at PCE Group. |
