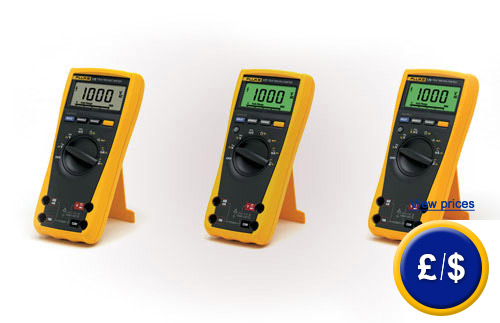

TRMS Digital Multimeter FLUKE 175 / FLUKE 177 / FLUKE 179
TRMS Digital Multimeter up to 1000 V and 10 A / TRMS up to 99.99 kHz / high precision Auto Range / MAX. MIN, and AVE function / warning from dangerous voltages

The TRMS Digital Multimeter of the FLUKE 170 series FLUKE 175, FLUKE 177 and FLUKE 179 stand out due to their robust design and their simple operation. The FLUKE TRMS Digital Multimeter provide all functions that are required for professional operations with  TRMS Digital Multimeter. The TRMS Digital Multimeter FLUKE 175 is equipped with all common measuring functions. The display indicates the measured values with up to 6000 digits. Besides the numeric display all TRMS Digital Multimeters are equipped with a barograph with 33 segments for a better coordination of the measured values in-between the automatically selected measuring range of the FLUKE TRMS Digital Multimeter. The next higher TRMS Digital Multimeter of the FLUKE 170 series is the FLUKE 177 Multimeter. That TRMS Digital Multimeter is equipped with all the same measuring functions as the FLUKE 175, but it has additionally a background light for its display. That qualifies the FLUKE 177 TRMS Digital Multimeter for dark environments as an indispensable tool. The FLUKE 179 TRMS Digital Multimeter, the largest model of the TRMS Digital Multimeter FLUKE 170 series features also measuring temperatures of up to 400 °C via its thermal element. All TRMS Digital Multimeters of the FLUKE 170 series perform True RMS. Also the FLUKE 175 as well as the FLUKE 177 and FLUKE 179 support a Smoothing function. Furthermore all TRMS Digital Multimeter of the FLUKE 170 series warn the user as soon as there are voltages of more than 30 V applied. The robust and ergonomic enclosure of the TRMS Digital Multimeter FLUKE 175, FLUKE 177 and FLUKE 179 are equipped with a rubber protection. For a fuse change at the TRMS Digital Multimeter of the FLUKE 170 series an opening of the entire enclosure is contraindicated. The life long guarantee of the TRMS Digital Multimeter FLUKE 175, 177 and FLUKE 179 qualify the TRMS Digital Muiltimeter as a device that should not miss in any elctrician's or service technician's tool bag. If there are any questions about this TRMS Digital Multimeter of the FLUKE 17x series, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all multimeters and all products in the field of measuring instruments, regulation and control and scales

 Digital Multimeter  FLUKE 17x  User manual for the  Digital Multimeter  FLUKE 17x  EC certificate for the  Digital Multimeter  FLUKE 17x  Video for the  Digital Multimeter  FLUKE 17x   Digital Multimeter  FLUKE 17x 20 further Images  Technical specifications of the  Digital Multimeter  FLUKE 17x

TRMS Digital Multimeter FLUKE 17x series

- TRMS measurement up to 1000 V and 10 A
- 6000 digit LCD
- Auto Range
- MAX, MIN and AVE record

- Smoothing function
- Warning in case of voltages > 30 V
- Continuity check and diode's test
- Fuse change without screws

Technical Specifications

Function

MAX value

Resolution

FLUKE 175

FLUKE 177

FLUKE 179

DC V

1000 V

0.1mV

± (0.15 % + 2)

± (0.09 % + 2)

± (0.09 % + 2)

AC V

1000 V

0.1 mV

± (1.0 % + 3)

± (1.0 % + 3)

± (1.0 % + 3)

DC A

10 A

0.01 mA

± (1.0 % + 3)

± (1.0 % + 3)

± (1.0 % + 3)

AC A

10 A

0.01 mA

± (1.5 % + 3)

± (1.5 % + 3)

± (1.5 % + 3)

Resistance

50 MΩ

0.1 Ω

± (0.9 % + 1)

± (0.9 % + 1)

± (0.9 % + 1)

Capacity

10000 µF

1 nF

± (1.2 % + 2)

± (1.2 % + 2)

± (1.2 % + 2)

Frequency

100 kHz

0.01 Hz

± (0.1 % + 1)

± (0.1 % + 1)

± (0.1 % + 1)

Temperature

-40 ... 400 °C

0.1 °C

-

-

± (1.0 % + 10)

Diode test





yes

yes

yes

Continuity Test





yes

yes

yes

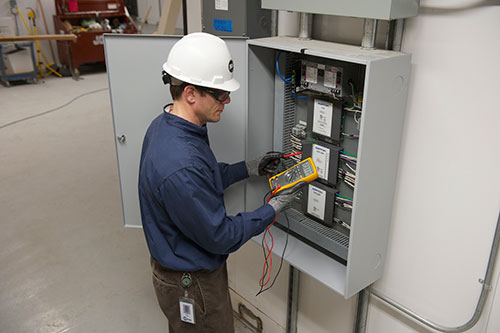

FLUKE 175 in areas of network technology
The TRMS Digital Multimeter FLUKE 175 in areas of network technology

General Technical Specifications

Display

6000 digits LCD (4 Hz updating)

Barograph with display

33 segments (40 Hz updating)

Display lights

only FLUKE 177 and FLUKE 179

Measuring range selection

automatic and manual

Hold function

Display Hold and Auto Hold

Measured value function

Max, min, average, and , max- / min- warning

Value Smoothing

Smoothing for more stable values

Warning / Indication

In case of false connected conductors
in case of voltage > 30 V
low battery state

Dimensions

43 x 90 185 mm

Weight

approx. 420 g

Battery life time

approx. 200 hours without lights

Operation temperature

-10 ... 50 °C

Storage temperature

-30 ... 60 °C

Safety

CAT III 1000 V according to EN 61010-1

CAT IV 600 V according to EN 61010-1

Permission

UL, CSA, TÜV, VDE

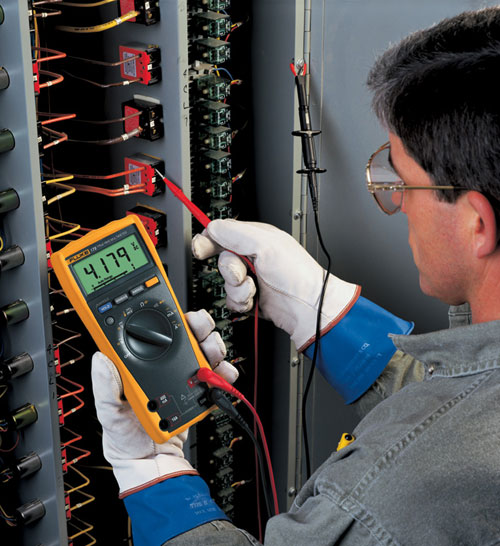

TRMS Digital Multimeter FLUKE 177 during maintenance
The TRMS Digital Multimeter FLUKE 177 during maintenance of a switch board

Delivery content

TRMS Digital Multimeter FLUKE 175

1 x TRMS Digital Multimeter FLUKE 175,
1 x Inserted 9 V battery,
1 x Conductor set,
1 x Instruction manual

TRMS Digital Multimeter FLUKE 175 delivery content

TRMS Digital Multimeter FLUKE 177

1 x TRMS Digital Multimeter FLUKE 177,
1 x Inserted 9 V battery,
1 x Conductor set,
1 x Instruction manual

TRMS Digital Multimeter FLUKE 179

1 x TRMS Digital Multimeter FLUKE 179,
1 x 80 BK Temperature sensor,
1 x Inserted 9 V battery,
1 x Conductor set,
1 x Instruction manual



TRMS Digital Multimeter FLUKE 179 Digital Multimeter

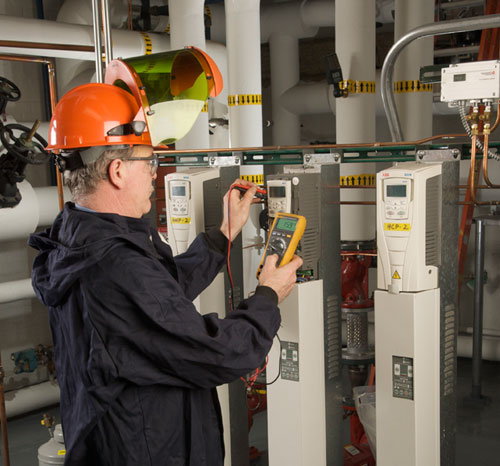

TRMS Digital Multimeter FLUKE 179 during maintenance
The TRMS Digital Multimeter FLUKE 179 during maintenance of a heating facility

Combi Kits of TRMS Digital Multimeter FLUKE 179

FLUKE 179/TPAK/EUR - Tool Pak Kit

1 x TRMS Digital Multimeter FLUKE 179

1 x TPAK ToolPak Kit to hang up



FLUKE 179 / TPAK / EUR  Tool Pak Kit

FLUKE 179/61 Multimeter with IR thermometer

1 x TRMS Digital-Multimeter FLUKE 179
1 x FLUKE 61 Infrared Thermometer
1 x C550 Equipment- and Equipment case

FLUKE 179/61 Multimeter with IR thermometer

FLUKE 179/MAG2 Kit- Industry Combo Kit

1 x TRMS Digital Multimeter FLUKE 179
1 x TL 224 Set SureGripTM Measuring conductors

1 x AC220 Set SureGripTM crocodile clamps

1 x TP74 sensor set with 4 mm tips

1 x TPAK magnet holder

1 x 80BK-A temperature sensor

1 x C35 Padded Digital Multimeter Case

+ MagLite torch light

FLUKE 179 / MAG2 Kit- Industry Combo Kit

FLUKE 179/EDA2 Kit - Elektronic Combo Kit

1 x TRMS Digital Multimeter FLUKE 179
1 x TL 224 Set SureGripTM Measuring conductors
1 x TL910 Electronic measuring tips set

1 x AC280 SureGripTM Suspension catch set

1 x TPAK Magnet holder

1 x 80BK-A Temperature sensor

1 x Pedded TRMS Multimeter Case

FLUKE 179/ EDA2 Kit Electronic Combo Kit

Recommended Equipment for TRMS Digital Multimeter FLUKE 175 / 177 / 179

i400 FLUKE current probe

Current Probe for FLUKE Multimeter

Measuring range: 5 ... 400 A AC

Output: 1 mA/A

Cable length: 1.5 m

Shielded banana plug



i400 FLUKE current probe

i410 FLUKE current probe

Current probe for FLUKE Digital Multimeter

Measuring range: 1 ... 400 A AC/DC

Output: 1 mV/A

Zero adjustment

Cable length: 1.6 m



i410 FLUKE current probe

i1010 FLUKE current probe

Current probe for FLUKE TRMS Multimeter

Measuring range: 1 ... 1000 A AC/DC

Output: 1 mV/A

Zero adjustment

Cable length: 1.6 m



i1010 FLUKE current probe

C90 FLUKE bag for Multimeter

Pedded bag for FLUKE TRMS Digital Multimeter. For protection during transport.



C90 FLUKE bag for Multimeter

TLK-220 Measuring set for FLUKE TRMS Multimeter

Measuring set consists of:

1 x AC220 Set SureGripTM crocodile clamps

1 x AC285 Set of large SureGripTM crocodile clamps

1 x TL 224 Set SureGripTM Measuring conductors

1 x Large Zip Bag



TLK-220 Measuring Set for FLUKE TRMS Multimeter

SV225 FLUKE Stray voltage adapter

Stray voltage adapter minimizes the capacitive influence of measuring conductors on the Digital Meter, minimizes measuring fault.



SV225 FLUKE stray voltage adapter

further information about the  Digital Multimeter  FLUKE 17x

return to homepage.

Similar products to the Digital Multimeter FLUKE 17x:

- Digital Mukltimeter FLUKE 190

  (ScopeMeter for error location up to 4 channels, max. 500 MHz Bandwidth)

ScopeMeter FLUKE 190

- FLUKE 27 II Digital Multimeter
  (extra robust device with IP 67 and all possible functions to perform error diagnostics)

FLUKE 27 II Digital Multimeter

- FLUKE 28 II Digital Multimeter
  (extra robust measuring device with IP 67, dust and waterproof for true-RMS)

FLUKE 28 II Digital Multimeter
