TRMS Multimeter FLUKE 233
TRMS Multimeter FLUKE 233 with removable display / 6000 digits / 1000 V AC/DC /
10 A directly measurable / MIN, MAX and AVE recording / thermometer function

The TRMS Multimeter FLUKE 233 with a removable display module makes the impossible possible: to be at two places at the same time. The removable display module of the TRMS Multimeter FLUKE 233 solves several problems at once: measurements at hard to reach locations and measurements on machines, or better dispositions that are some meters away from the control stations and switchboards. Values that are measured can be seen at a location that allows a better sight on the display and measured values. Due to radio technology the display of the TRMS Multimeter FLUKE 233 can be positioned up to 10 meters away from the measuring point. The FLUKE 233 TRMS Multimeter is furthermore designed for operation on such a location, where the operator is not allowed to stand near the measuring point, like clean rooms or safety critical rooms. The TRMS Multimeter is ideal for anyone who wants to have a robust, universally applicable TRMS Multimeter in his tool case. The TRMS Multimeter FLUKE 233 measures voltages in an AC / DC range of up to 1000 V. The electricity is determined by the TRMS Multimeter in a range up to 10 A directly. Of course there can be also measured higher currents by the TRMS Multimeter through optionally purchasable current transformers. Aside from these two functions the TRMS Multimeter FLUKE 233 adopts also measurements of resistance, capacity and diode voltage. Furthermore the FLUKE TRMS can be used for simple temperature gauging. The automatic measuring functions like MIN / MAX and AVE recording or the AUTO-RANGE function complete the high quality TRMS Multimeter FLUKE 233. If there are any questions about this TRMS Multimeter FLUKE 233, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all multimeters and all products in the field of measuring instruments, regulation and control and scales

 TRMS Multimeter  FLUKE 233  User manual for the  TRMS Multimeter  FLUKE 233  EC certificate for the  TRMS Multimeter  FLUKE 233  Video for the  TRMS Multimeter  FLUKE 233   TRMS Multimeter  FLUKE 233 20 further Images  Technical specifications of the  TRMS Multimeter  FLUKE 233

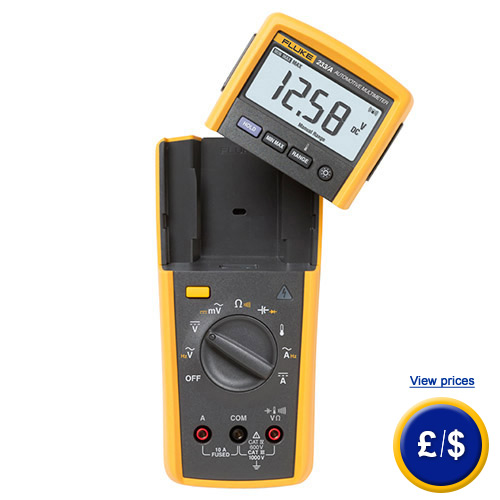

TRMS Multimeter FLUKE 233

- Removable display module
- Display-HOLD and AUTO-HOLD function
- Warning at voltages above 30 V
- Adjustable automatic switch-off
- 6000 digits

- TRMS measurement
- MIN, MAX and AVE recording
- Temperature measurement
- Resistance and capacity measurement
- Diode test

Technical Specifications

Measuring function

MAX measuring range

MAX resolution

Accuracy (from value)

DC voltage

1000 V DC

0.1 mV

± (0.25 % + 2 digits)

AC voltage

1000 V AC

0.1 mV

± (1 % + 3 digits)

Direct current

10 A DC

1 mA

± (1 % + 3 digits)

Alternating current

10 A AC

1 mA

± (1.5 % + 3 digits)

Resistance

40 MOhm

0.1 Ohm

± (0.9 % + 1 digits)

Capacity

9999 µF

1 nF

± (1.9 % + 2 digits)

Frequency

50.00 kHz

0.01 Hz

± (1 % + 10 digits)

Temperature

- 40 °C ... +440 °C

0.1 °C



Measuring function FLUKE 233

TRMS, MIN, MAX, AVE

General Technical Specifications

Removable display

6000 digit LCD display with background light

Transfer frequency device <-> display

2.4 GHz in ISM band

Transfer range

max. 10 m

Battery life time device and display

400 hrs

Voltage Supply device

3 x AA 1.5 V battery

Voltage Supply display

2 x AA 1.5 V battery

Weight

approx. 600 g

Dimensions

193 x 93 x 53 mm

Guarantee

3 years

Safety

CAT IV 600 V
CAT III 1000 V

TRMS Multimeter FLUKE 233 application

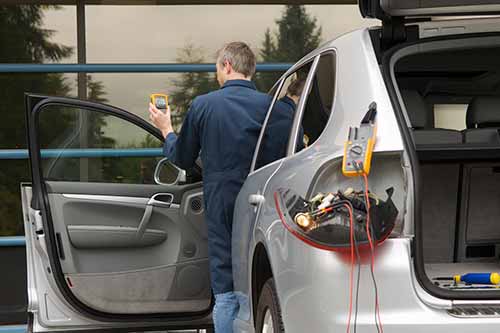

The TRMS Multimeter FLUKE 233 during checking voltage of brake light

Delivery Content

1 x TRMS Multimeter FLUKE 233, 2 x measuring conductors with sharpened banana sockets, 2 x crocodile clamps AC172, 1 x temperature sensors 80BK-A, 1 x CD ROM, 5 x AA batteries 1.5 V, 1 x guidebook

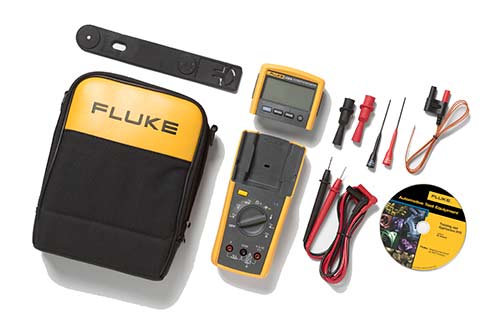

TRMS Multimeter  FLUKE 233 delivery content

Delivery Content of FLUKE 233 (case and strap excluded from delivery)

Optional Equipment

Current Probes and current shunt for FLUKE 233

i1010

Direct and alternating current probe

i2000

flex alternating current probe

i200s

Alternating current probe

i3000

Alternating current probe

i410

Alternating and direct current probe

Case and holster for FLUKE 233 TRMS Multimeter

C116

Padded Case

C280

Softcase

C35

Padded Carry Bag

TPAK

ToolPak, Kit to hang up the TRMS Multimeter FLUKE 233

Pressure sensor

PV350

Pressure- / vacuum module

Temperature measuring adapter for TRMS Multimeter FLUKE 233

80AK-A

Thermal element adapter

80PK-1

Blank thermal sensor type K

80PK-3A

Surface measuring sensor

Test cords

TL220

SecureGripTM industrial Measuring conductors

TL71

Simple Measuring conductor set

TRMS Multimeter FLUKE 233 application behind glass
The TRMS Multimeter FLUKE 233 is applied to perform correct measurements in safety critical ranges

TRMS Multimeter FLUKE 233 distant application
The TRMS Multimeter FLUKE 233 is applied to perform measurements at distant measuring points easily

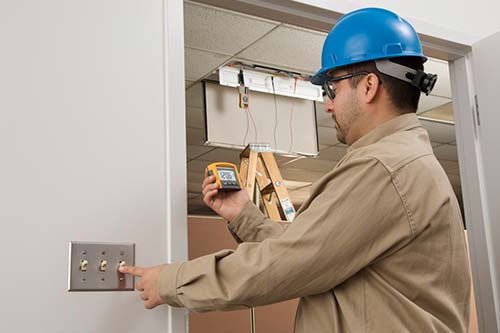

TRMS Multimeter FLUKE 233 electrical installations check
The TRMS Multimeter FLUKE 233 during checking on electrical installations
