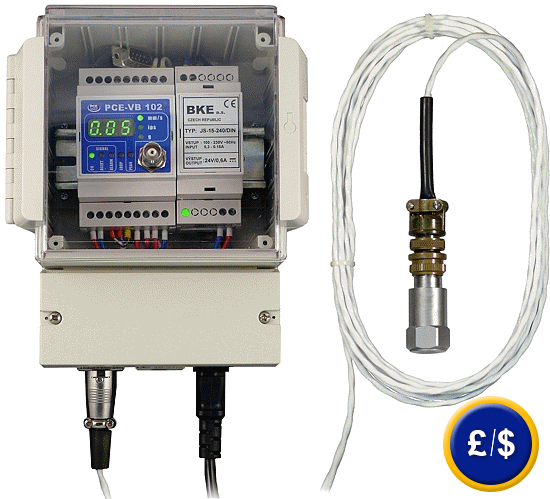

PCE-VB
102 vibration meter
vibration meter for the control of vibration
velocity /
free selection of both limit values and units mm/s or Inch/s
with relay output
|
|
The PCE-VB
102 vibration meter is a programmable device. The PCE-VB 102 has been specially
designed for measure movements in machines such as bombs, fans and hydraulic
turbine. The PCE-VB 102 vibration meter monitors vibration signals and show
both the RSM and peak values in mm/s or Inch/s. There are many causes and
sources of error in machine vibrations: pieces in motion disequilibrium,
fails in bearings, displacement of the axes and joints, wearing in gear
wheels, etc... The PCE-VB 102 vibration meter measures the vibration
amplitude which increases in relation to the revolutions. Since
machines work master everyday, it also increases the risk of vibrations which
can affect the machine performance. The LED display in the front of the
PCE-VB 102 vibration meter and the relay output allow for a quick and easy
usage. The BNC input in the front of the PCE-VB 102 vibration meter can
transfer a signal to a frequency analyzer. Here you will find dan overview of
all the vibration meters available at PCE-Group. At this
link, you can see
another vibration meter model to detect noises in machines and installations.
|
|
View / print user's manual
of the PCE-VB 102 vibration meter
|
|
- For the control of the vibration velocity
- Vibration sensor ICP
- Relay output |
- Easy to handle
- BNC output
- Units and limit values selection
|
|
Technical specifications |
|
Measurement range |
0 ...
20 g |
|
0 ... 999 mm/s |
|
Frequency range |
0,8 Hz
... 16 kHz [g] |
|
5 Hz ...
16 kHz [g] |
|
10 Hz
... 1 kHz [mm/s] |
|
Input |
acceleration sensor ICP 100 mV / g |
|
Output |
4 ... 20
mA, separated from galvanization
active / passive selection
limit values / units selection
|
|
Relay output |
switch
2 A
/ 250 V (50 Hz) |
|
Output signal |
± 5 V, BNC connection |
|
Power |
230 V / 50 Hz |
|
Dimensions |
185 x 160 x
115 mm |
|
Weight |
130
g |
|
Delivery contents
1 x PCE-VB 102 vibration meter, 1 x vibration sensor with 5m cable, user's
manual.
|
|
Uses of the PCE-VB 102 vibration meter
|
|
Here you can see the PCE-VB 102 vibration meter monitoring a vibration machine.
|
Here you can see the PCE-VB 102 vibration meter monitoring a compaction
machine.
|
|
Options available |
|
- ISO 9000 Calibration Certificate
For those companies that wishes to incorporate this vibration meter into
their internal quality control department or for annual recalibrations.
This certificate meets the DIN ISO standard and contains a certificate with
the values used for calibration. It also contains details for the company
that owns the device.
|
 |
 |
 |
|
