PCE-VD 3 Vibration Meter
Vibration meter with FFT analysis / measures axis acceleration / measurement range ±18 g / frequency range from 0 to 60 Hz / wall bracket

The PCE-VD 3 vibration meter is a miniaturized universal data logger with an included built-in three-axes acceleration sensor (X, Y, Z axis). The internal sensor of the PCE-VD 3 vibration meter has a measurement range of ±18g per axis. Acceleration force is measured along the X, Y and Z axes. Since the vibration meter is in motion while it is recording data, alterations are recorded for the three axes. The vibration meter can be placed anywhere due to its robust and magnetic bracket. Moreover due to its small size and light weight it can be used for many different applications like, for instance, shipment control. Furthermore the vibration meter can be used for sports, medicine or for recording of movements of 1 to 3 axes. The vibration meter can be easily programmed through software. All data can be sent to a PC or laptop via the USB port easily and quickly. Here you can find an overview of all vibration meters and data loggers available at PCE Instruments. For further information about the PCE-VD 3 Vibration Meter, please read the following technical data or call our Hotline: +44 (0)2380 987030. Our engineers and technicians will gladly advise you with the PCE-VD 3 Vibration Meter or any other product in the field of regulation and control or scales and balances of PCE Instruments.

Manual of the PCE-VD 3 Vibration Meter  EC certificate for the PCE-VD 3 Vibration Meter  Video for the PCE-VD 3 Vibration Meter  PCE-VD 3 Vibration Meterr: Software.  Technical specifications for the PCE-VD 3 Vibration Meter

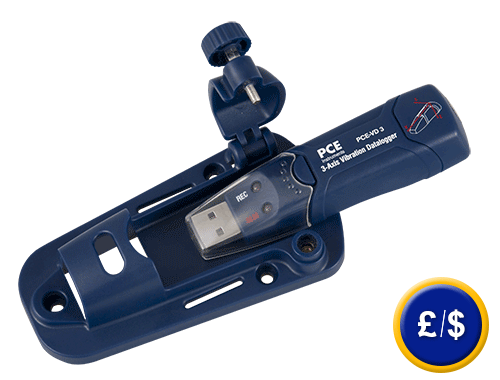

The PCE-VD 3 vibration meter is a miniature universal data logger with a built-in three-axis acceleration sensor.

- Software included
- USB port
- Lightweight

- Stand included
- Storage capacity: 4 Mbit (85764 records)
- Magnetic wall mount

Technical Specifications

Measurement Range

±18 g

Accuracy

± 0.5 g

Resolution

0.00625 g

Measurement Rate / Record Interval

1 second to 24 hours

Memory

4 Mbit (85764 records)

Frequency Range

0 ... 60 Hz

Interface

USB

Operating Conditions

0 ... 40 ºC / 10 ... 90 % H.r.

Dimensions

95 x 28 x 21 mm

Dimensions of the Wall Bracket

106 x 56 x 33.5 mm

Battery Indications

By means of two LEDs
(record in process / alarm)

Power Supply

Interchangeable 3.6 V lithium battery

Software

from Windows XP (also in 64 Bit version)

Placing

by means of the stand included in the delivery

Examples of use of the PCE-VD 3 vibration meter

Here you can see the PCE-VD 3 vibration meter being used for the control and analysis of machinery
Here you can see the PCE-VD 3 vibration meter being used for the control and analysis of machinery.

Here you can see the PCE-VD 3 vibration meter with the robust, magnetic and easy wall mount
Here you can see the PCE-VD 3 vibration meter with the robust, magnetic and easy wall
bracket.

Software

Here you can see the professional software for the reading and programming of the PCE-VD 3 vibration meter.

Software for the PCE-VD 3 vibration meter

The software allows the user to set the parameters and analyze measured values on the PC.

Delivery contents
1 x PCE-VD 3 vibration meter, 1 x wall bracket, 1 x battery, 1 x software, 2 x screws and instructions
