Visual IR Thermometer (Thermal Camera) FLUKE VT02
Visual IR Thermometer, similar to a thermal imaging camera with sophisticated equipment including software / temperature measuring range from -10 °C to +250 °C / 4 AA-batteries für 8 hours of continuous use / hot and cold marks / with exclusive NEAR/FAR-function

The Visual IR Thermometer VT02 is as practical as a point wise measuring thermometer, while providing the benefits of the visual features of a thermal imaging camera. This creates a completely new measuring instruments category- a camera for troubleshooting with infrared heat map. Many customers want to purchase not only a simple IR thermometer, but a combination of an IR thermometer and a thermal imaging camera. It is important to them, that the main field, which lies round around the point of measurement, is displayed. This advantage has usually only a thermal imaging camera. Thus has the FLUKE VT02 a function of representing the temperature of the environment, as it can otherwise only be achieved by a thermal imaging camera. Therefore combines the FLUKE VT02 all important features that are required to measure temperatures at a certain distance. This visual IR thermometer is an inexpensive alternative to thermal imaging cameras and is used in areas, where one does not necessary need an expensive thermal imaging camera with many additional features. Until now, cross-fading for example, could only be performed by thermal imaging cameras, this function can now be fulfilled by the FLUKE VT02 at significantly lower prices. The Visual IR Thermometer (Thermal Camera) FLUKE VT02 gives you a clear picture, where you can see exactly what you are measuring. Whether you work as an electrician, climate technicians or in the automotive industry, the industrial- or general maintenance, the Visual IR Thermometer FLUKE VT02 provides you extensive support. In comparison to a traditional IR thermometer, the FLUKE VT02 does not measure the average temperature of the surrounding area. Therefore the accuracy of the Visual IR Thermometer drops, depending on the distance to the object to be measured (the same applies for a thermal imaging camera). Alike a thermal imaging camera, the FLUKE VT02 automatically saves a cross-fading of the infrared- and visible image at every shot. The fact, that the Visual IR Thermometer is able to localize the heat source, emphasizes that the possible applications of the FLUKE VT02 are already very close to the possibilities of a thermal imaging camera. By marking hot / cold regions, the Visual IR Thermometer easily displays overheated or under-cooled areas. What is more, the transmission and analysis of readings by software on a computer is not included in the range of  features of other traditional ir thermometers. This function enormously helps in following diagnosis of measuring data. If you have questions about the Visual IR Thermometer (Thermal Camera), see the technical data below or contact us. Our technicians and engineers will be happy to advise you on this Visual IR Thermometer (Thermal Camera) or any other product on the field of regulation and control or scales and balances of PCE Instruments. If there are any questions about these products, please contact us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will be happy to help you with this force gauge and all other products in the field of measuring instruments, regulation and control and scales.

Here you can find further information of the Visual IR Thermometer (Thermalcamera) Fluke VT02   Usermanual of the Visual IR Thermometer (Thermalcamera) Fluke VT02   Ce-Certification of the Visual IR Thermometer (Thermalcamera) Fluke VT02   Videos of the Visual IR Thermometer (Thermalcamera) Fluke VT02    Further Images of the Visual IR Thermometer (Thermalamera) Fluke VT02   Technical specifications Visual IR Thermometer (Thermalcamera) Fluke VT02

Here you can find further information concerning the Visual IR Thermometer (Thermal Camera)

- Temperature measurement range -10 ... +250°C
- 8 hours continuous use
- Exclusive NEAR/FAR (Fluke function)
- Marks of hot and cold spots

- Professional SmartView® Software
- Professional reporting and image editing
- 4 x AA-batteries
- Fusion of thermal image and visual image

Specifications of the Visual IR Thermometer FLUKE VT02 (Thermal Camera)

Temperature measurement range

-10 ... +250 °C

Temperature measurement accuracy

±2 °C or ±2 % of the reading in C°, whichever is the greater (at 25 °C nominal) as tested

On-screen emissivity

Yes

On-screen reflected background temperature compensation

Yes

Imaging performance

Image capture frequency

8 Hz

Detector type

Uncooled Hyperthin Pyroelectric Ceramic

Infrared spectral band

6.5 µm ...14 µm

Minimum focus distance

50 cm (19.6 in)

Field of View

20 ° x 20 °

Image presentation

Palettes

Ironbow, Rainbow, Rainbow High Contrast, gray scale and inverted gray scale.

Level and span

Auto

Viewing options

Blending of the visulal and the infrared from full infrared to full visual in 25% steps.

Hot spot and cold spot tracking

Yes

Image capture and data storage

Image capture

Image will freeze allowing review before saving.

Storage medium

2 Gb Micro SD card.

File format

.is2-Format saved to SD card. When imported to included SmartView® reporting software user can create professional reports or images can be exported into multiple formats (BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF and TIFF).

Memory review

Scroll through all saved images and view on screen.

General Specifications of the Visual IR Thermometer FLUKE VT02 (Thermal Camera)

Operating Temperature

-10 ... +45 °C

Storage Temperature

-20 ... +60 °C

Relative humidity

10 % ... 90 % (non-condensing)

Display

Diagonal 5.6 cm (2.2 in)

Controls and adjustments

Select color palette user selectable temperature scale (°F / °C) time / date set emissivity selection reflected background temperature compensation.

Software

SmartView® analysis and reporting software, included

Batteries

4 AA

Battery life

8 hrs

Power saving

Power down after 10 minutes of inactivity.

Electromagnetic compatibility

CE EN61326-1:2006

US FCC

CFR47: 2009 Class A. Part 15 subpart B.

Drop

MIL-PRF-28800F; Class 2 section 4.5.5.4.2; 30 cm

Size (H x W x L)

21 cm x 7.5 cm x 5.5 cm (8.3in x 3in x 2.2in)

Weight (battery included)

< 300 gm

Delivery content of the Visual IR Thermometer FLUKE VT02 (Thermal Camera)

1 x Visual IR Thermometer (Thermal Camera), 1 x Hard case, 1 x Micro SD card, Micro SD conversion adapter to standard, 4 x AA/LR6-Batterien (4) 1 x Lanyard, 1 x Printed Quick Start guide (EN, FR, DE, ES, simplified Chinese), 1 x SmartView® analysis and reporting software CD, 1 x Manual and Quick Start Guide on CD (21 languages)

Application pictures of the Visual IR Thermometer FLUKE VT02 (Thermal Camera)

The set of the visual ir thermometer (thermal camera)
Here you can see the delivery content of the Visual IR Thermometer (Thermal Camera) in detail.

The thermal camera is a hand gauge which allows the user measuring out of every position
Image of the Thermal Camera taking a measurement at an air installation.

Here you can see the thermal camera during a measurement

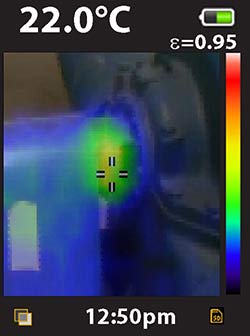

The temperature settings can be viewed on the scale on the right side of the Visual IR Thermometer (Thermal Camera).

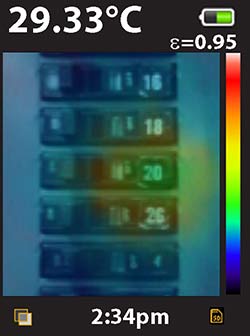

The hot / cold marks are clearly displayed on the display of the thermal camera
Here you can see the display of the Visual IR Thermometer, which is strongly reminiscent of the display of a thermal imaging camera.
