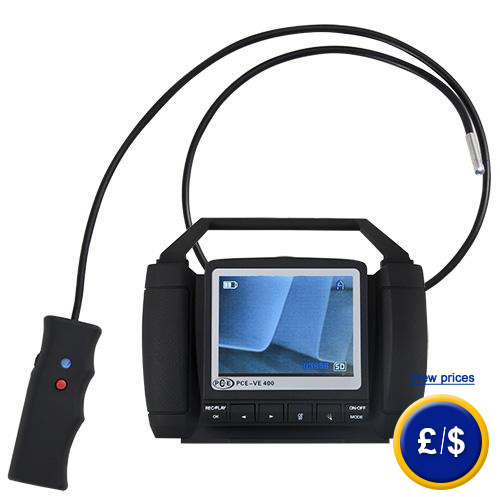

Wireless Video-Endoscope series PCE-VE 400
wireless video endoscope (useful length of 1 m) with LED illumination to inspect difficult places / 5.5 mm diameter / for inspections in automotion, health and the electronic sectors, etc. / memory integrated
|

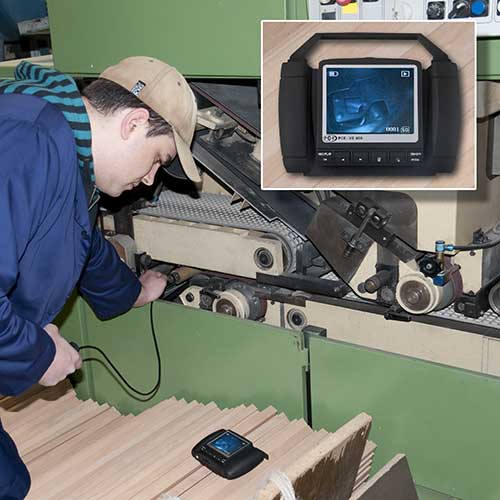

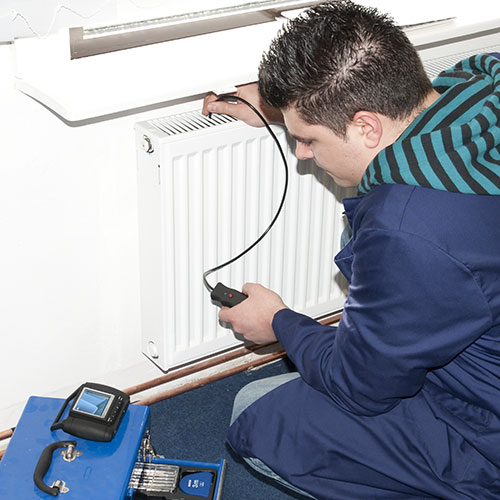

The new wireless video endoscope facilitates the search of errors in difficult places, like for example in revisions of engines, cleaning of old buildings, inspection of machinery, etc. Thanks to the transmission of images to the control mechanism in the wireless video endoscope, the user has much more mobility. The video endoscope has a work distance of up to 15 m with which you can examine hard to access places. It can also detect damages like locations of fissures, oxide, erosions, etc. The image of the wireless video endoscope is transmitted with a frequency of 2.4 GHz to a colour TFT screen of 3.5". Due to the separation of the video endoscope and the control mechanism, the user obtains an absolute flexibility which conventional endoscopes do not offer. By only pressing one button, it can register images and brief video sequences in an SD card for later documentation (e.g., for quality control). The shipment of the wireless video endoscope includes a connection cable of 1 m with protection IP67. The integrated illumination LED allows the user to identify any damage in spaces of difficult access. In case you have any questions about the wireless video endoscope, please consult the technical data bellow or contact us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will be pleased to advise you on this video endoscope and any other products of our regulation and control systems, meters or scales of PCE Instruments UK.
|
|
|
-
Wireless transference of images of 2.4GHz
-
High resolution colour camera- 3.5" Colour TFT Screen
-
IP67 Protection
-
1 m endoscope cable
-
5.5 mm cable diameter
-
Adjustments in the illumination head
-
Fast image and video recording - fast revision
-
Visualization of real time images
-
Operative for more than 2 hours in total work output
-
Designed for industrial use
-

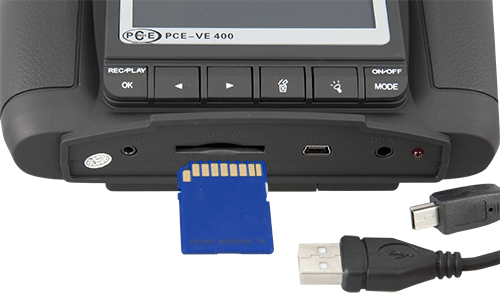

Data storage in SD memory card (not included in the shipment)
|
|
|
Technical specifications |
Flexible cable length
|
1,000 mm
|
Cable type
|
flexible
|
Cable diameter
|
5.5 mm
|
Field / vision angle
|
55º
|
Image sensor
|
CMOS
|
Minimum illumination
|
0 lx
|
Screen size
|
3.5 " TFT-LCD
|
Pixels
|
640 x 480
|
Video system
|
NTSC
|
Video connection
|
AV-out
|
Transmission frequency
|
2.4 GHz
|
Image format
|
JPEG
|
Memory
|
32 GB SD memory card
|
Vision distance
|
1 ... 10 cm
|
Light source
|
LED continuous adjustments
|
Operating temperature / storage temperature
|
-20 ... +60 °C
|
Power supply
|
handle (3.7 V accumulator)
LCD screen (3.7 V accumulator, net component)
|
Dimensions
|
100 x 30 x 25 mm
LCD 150 x 120 x 55 mm
|
|
|
Delivery content 1 x wireless video endoscope PCE-VE 400 (handle, probe and LCD screen)
1 x net component for display
1 x cable for video
1 x USB cable, 1 x PVC carrying case, 1 x user's manual
|
|
|
|
