 PCE-VMI electromagnetic flow transmitter
flow transmitter to measure all electrically conductive liquids / without any moving part / without mechanical wear / no additional pressure drop

The PCE-VMI electromagnetic flow transmitter can be used in the construction of machines and plants thanks to its compact design. The PCE-VMI electromagnetic flow transmitter is used where flow transmitters with moving parts cannot be used, as for instance vane flow transmitters, due to the dirt. The PCE-VMI electromagnetic flow transmitter is used for the continuous flow measurement or the dosage of electrically conductive liquids with a minimum conductivity of 50 μS/cm. The PCE-VMI electromagnetic flow transmitter operates according to the electromagnetic induction principle: The measurement tube is located on a magnetic field. If a conductive medium flows through the measurement tube perpendicular to the magnetic field, a strength proportional to the mean flow velocity is induced to the medium and it is captured by two electrodes. As signal output, a proportional frequency to the flow is emitted. In case you had any question on the electromagnetic flow transmitter, consult the technical data next or contact  us: +44 ( 0 ) 2380 98703 0 . Our technicians and engineers will advise you on this ultrasonic flow transmitter or any other product our regulation and control systems, meters or scales of PCE Instruments.

View or print user's manual of the electromagnetic flow transmitter CE certificate for the electromagnetic flow transmitter Video for the electromagnetic flow transmitter Data sheet for the electromagnetic flow transmitter Prices for the electromagnetic flow transmitter

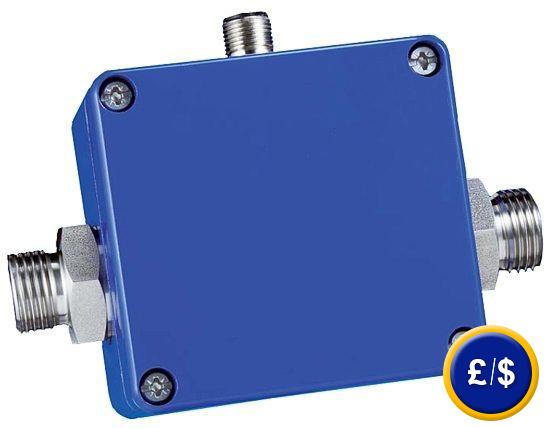

PCE-VMI electromagnetic flow transmitter to measure all electrically conductive liquids.

PCE-VMI electromagnetic flow transmitterr

- Without moving parts

- No mechanical wear

- Free tubular section

- No additional pressure drop

- Resistant to dirty liquids

- Inspections are not required

- Quick response (<500 ms)

- Minimum requirements in the duct entry.

Technical specifications
Model VMI 7 VMI 10 VMI 20
Measurement range 1 ... 20 l/min

2 ... 40 l/min

10 ... 180 l/min
Accuracy ±2 % of the measurement value ±1 % of the measurement value ±2 % of the measurement value
Sending a signal from

approx. 0,5 l/min

approx. 1 l/min

approx. 5 l/min

Repeatability

2 %

1 %

2 %

Media conductivity

Water and other conductive liquids  / 50 µS/cm
(lower conductivities affect to the measurement accuracy)

Media temperature max. 75 ºC
Environmental temperature 5 ... 70 ºC
Nominal pressure PN 16
Nominal diameter

DN 7

DN 10

DN 20

Connection type G 1/2"-ISO 228 external

G 1/2" -ISO 228 external

G 1"-ISO 228 external

flow indication

green LED, proportional to the flow

Output signals
Pulse repetition frequency 855 pulses/l

855 pulses/l

200 pulses/l
Resolution 1.2 ml/pulse 1.2 ml/pulse 5 ml/pulse
Waveforms  NPN rectangular signal open collector, working cycle 50:50  NPN rectangular signal open collector, working cycle 50:50 NPN rectangular signal open collector, working cycle 50:50
Signal intensity max. 20 mA, limited current max. 20 mA, limited current max. 20 mA, limited current
Maximum Pull-up voltage

30 VDC

30 VDC

30 VDC

Optional:
 4 ... 20 mA analog output (with additional cost)
General specifications
Response time <500 ms
Electrical connection  M12x1 connector
Power supply 24 VDC ±10 %
Input current maximum 80 m
Counter measurements over voltage resistant (up to 30 V) and protected against polarity reversal (up to -30 V)
Protection type IP 65

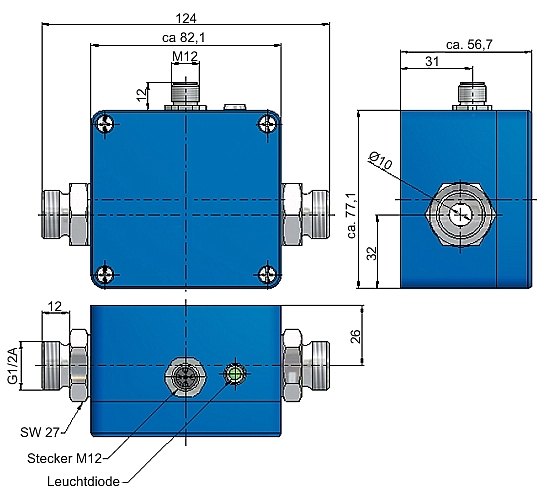

Dimensions of the VMI 7 and VMI 10 electromagnetic flow transmitter

Dimensions of the VMI 7 and VMI 10 electromagnetic flow transmitter

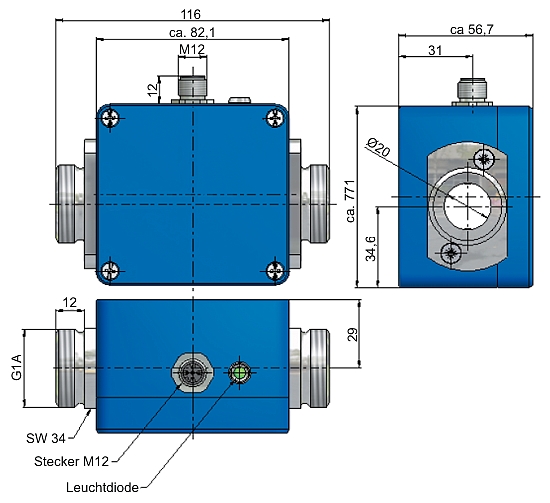

Dimensions of the VMI 20 electromagnetic flow transmitter

Dimensions of the VMI 20 electromagnetic flow transmitter

Delivery contents
1 x PCE-VMI electromagnetic flow transmitter, user's manual

Additional accessories

- Factory calibration certificate
For companies that wish to include the PCE-VMI ultrasonic flow transmitter inside their set of internal quality tools. This factory calibration certificate includes a laboratory calibration and a certificate containing all measurement values.

 PCE-VMI electromagnetic flow transmitter: ISO calibration certificate

technical specifications for the PCE-VMI electromagnetic flow transmitter
