PCE-N20T temperature indicator
Temperature indicator with direct connections to Pt100 sensors / IP 65 protection at the front / 5 digits display / 2 alarm outputs / configuration by a software

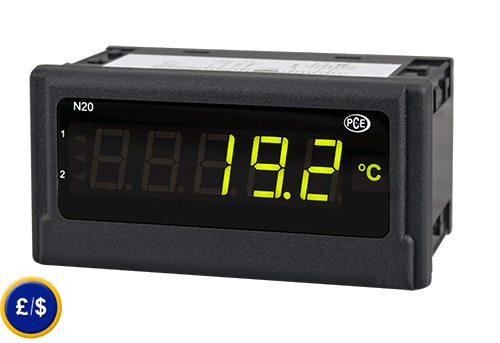

The PCE-N20T temperature indicator receives and process signals from Pt100 temperature sensors. The two or three wire resistance sensor is connected to the PCE-N20T temperature indicator. Current measured values can be read in the 5-digit LED display. According to the measured value, there are up to three different colors in the display of the PCE-N20T temperature which allows for a quick valuation of the measurement value. The PCE-N20 T temperature indicator has two alarm outputs which send an alarm when limit values are exceeded. The setting-up of both alarm limits and thresholds to change the color of the display are carried out by the LPCon software. With this software the current configuration of the PCE-N20T temperature indicator can be read. Settings can be recorded for further analysis or they also can be sent to other temperature indicators. The software of the PCE-N20T temperature indicator also allows to scale the indicated value to analyze specific resistance sensors. The PCE-N20T temperature indicator is connected to a PC through the PCE-PD 14 optional programming adapter which is also connected to the USB port The PCE-N20T temperature indicator is available in two different versions depending on the power supply (230 V or 24 V). At the following link you will find other temperature indicators and indicators.

View / print user's manual of the PCE-N20T temperature indicator

- IP 65 at the front

- For Pt100 sensors

- Connection through a screw terminal

- Display: three colors

- Configuration via the USB port

- 5-digits LED display

Technical specifications

Input

-50 ... +400 ºC

Measuring current

±(0,2 % FS + 1 digit)

Scale

2 points

Average value time

0.5 ... 20 s

Outputs

2 x open collector, 30 V, 20 mA

Display

5-digits and 7-segment LED display, height:14 mm, three colours

Indication range

-19999 ... 99999

Temperature

Operating temperature: -10 ... +55 ºC
Storage temperature -25 ... +85 ºC

Maximum air humidity

<95 % non-condensing

Dimensions

96 x 48 x 64 mm

Dimensions for panel installation

92 x 45 mm (according to DIN)

Power supply voltage
PCE-N20T-1
PCE-N20T-2

85 ... 253 V AC/DC
20 ... 40 V AC/DC

Absorbed power

<6 VA

Protection

Front: IP 65

Weight

<250 g

Mounting

mounting clips with clamping screws, connection by means of terminal strips

Casing

robust plastic

The PCE-N20T temperature indicator is electrically connected by a screw terminal placed at the backside. On the PCE-N20T temperature indicator case you will find an overview of all the connections to allow a quick and safe installation in situ. The interface (PD14) of the PCE-N20T temperature indicator is also placed here. It is a RJ-11 connector. The programming adapter is used with the USB port.

Delivery contents

1 x PCE-N20T temperature indicator (1 or 2), fixing material, joint and user's manual.

Versions of the PCE-N20 T temperature indicator
PCE-N20T-1
PCE-N20T-2

Power supply 85 ... 253 V AC/DC
Power supply 20 ... 40 V AC/DC

Optional accessories
-PCE-PD 14 programming adapter
To set the parameters of the PCE-N20T temperature indicator it is required a PCE-PD 14 porgramming adapter. By means of the software (included in the delivery), the PCE-N20T temperature indicator can be set through USB port.
