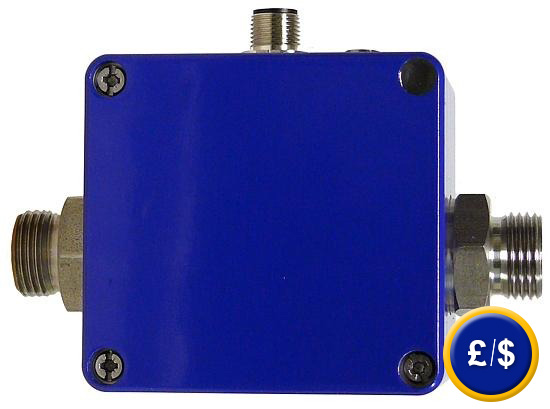

PCE-VUS ultrasonic flow transmitter
ultrasonic flow transmitter to measure different liquids speed, as for instance water / insensible to shocks and solid objects in the environment

The PCE-VUS ultrasonic flow transmitter is a non-contact measuring sensor. This device is the ideal flow sensor when both duration and resistance are crucial. It allows a precise detection of flow without counting moving pieces. The PCE-VUS ultrasonic flow transmitter is the essential gauge while measuring moving parts as for example winged wheels. The liquid flows through a straight stainless steel tube isolated from any external element. The ultrasonic transmitter is placed outside the pipe and it has no contact with the environment. The measuring principle of the PCE-VUS ultrasonic flow transmitter is based on the ultrasonic transit time. There are two ultrasonic devices located in the external measurement tube. Both transducers are used as transmitter and receiver, sending an ultrasonic signal in the current direction and then in the opposite way. The difference between both ultrasonic speeds is proportional to the main flow velocity. If you have any question on the ultrasonic flow transmitter, see the technical data below or contact  us: +44 ( 0 ) 2380 98703 0. Our technicians and engineers will advise you on this ultrasonic flow transmitter or any other product our regulation and control systems, meters or scales of PCE Instruments.

View or print user's manual of the ultrasonic flow transmitter CE certificate for the ultrasonic flow transmitter Video for the ultrasonic flow transmitter Data sheet for the ultrasonic flow transmitter Prices for the ultrasonic flow transmitter

 PCE-VUS ultrasonic flow transmitter to measure different liquids velocity, as for instance water

 - Without any moving part

 - Only one element which makes contact but is       chemically resistant (stainless steel)

 - 4 ... 20 mA output

 - Shock resistant

 - Alarm output

 - Quick response

 - Ideal for non-conducting liquids, for instance         distilled water.

 - With frequency output

 - No mechanical wear

 - Independent to the input and output route and         the installation situation

Technical specifications
Measurement range 1.5 ... 30 l/min
Accuracy 3 ... 30 l/min ±4 % of the measurement value
1.5 ... 3 min ±8 % of the measurement value
Signal output from 1 l/min
Maximum flow 33 l/min
Repeteability 1 %
Environment Water and acquous solution
Environmental temperature 5 ... 60 ºC
Operating temperature 5 ... 60 ºC
Nominal pressure PN 16
Nominal diameter DN 10
Waveforms PNP or NPN
Connection G 1/2" or G 3/4" ISO 228
Flow and alarm indication green/red LED
Connection material stainless steel 1.4404
Measuring tube material stainless steel 1.4404
Case material cast aluminum
Output signal
Pulse repetition frequency 855 pulses/l
Waveforms rectangular signal PNP or NPN
signal intensity max: 100 mA, protected against short circuits
Maximum Pull-up voltage 30 VDC
Current output signals 4 ... 20 mA, according to Namur NE43
Flow equal to 0 ... 30 l/min
Temperature equal to 0 ... 60 ºC
Alarm signal

- Alarm when is under the low limit value or if there is some air inside the measurement tube.
- PNP open collector, max. 100 mA protected against short circuits
- 16 selectable switching points by means of a rotary switch.

Electrical information
Electrical connection  5-Pin M12x1 connection
Supply voltage/input current 10 ... 30 VDC/max. 80 mA
Electrical countermeasure protected against short circuits up to 30 V, protected against polarity reversal up to  -30 V
Protection type

IP 54

Dimensions

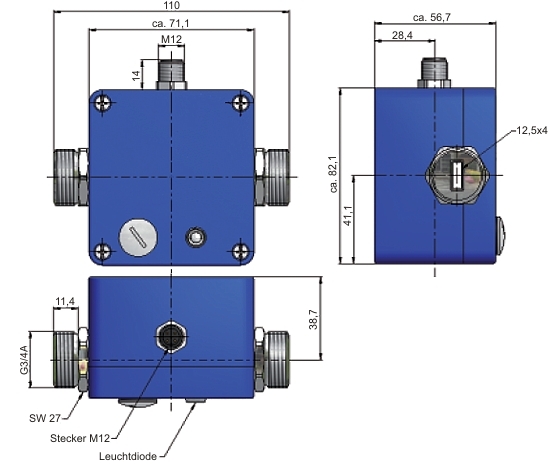

PCE-VUS ultrasonic flow transmitter: Dimensions

Delivery content
1 x PCE-VUS ultrasonic flow meter, user manual

Product number
Pulse signal PNP
NPN
PCE-VUS-P
PCE-VUS-N
--- ---
Analogue output Flow 0 ... 30/min.
Temperature 0 ... 60 ºC
--- D
T
---
Connection G 1/2" external bolt thread
G 3/4" external blot thread
--- --- G 1/2
G 3/4
Example of an order

 PNP sampling signal, flow 0 ... 30 l/min; G 1/2" external bolt thread
PCE-VUS-P-D-G1/2

Optional accessories

- Factory calibration certificate
For companies that wish to include the PCE-VUS ultrasonic flow transmitter inside their set of internal quality tools. This factory calibration certificate includes a laboratory calibration and a certificate containing all measurement values.

 PCE-VUS ultrasonic flow transmitter: ISO Calibration certificate.

technical specifications for the PCE-VUS ultrasonic flow transmitter.
