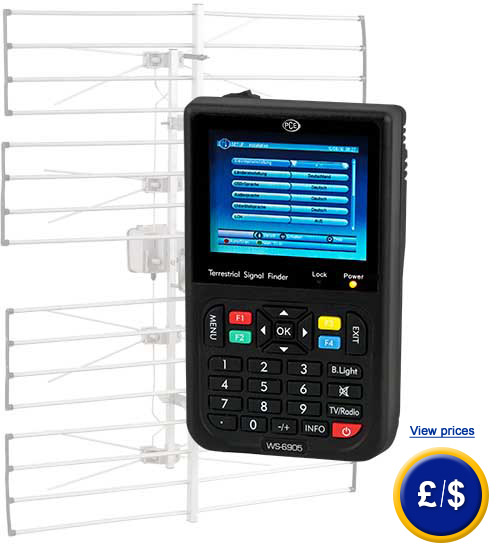

DVB-T Digital Meter WS-6905
DVB-T mobile meter with integrated speaker / indication of signal strength in percentage and bar graph / reception and TV programs and radio replay  / LCD TFT Color Display 3.5" diagonal (8.9 cm)

DVB-T WS-6905 Digital Meter is a simple handheld computer for digital terrestrial television. This digital meter is suitable for installing antennas and verifying the ones that are already installed. The built in speaker allow receiving and replaing audio radio programs and television. All functions and data are shown on the big 3.5 " LCD display. The DVB-T WS-6905 digital meter does not require any external power as it integrates a battery that allows a mobile use. The signal strength is described in the DVB-T digital meter as a percentage value or bar graph. By using an adapter cable you can connect the DVB-T WS-6905 meter to a TV and use it as a Freeview receiver. The DVB-T Digital Meter also offers the ability to update the firmware via USB stick, see pictures in jpg format and listen to MP3 audio files found on the USB stick. You can find other satellite locators if you follow this link.

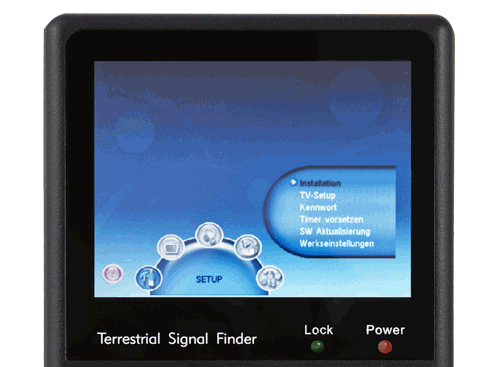

- TFT color LCD screen of 3.5" (8.9 cm)
- Integrated speakerphone
- Indication of signal strength as a percentage
  and bar graph
- Automatic search of TV channels and radio
- Reception and replay of TV DVB programs
- Reception and replay of DVB-T radio
  programs
- Ability to use the meter as a TDT receptor
- The device can be connected by means of an
  adapter cable to a TV and be used as a
  common DVB-T receiver

- Teletext
- EPG
- Li-Ion integrated accumulator
- Firmware Upgrade via USB stick
- USB Memory: Playing MP3 files and jpg image   files stored on the USB stick
- Calendar
- Calculator
- 12 languages (Spanish, German, English,          French, Portuguese, Italian, Dutch, Danish,         Swedish, Finnish, Greek and Turkish)

Technical specificactions

Tuner

Antenna connection

Tipo IEC, connector IEC 169-2

Frequency range

75 ... 230 MHz (VHF)
470 ... 862 MHz (UHF)

Signal level

-40 dB/µV ~ 110 dB/µV

Demodulator

COFDM

Mode

2 K, 8 K

FEC ( forward oriented error correction)

1/2, 2/3, 3/4, 5/6, 7/8

Band width

6 MHz, 7 MHz, 8 MHz

MPEG Transportstream,
A/V-Decoding

Transportstream

MPEG-2 ISO/IEC 13818

Profile level

MPEG-2 MP@ML

Input speed

max. 15 Mbit/s

Video resolution

720 x 576 (PAL)
720 x 480 (NTSC)

Audio decoder

MPEG / MusiCam / Layer I and II

Memory

SDRAM

16 MB

FLASH

8 MB

Video decoder

MPEG 2

Main Profile @ Main Level

Data speed

Up to 15 Mbits/s

Video resolution

720 x 576 (PAL)
 720 x 480 (NTSC)

Video format

PAL / NTSC / SECAM

MPEG Audio MPEG 1 layer 1 & 2

Type

Mono

Sampling frequency

32, 44,1 and 48 KHz

General observation

Port

USB

Languages

Spanish, German, English, French, Portuguese, Italian, Dutch, Danish, Swedish, Finnish, Greek and Turkish

Power supply

Li-lon battery
Voltage
Adapter

1950 mA/h
12.6 V
90 ... 240 V/AC 14.5 V/DC 1 A

Dimensions

95 x 155 x 45 mm

Ambient conditions

0 ... 40 ºC/≤801 % r.H.

Weight

500 g

Delivery content:
1 x DVB-T WS-6905 digital meter
1 x nylon carrying bag
1 x net adapter
1 x 12 V car charger
1 x A/V data cable with 3.5 jack to connector
      RCA
1 x user manual
