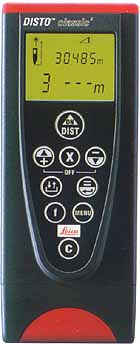

Lasermeter DISTO™ classic4
hand-held laser distance meter

The distance laser meter DISTO™ classic4 offers the extra features of height (pythagoras) calculation, continuous measurement for determining maximum room diagonals and minimum room horizontals. With expanded memory functions  this laser meter is perfectly suited for a broad range of measuring  applications including HVAC, painting, plastering, floor covering (ideal for determining quantities of such things as wall and floor covering) and many others.
This hand-held laser meter measures distances from the selected position on the front, back or tripod thread of the unit with the help of positioning and aligning brackets.

The laser meter DISTO™ classic4 is mainly interesting for architects, painters, civil service & security, mapping, civil & structural engineering, building, machine control, land rehabilitation & landscaping, mining and other distance measuring professionals.

The multifunctional endcap enables this distance laser meter to measure not only from open areas, floors and edges but also from hard to reach corners. Measure minimum (automatic level) and maximum (automatic corner) distances from any point, determine heights, plus save and edit values. Determine room heights is easy. Individual measured values can be taken as the average room height and stored as a constant for each room. Ten values can be stored in this way.
 (DISTO is protected trademark of Leica Geosystems AG)

  • for indoor and outdoor distance measurement
  • extremely easy to use
  • determinate heights without climbing
  • robust, shockproof and waterproof
    (IP 54)
  • lightweight
  • displays digital measurements
    (distance, area, volume)
  • multifunctional endcap
  • incl. pythagoras function
  • fluorescent two line grafical display
  • saves constants
  • tracking
  • productively captures dimensions in any area and in any weather
  • measures quickly, accurately and safely
  • class 2 laser



The well known Distance Lasermeter Disto Classic4 with pythagoras function

technical data
distance measuring range: 0.3 m to over 100 m / 0.1 ft to over 330 ft
typical. precision: ± 3 mm / 0.1 in
resolution: 1 mm
measuring duration time: 0.5 sec to 4 sec,
0.16 sec to 1 sec (continous  measurement)
save constant: 10
laser: Class 2
laser point diam. in mm @ x meter: 6 mm @ 10 m, 30 mm @ 50 m,  60 mm @ 100 m
power: 4 x 1.5V mignon battery
total dimensions: 172 mm x 69 mm x 44 mm
weight: 360 g
norms: IEC825, EN60825-1 (635nm)
functions
distance measurement function of laser meter disto lite distance
                  measurement		 high accurate distance measurement function of laser meter disto lite high
                  accuracy		 area measurement function of laser meter disto lite area
                  measurement
volume measurement function of laser meter disto lite volume
                  measurement		 edge measurement function of laser meter disto lite possible
                  edge measurement		 tracking function tracking
pocket
                  calculator		 tripod mounting possible tripod
                  mounting		 constants can be stored in the laser meter constant
                  saver
you can change the constants at the laser meter constant
                  changer		 This Laser Meter allows tracking min distance
                   tracking		 This Laser Meter allows tracking max distance
                   tracking
multifunctional endcap of the distance laser meter multifunctional
                  endcap		 position
                  saver		 pythagoras function allows special calculations pythagoras
                   function
delivery
1 laser distance meter DISTO™ classic4, 4 batteries, 1 textile holster and instructions for use
