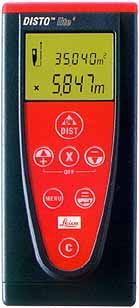

Lasermeter DISTO™ lite4
handheld laser distance meter

DISTO™ lite is the worlds smallest hand-held laser distance meter. The meter accurately measures distances and calculates areas and volumes. Fast, accurate and mistake -free the laser meter is at your hand. This hand-held laser meter measures distances from the selected position on the front, back or tripod thread of the unit with the help of positioning and aligning brackets.
The DISTO™ lite4 is mainly interesting for architects, civil service & security, mapping, civil & structural engineering, building, machine control, land rehabilitation & landscaping, mining and other distance measuring professionals.
(DISTO is protected trademark of Leica Geosystems AG)

  • for indoor and outdoor distance measurement
  • extremly easy to use
  • determinate heights without climbing
  • robust, shockproof and waterproof
    (IP 54)
  • lightweight
  • displays digital measurements
  • productively captures dimensions in any area and in any weather
  • measures quickly, accurately and safely
  • Laser Meter DISTO™ lite4 sets the standard in modern measuring.
  • fluorescent 2 lines display
  • Class 2 Laser (visable)
    •



The famous distance laser meter disto lite

technical data
distance measuring range: 0.3 - 100 m
typical. precision: ± 3 mm
resolution: 1 mm
measuring time: 0.5 sec to 4 sec,
0.16 sec to 1 sec (continous distance measurement)
laser: Class 2
laser point diam. in mm @ x meter: 6 mm @ 10 m, 30 mm @ 50 m,  60 mm @ 100 m
power: 4 x 1.5V mignon battery
total dimensions: 154 x 69 x 44 mm
weight: 360 g
norms: IEC825, EN60825-1 (635nm)
functions
distance measurement function of laser meter disto lite distance
                  measurement		 high accurate distance measurement function of laser meter disto lite high
                  accuracy		 area measurement function of laser meter disto lite area
                  measurement
volume measurement function of laser meter disto lite volume
                  measurement		 edge measurement function of laser meter disto lite possible
                  edgemeasurement		 tracking function tracking
pocket
                  calculator		 tripod mounting possible tripod
                  mounting		 Find the accurate range
of inaccessible objects
by using the laser meter
DISTO™ lite4
delivery
1 laser distance meter DISTO™ lite4, 4 batteries, 1 textile holster and instructions for use
