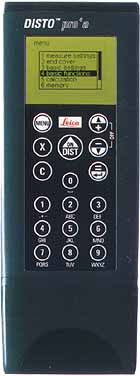

Lasermeter DISTO™pro4
hand-held laser distance meter with top accuracy

The distance laser meter DISTO™ pro4 offers extra features in calculation and measurement. Also this laser meter allows you to store up to 800 measured data. Later the data can be transferred via RS232- interface (delievery does not include the data interface cable) to a PC or portable (the distance meter saves your measured values with a text reference (attribute)). The data transfer software is included to provide fast and easy-to-use data transfer even while on the move.

The alphanumeric keyboard the first of its kind, is offered in pro4 and pro4a models.

With its expanded memory functions the laser meter is perfectly suited for a broad range of measuring applications including HVAC, painting, plastering, floor covering (ideal for determining quantities of such things as wall and floor covering) and many others.
This hand-held laser meter measures distances from the selected position on the front, back or tripod thread of the unit with the help of positioning and aligning brackets.
The laser meter DISTO™ pro4  is mainly interesting for architects, engineers and other distance measuring professionals.

The multifunctional endcap enables this distance laser meter to measure not only from open areas, floors and edges but also from hard to reach corners. Measure minimum (automatic level) and maximum (automatic corner) distances from any point, determine heights, plus save and edit values. Determine room heights is easy. Individual measured values can be taken as the average room height and stored as a constant for each room. Ten values can be stored in this way.
(DISTO is protected trademark of Leica Geosystems AG)

  • for indoor and outdoor distance measurement
  • extremely easy to use
  • determinate heights without climbing
  • robust, shockproof and waterproof
    (IP 54)
  • lightweight
  • displays digital measurements
    (distance, area, volume)
  • multifunctional endcap
  • incl. pythagoras function
  • four line alphanumeric LED display
  • saves constants
  • tracking functions
  • productively captures dimensions in any area and in any weather
  • measures quickly, accurately and safely
  • class 2 laser
  • 800 point internal datalogger
  • RS 232 interface for data tranfer to a PC
    or portable



Distance Laser Meter Pro for real professionals

technical data
distance measuring range: 0.3 m to over 100 m / 0.1 ft to over 330 ft
typical. precision: ± 3 mm / 0.1 in
resolution: 1 mm
measuring duration time: 0.5 sec to 4 sec,
0.16 sec to 1 sec (continous  measurement)
save constant: 9
laser: Class 2
laser point diam. in mm @ x meter: 6 mm @ 10 m, 30 mm @ 50 m,  60 mm @ 100 m
power: 4 x 1.5V mignon battery
total dimensions: 188 x 70 x 47 mm
weight: 440 g
norms: IEC825, EN60825-1 (635nm)
functions
distance measurement function of laser meter disto lite distance
                  measurement		 high accurate distance measurement function of laser meter disto lite high
                  accuracy		 area measurement function of laser meter disto lite area
                  measurement
volume measurement function of laser meter disto lite volume
                  measurement		 edge measurement function of laser meter disto lite possible
                  edge measurement		 tracking function tracking
pocket
                  calculator		 tripod mounting possible tripod
                  mounting		 constants can be stored in the laser meter constant
                  saver
you can change the constants at the laser meter constant
                  changer		 This Laser Meter allows tracking min distance
                   tracking		 This Laser Meter allows tracking max distance
                   tracking
multifunctional endcap of the distance laser meter multifunctional
                  endcap		 position
                  saver		 pythagoras function allows special calculations pythagoras
                   function
position memory included position
                  memory		 RS-232- connection for data transfer to a PC or portable RS 232 computer
                  interface		 alphanumeric keys alphanumeric
                  keyboard
delivery
1 lasermeter DISTO™ pro4, 1 software package, 4 batteries, 1 textile holster and instructions for use
