Test - Multi-purpose dosimeter PM1203-M

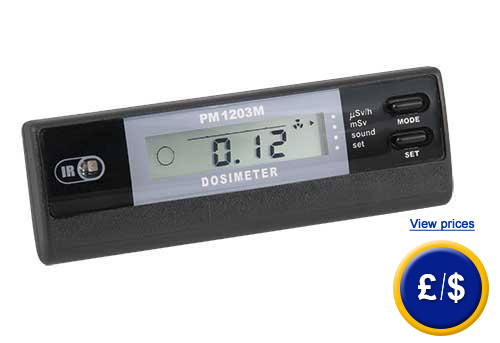

Test - Multi-purpose dosimeter PM1203-M Multipurpose dosimeter for measuring the ambient dose equivalent / internal memory / visual and audible alarm when crossing specified warning threshold values / Large LCD display with digital and analog scale
This low-cost multi-purpose dosimeter is ideal for solving problems in radiation protection safety. The universal Spezialdosimeter is intended for continuous monitoring of radiation situation and for the identification of ionizing radiation sources. The multi-purpose dosimeter PM1203-M is designed for a broad user group. These include security and protection agencies, scientists, medical personnel and other occupationally exposed persons. The Spezialdosimeter is an optimal solution for confident people who live in areas with elevated radiation levels. The internal memory of the multi-purpose dosimeter allows transmission of infrared measurements to a PC. When exceeding the dose and dose rate alarm thresholds an acoustic signal gives warning of danger. The multi-purpose dosimeter is CE certified and follows all international standards. If you have any questions about the multi-purpose dosimeter, look at the following technical data or use our contact form or call us. 01805 976 99 0 (14 min cents / from the landline, up 42 cents / min dt from the cellular network). Our technicians and engineers will assist you in regards to the thermometer or any other product on the field of control engineering, instrumentation, or the scales of the PCE Germany GmbH If you have any questions regarding the Dosimeter look at the following technical data or use our contact form or call us on: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will be happy to advise you regarding the Dosimeter e or any other product on the field of control engineering, instrumentation, or the scales of the PCE Germany GmbH


Technical specification
Detector:	Geiger-Mueller-counter tube
Measuring range of the dose rate:	0.1 to 2000µSv/h
Display range of the dose rate:	0.01 to 2400µSv/h
Adjusting range for dose rate thresholds: (Adjusting step)	0.01 to 1999.99µSv/h 0.01
Measuring range of the dose:	0.01 to 9999µSv
Adjusting range for dose thresholds: (Adjusting step)	0.01 to 9999.999µSv 0.001
Time range for dose measurement:	1 to 9999 hours
Tolerable uncertainties: Dose rate (H for dose rate equivalent in µSv/h) Dose	±(15 + 1,5/H + 0,0025H)% ±20%
Energy dependency for 0,662 MeV (Cs-137) at measuring dose and dose rate equivalent of photon radiation in the energy range of: 0.06 to 0.662 MeV 0.662 to 1.5 MeV	< ±25% < ±15%
Energy range:	0.06 to 1.5 MeV
Response time:	max. 10s
Power supply:	Two V357-batteries
Indication of running and critical battery charge:	Indication on display
Ambient temperature:	from -15 to +60°C
Additional option:	PC connection
Dimensions (L x W x H):	125 x 42 x 24 mm
Weight (incl. batteries):	90g
Delivery Detector: Geiger-Mueller counter tube, Measuring range of the dose rate: 0.1 to 2000μSv / h, display range of the dose rate: 0.01 to 2400μSv / h, Adjusting range for dose rate thresholds (Adjusting step 0.01): 0.01 to 1999.99 μSv / h
