Survey Meter SM 3D Survey Meter SM 3D portable dose Survey Meter for measuring the gamma radiation and ambient dose equivalent rate / ease of use / acoustic pulse signal / high range / compact housing

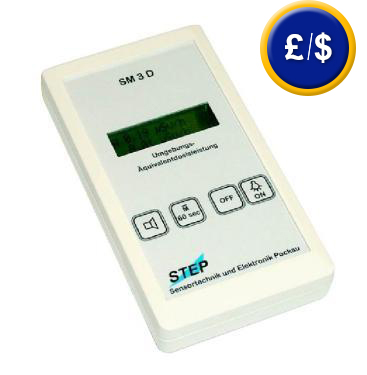

The portable equivalent dose-measuring device SM-3-D is intended for determining the ambient equivalent dose rate of gamma radiation. The operation of the dose equivalent meter SM-3-D is very simple, so that experience by the operator with the radiation-measuring equipment is not required. The compact design of the dose equivalent meter SM-3-D, enjoys great popularity by installers and technicians. Using a fast-test you can get an average of the current dose equivalent within a minute. The dose equivalent meter SM-3-D has an auditory pulse signaling, that you can view the decay rate acoustically. The detection of gamma-radiation with the equivalent dose-measuring device SM-3-D cn be found in many fields, such as environmental protection, construction, measurement technology, waste disposal, the waste recycling and much more. The dose equivalent meter SM-3-D is very versatile and supports the operator or engineer to take measurement of radiation potentials. Here is a list of equivalent dose-measuring instruments. If you have further questions have equivalent dose-measuring device SM-3-D, look at the following technical data or use our contact form. Our technicians and engineers will be very happy about our radiometer / radiation gauges or any other product on the field of control engineering, instrumentation, or the scales of the PCE Germany GmbH Sollten Sie weitere Fragen zum Survey Meter SM 3D haben, schauen Sie auf die folgenden technischen Daten oder nutzen Sie unser Kontaktformular oder rufen Sie uns an: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Unsere Techniker und Ingenieure beraten Sie sehr gerne bezüglich der Survey Meter SM 3D e oder allen anderen Produkten auf dem Gebiet der Regeltechnik, der Messgeräte oder der Waagen der PCE Deutschland GmbH.


- Very high dose rate measuring range: 0.1 μSv / h ... 999 μSv / h - Compact and clear - Ease of use - Backlight	- Large energy range for photons: 40 keV ... 1.3 MeV - Min averaging the dose rate over 1. - Auditory pulse signaling - Measurement of gamma-radiation
Technical specification
Measures	ambient dose equivalent rate in μSv / h dH * (10) / dt
Ranges	dose rate gamma radiation 0.1 μSv / h ... 999 / h (nuclear calibrated Co-60) Averaging of the dose rate every 60 s (and switched off)
Radiation	energy compensated detector, halogen Geiger-Mueller counter deleted
energy ranges	Photons: 40 keV to 1.3 MeV
Basic error under reference conditions	<25% under reference conditions at Co-60
Overload	10 - fold
Output	LCD with switchable backlight acoustic pulse signaling
energy supply batteries Battery life	2 pcs LR6, 1.5 V 100 h (in the radiation-free state)
operating conditions temperature rel. humidity	- 20 ° C to +50 ° C max. 90% (at 30 ° C)
Weight	250 g
dimensions (L x W x H)	145 x 80x 40 mm
Lieferumfang it has a Radiation detector Type energy compensated halogen-quenched Geiger-Muelle,has aOverload capacity 10 - times,and a Energy range Photon radiation 40 keV ... 1.3 MeV.
Here you will find the complete overview of all instruments of the offer of PCE instrument.
