pH-EC-O2 pH meter PCE-PHD 1
measures pH value, conductivity, oxygen and temperature / SD memory card (up to 16 GB) / values are stored in Excel format / large display / Optional RS-232 interface and software for real time data transference

The pH meter PCE-PHD 1 truly is a device with multiple capabilities for inspecting water quality. The portable pH meter PCE-PHD 1 is used for testing the pH value of water, conductivity and oxygen and is also very suitable to measure temperature. A three point calibration as well as an automatic temperature compensation guarantee a high level of accuracy even with variable temperature measurements. The pH meter PCE-PHD 1 is delivered with both a pH sensor and a conductivity sensor included. There are also other accessories available such as different sensors and a software kit with an RS-232 cable.  All values can be directly stored in a SD card (up to 16 GB) in Excel format or transferred to a PC by means of the RS-232 interface. There is an optional RS-232 interface with data cable available. If you wish to view other pH meters, click the following link.

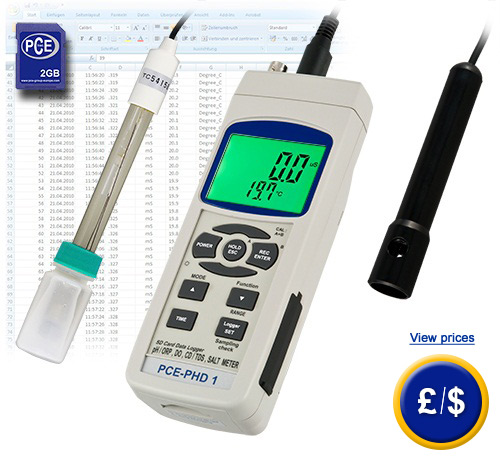

The pH meter PCE-PHD 1 with SD memory card.

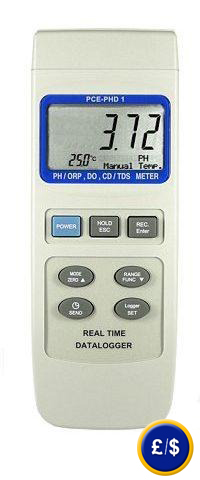

pH meter PCE-PHD 1

- Good price-performance ratio

- Real time data logger

- SD memory card (up to16 GB)

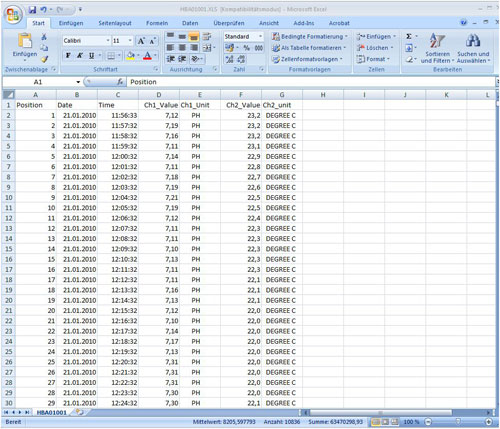

- measured values are directly saved in the SD card as Excel file (thus, no additional software is required)

- RS-232 interface for real time data transference

- Measure pH values, Redox, conductivity, salt content, oxygen and temperature

- High accuracy

- Low battery indication

- Adjustable measurement rate

- Easy to use

- Solid enclosure

- Includes electrodes for pH and conductivity

- Automatic calibration

- Manual or automatic temperature compensation

- BNC connector

- Suitable for measurements in laboratories and in situ

- Optional Redox and oxygen sensors


       View / print user's manual of the pH meter

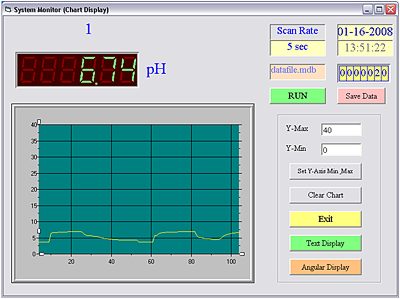

Here you can see the optional software available for the pH meter PCE.-PHD 1
Here you can see the optional software available for the pH meter PCE-PHD 1

Connections of the pH meter PCE-PHD 1 How to insert the SD card into the pH meter PCE-PHD 1

pH measurement
Measurement ranges
Resolution
Accuracy
Calibration
Temperature compensation


0.00 ... 14.00 pH
0.01 pH
±0.02 pH + 2 digits
3 points (pH 4, pH 7 y pH 10)
automatic with additional temperature sensor      (0 ... 60ºC) o manual (0 ... 100 ºC)
Conductivity
Measurement ranges




Resolution




Accuracy
Calibration
Temperature compensation

0 ... 200.0 µS/cm
0.2 ... 2.000 mS/cm
2 ... 20.00 mS/cm
20 ... 200 mS/cm

0.01 µS/cm
0.001mS/cm
0.01 mS/cm
0.1 mS/cm

±2 % of the measurement range + 1 digit
1á413 mS/cm
automatic (0 ... 60 ºC)
TDS
Measurement range




Resolution




Accuracy
Temperature compensation

0 ... 132 ppm
132 ... 1,320 ppm
1,320 ... 13,200 ppm
13,200 ... 132,000 ppm

0.1 ppm
1 ppm
10 ppm
100 ppm

±2 % of the measurement range + 1 digit
automatic (0 ... 60 ºC)
Salt content
Measurement range
Resolution

Accuracy
Temperature compensation

0 ... 12 % (of weight)
0.01 %

±0.5 % of the measurement range
automatic (0 ... 60 ºC)
Oxygen
Measurement range




Resolution



Accuracy



Calibration
Temperature compensation

0 ... 20 mg/l (in water)
0 ... 100 % (in air)
0 ... 50 ºC

0.1 mg/l
0.1 %
0.1 ºC

±0.4 mg/l
±0.7 %
±0.8 ºC

in the air
automatic (0 ... 50 ºC)
Temperature
Measurement range
Resolution
Accuracy
Temperature compensation

0 ... 60 ºC
0.1 ºC
±0.8 ºC
automatic (0 ... 60 ºC)
Technical specifications
Measurement rate

1 second up to 9 hours

Display

LCD

Memory

SD card (up to 16 GB)
a 2 GB card included in the delivery

Interface

RS-232

Software

optional

Power supply

6 x 1,5 V AA batteries
(optional mains adapter)

Operating conditions

0 ... +50 ºC / <85 % H.r.

Dimensions

177 x 68 x 45 mm

Weight

490 g

Optional conductivity electrode for the pH meter PCE-PHD 1 included in the delivery
Here you will find an optional conductivity electrode available for the pH meter PCE-PHD 1
OptiopH electrode for the pH meter PCE-PHD 1 included in the delivery
Here you will find an optional pH electrode available for the pH meter PCE-PHD 1
Delivery contents
1 X pH meter PCE-PHD 1, 1 x pH electrode,  1 x conductivity electrode, 1 x SD memory card,
6 x batteries and user's manual.
Here you will find an optional temperature sensor available for the pH meter PCE-PHD 1 .
Here you will find an optional temperature sensor available for the pH meter PCE-PHD 1
Here you will find an optional oxygen sensor available for the pH meter PCE-PHD 1
Here you will find an optional oxygen sensor available for the pH meter PCE-PHD 1
Optional accessories
- pH value calibration kit
- conductivity calibration kit
- oxygen electrode (note: electrolytic solution is required, order it separately)
- temperature sensor
- software kit (only for real time measurements)
- mains adaptor to use the device without batteries
