PCE-FWS 20 Weather
Station with touch screen
Weather station with five
sensors and vertical mast (for wind
direction, wind speed, temperature, relative
humidity, rainfall) / Alarm function/ USB
port / Analysis software
|
|
The PCE-FWS 20
Weather Station is a multifunction device
which will cover all your needs both in the
private and in the professional sector. The PCE-FWS
20 Weather Station allows you to detect with
a high accuracy wind direction, wind speed,
temperature, relative humidity and rainfall.
Apart from these performances, you will be
able to activate different alarm functions
(air speed, atmospheric pressure, etc...).
You will be fascinated by this weather
station. With the help of the PCE-FWS 20 weather station
you will be able to choose suitable clothes
for the day or decide whether
the garden needs to be watered, among other
functions. Meteorological data is sent by
means of a radio to the main unit when the
distance does not exceed 100 meters. This
weather station is equipped with the latest
technology for the meteorological analysis.
Meteorological values can easily be
accessed by means of the touch-screen. With
the USB port and the USB cable included in
the delivery, data can be transferred from
the weather station to a PC or portable
computer to be analyzed subsequently. Data
values can also be recorded
unlimited.
The analysis software included in the
delivery allows you to analyze and compare
meteorological fluctuations by means of
graphs and diagrams over long period
of time. The
delivery includes all the elements you will
need to set up the weather station.
Here you
can find an overview of the different
weather stations. |
|
 |
|
Functions of
the Weather Station
- Indoor temperature in Celsius or Fahrenheit
- Outdoor temperature in Celsius or Fahrenheit
- Indoor relative humidity
- Outdoor relative
humidity
- Atmospheric pressure is
shown in inHG or hPa
- Relative / Absolute
humidity selection
- Rainfall is shown in mm or inches
- Rainfall indication for 1 hour, 24 hours, 1
week, 1 month or from the last reset
- Selection of wind speed
in mph, km/h, m/s, knots or Beaufort
- Indication of wind
direction
- Wind chill temperature
indicator
- Dew point indication
- Weather forecast
- Weather forecast trend
- Storm warning
- Indication of
meteorological values.
- Programmable alarm
functions for different meteorological
values
- It can store maximum and
minimum values
- LED with backlight
display
- Radio clock
- Indication in 12 or 24 hours
- Calendar
- Set up of
time zone
- Energy saving function
- Can be
free-standing or wall-mounted
- Permanent adjustment of
meteorological values and clock by means of
a radio
View /
Print user's manual

|
|

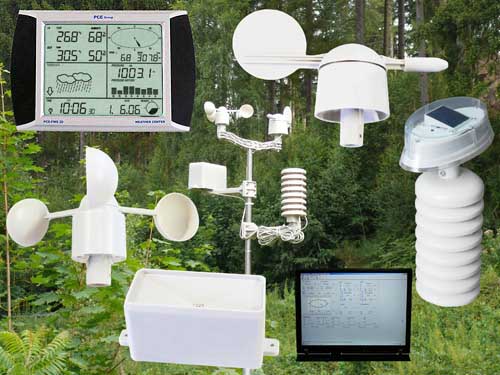

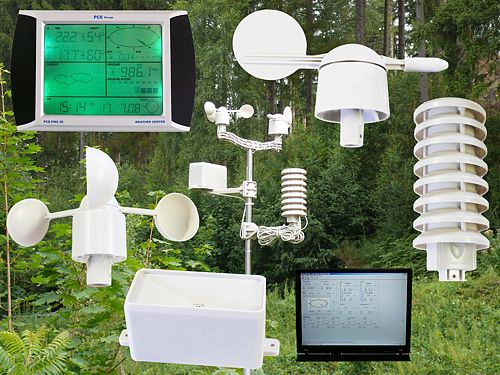

Here you see the PCE-FWS 20 Weather station
with software and all the remote sensors
which are coupled to the vertical mast
(included in the delivery). |
|
Set up of the
alarm in the weather station
-
Maximum indoor humidity
alarm
-
Maximum indoor temperature
alarm
-
Maximum outdoor humidity
alarm
-
Maximum outdoor temperature
alarm
-
Maximum wind chill alarm
-
Maximum dew point alarm
-
Maximum atmospheric
pressure alarm
-
Maximum wind speed alarm
-
Maximum gust alarm
-
Rainfall alarm, 1 hour
-
Rainfall alarm, 24 hours
-
Minimum indoor humidity
alarm
-
Minimum outdoor temperature
alarm
-
Minimum outdoor humidity
alarm
-
Minimum outdoor temperature
alarm
-
Minimum wind chill alarm
-
Minimum dew point alarm
-
Minimum
atmospheric pressure alarm
|
Storable
measurement
values
(with time and date)
-
Maximum rainfall for 1 hour
-
Maximum rainfall for 24
hours
-
Maximum rainfall for one
week
-
Maximum rainfall for a
month
-
Minimum indoor humidity
-
Minimum indoor temperature
-
Minimum outdoor humidity
-
Minimum outdoor
temperature
-
Minimum wind chill
-
Minimum dew point
-
Minimum atmospheric
pressure
-
Maximum indoor humidity
-
Maximum indoor temperature
-
Maximum humidity
-
Maximum outdoor
temperature
-
Maximum wind chill
-
Maximum dew point
-
Maximum atmospheric
pressure
-
Maximum air velocity
-
Wind direction
-
Gust
|

Temperature and
humidity sensor of the PCE-FWS 20 weather
station |

Rain sensor of
the PCE-FWS 20 weather station |

Air velocity
sensor of the PCE-FWS 20
weather station |

Wind direction
sensor of the PCE-FWS 20
weather station |
|
Technical
specifications |
|
Indoor |
|
Measurement
ranges |
Operating
temperature: 0 ... +60 °C
Humidity: 1 ... 99 %
Atmospheric
pressure: 919 ... 1080hPa |
|
Resolution |
Air temperature: 0,1 °C
Humidity: 1 %
Atmospheric
pressure: 0,1 / 1,5 hPa |
|
Measuring range
of the atmospheric pressure, temperature and
humidity |
48 seconds |
|
Alarm duration |
120 seconds |
|
Outdoor |
|
Measurement
range |
Operating
temperature: -40 ... +65 °C
Humidity: 1 ... 99 %
Rain fall: 0 ... 9999mm
Wind speed: 0 ... 180 km/h
Indication of
the wind direction |
|
Resolution |
Air temperature: 0,1 °C
Humidity: 1 %
Rainfall: 0.1mm (volume <1000mm) / 1mm (volume >1000mm) |
|
Temperature and
humidity measuring range |
48 seconds |
|
Radio
transmission |
up to 100 m in
the open air |
|
Port |
USB |
|
Power
-
Main Unit
- Radio |
3 x 1,5 V AA
batteries
2 x 1,5 V AA
batteries |
|
Dimensions
-
Main Unit
-
Remote sensors |
230 x 150 mm
660 x 540 mm |

Here you see the PCE-FWS 20
weather station connected to a portable
computer by means of the software. |

Here you see the use of the
touch screen of the PCE-FWS 20. |

Here you see the analysis software
included in the delivery. |

Here you see the remote sensors in a
vertical mast included in the delivery. |
|
Delivery
contents
1 x Main unit
with touch screen
1 x temperature sensor with a
support
1 x humidity sensor with a
support
1 x rainfall sensor with a
support
1 x air velocity sensor with a
support
1 x wind direction sensor with a
support
1 x vertical mast
1 x USB cable
1 x analysis software
user's manual |
 |
|
 |
 |
|
Here you will find an overview of all
the
measuring instruments
available at PCE Instruments. |
|
