PCE-T390
digital thermometer
Type-K, J and PT100 temperature sensor
inputs,
with data logger in SD card (xls format)
/ large LCD display / powered by
batteries or mains component (optional)

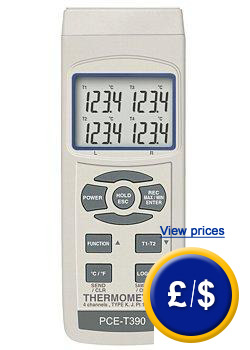

The PCE-T390
digital thermometer is a digital device
with four input channels for type K and
type J temperature sensors and two input
channels type Pt100 temperature sensor.
The PCE-T390 digital thermometer has an
internal memory through a SD card (from
1 to 16 GB). Data is registered in the
memory card (xls format) of the PCE-T390
digital thermometer so any additonal
software is required for further
analysis. The optional software of the
PCE-T390 digital thermometer, which
comes included with a RS-232 cable,
allows the user to store values so that
this data can be transferred to a
computer for further analysis. Time
intervals can be programmed for using
the digital thermometer as a data logger
ensuring that all readings get stored
over an extended period of time. The
PCE-T390 digital thermometer can be used
to measure online or as data logger. The
display of the PCE-T390 digital
thermometer simultaneously shows the
four channels temperature (when they are
connected to the corresponding sensors). The
PCE-T390 digital thermometer can be used
as a handheld device in situ or as a
data logger for monitoring temperature
fluctuations over a period of time. The
PCE-T390 digital thermometer can be used
in an almost unlimited capacity in
maintenance, conservation, machine
diagnostics and quality control. The
PCE-T390 digital thermometer can
also be used for measuring in real time
or as a data logger. Type-K, J and PT100
temperature sensors can be connected to
the PCE-T390 digital thermometer. Here
you will find a selection of type-K
temperature sensors. The PCE-T390
digital thermometer can be DIN ISO
calibrated, including a
corresponding control certificate. At
the following link you will find another
type of digital thermometer.
Technical specifications
4 input channels for
type-K, J and PT100 temperature
sensors
2 input
channels for type Pt100 temperature
sensors.
2 type-K temperature
sensors are inclu-ded with the
thermometer
(TF-500)
Memory with SD memory card (from
1 to 16 GB)
Backlight LCD display
Displays maximum and minimum
temperature
Unit selection (ºC or ºF)
Low battery indicator
Auto shut-off function (can be disabled
ABS plastic
case
Softwareç
HOLD
function
View / print user's manual of the
PCE-T 390
digital thermometer
Fields of application
The PCE-T390 digital
thermometer can be used for taking measurements in situ and
thanks to its internal memory it can take readings over an
extended period of time for such applications as:
- Maintenance,
diagnostics, and analyzing
machines
- Research and
development, product
development
-
Quality control,
production and process
analysis
Here you will
find another digital
thermometer with one
channel, memory, RS-232
interface and software.
Technical specifications
Measuring ranges
Type K: -100 ...+ 1370
°C
Type J: -100 ... +1150 ºC
Type Pt100: -200 ... +850 ºC
Resolution
Type K: 0,1 °C
(-100 ... +1000 °C)
1 °C (+1000 ... +1370 °C)
Type J: 0,1 °C
(-100 ... +1000 °C)
1 °C (+1000 ... +1150 °C)
Type Pt100: 0,1 °C
(-200 ... +850 °C)
Accuracy at 23 ºC ±5 ºC
Type K: ± (0,4 %
+ 1 ºC)
Type J: ± (0,4 % + 1 ºC)
Type Pt100: ± (0,4 % + 1 ºC)
Time intervals
1
... 3600 seconds (adjustable)
Temperature sensor
inputs
4 sensors input
type K / 2 and Pt100
Memory
flexible through
the SD memory card
(from 1 to 16 GB)
System requirements
for the software (data can be transferred
from the PCE-T390 digital thermometer to a PC)
from Windows 95
Inputs
4
Display
52 x 38 mm with
backlight LCD display
Power
6 x 1,5
V AA batteries /
9 V mains component (optional)
Auto shut-off
The digital
thermometer shuts off after 30 minutes of
inactivity. This function can be disabled.
Operating
temperature
0
... +50
°C, <85 % H.r.
Dimensions
177 x 68 x 45 mm
(height x width x depth)
Peso
490
g (with battery)
Examples
of use of the PCE-T390 digital
thermometer.
Testing the
temperature in a grill with the
PCE-T 395 digital thermometer.
The digital
thermometer measuring temperature in a car
engine with a temperature sensor.
The PCE-T 390
digital thermometer measuring refrigerated
products in a cooling chamber.
The PCE-T 390
digital thermometer measuring the heater of
a vehicle.
Software
PCE-T 390 digital thermometer can be
configured via the keypad or by using
the software. Data and time are stored
in the SD memory card as a xls table.
Data can be shows graphically or in
spreadsheet format on the digital
thermometer or via the software.
Thanks to the
analysis in xls format it is possible to
show values graphically with the four
channels without any additional software.
With the RS-232
cable of the PCE-T390 contact thermomenter
optional software values can be registered
for further analysis.
Delivery
contents
1 x PCE-T390 contact temperature, 2 x
type-K temperature sensors, 6 x batteries,
1 x SD memory card, user's manual.
Optional
accessories
-
ISO calibration and certificate
For companies that wish to incorporate the
PCE-T390 digital thermometer into their
internal quality control system of tools or
for annual calibrations. The certification
meets
ISO standards and includes a laboratory
calibration and a certificate which contains
the measurement values. It also indicates
the Company name and address or the person
who ordered the device.
- Software kit with USB
cable
The software is used to transferred data
form the PCE-T390 contact temperature to a
computer or laptop. These measured values
can be also transferred to other calculation
programs such as MS Excel. Connection
cable is included in the delivery.
-
Type-K temperature
sensors
We offer different type-K temperature
sensors for the PCE-T390 thermometer.
- Mains adapter
Mains adapter for the PCE-T 390 digital
thermometer (230V/50Hz). To measure
temperature over a extended period of time.
- Pt100 temperature sensors
Contact
us and our technical staff will advise about
the temperature sensor that best suits your
needs.
