Multifunctional Sprint combustion analyser
multifunctional combustion analyser for heating and gas installations / suction and differential pressure / differential temperature / gas leak test / timed test in CO room

The multifunctional Sprint combustion analyser is an ideal device for technicians for the service and maintenance of gas and heating systems installations. The multifunctional Sprint combustion analyser is a compact, light and easy-to-use device with a magnetic rubber cover. The Sprint combustion analyser has a sampling probe with a built-in thermocouple to measure gas and combustion temperature. It also includes a built-in set of water filters which can operate in any direction. The water filter included in the probe allows the elimination of suspended particles through the water box and the replaceable filter used for the sample humidity. The Sprint combustion analyser has a graphic LCD display with an easy to use menu for the selection of the required functions. The menu of the Sprint combustion analyser allows the selection of combustion gas analysis or other test such as setup of fuel type, measuring units and the basis of efficiency (gross or net). Measured results are recorded in the memory or they can be exported to a printer by means of IR communication cable. The USB interface enables you to load recorded files and to control the different setups of the Sprint combustion analyser. There are other combustion analyser models with Bluetooth for the direct loading of information to a compatible PDA. The Sprint combustion analyser has seven different versions available to fulfill all the customer's requirements. Each Sprint combustion analyser is delivered with a full and ready-to-use kit in a carrying case. The Sprint combustion analyser does not have ATEX protection so it cannot be used in explosive areas. The Sprint combustion analyser can be calibrated and certified according to the DIN ISO or ENAC standards (for more information contact us). You will find an overview of all combustion analysers at the following link

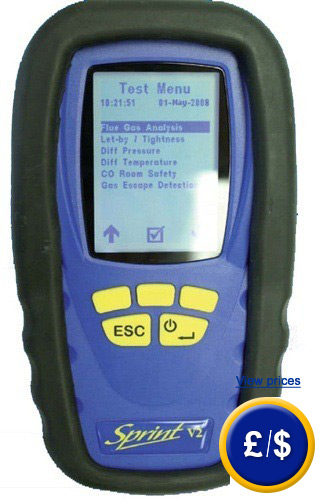

Analyser combustion sprint



 - Full graphic display

 - Inputs: Gas, thermocouple, pressure

 - Resistant magnetic rubber cover

 - Sampling probe with built-in thermo-couple,        with an insertion length of 250 mm, with                adjustable depth indicator, 2 m cable and             water filter


        View or print user instruction of the Sprint                               combustion analyser.
                                          View / print user's instructions of the Sprint combustion analyzer.


 - Direct export to a printer by means of IR                  interface

 - Selection of 10 preset fuel types

 - Pressure units

 - Selection of temperature units (ºC or ºF)

 - Date and time function

 - Gross or net efficiency

Technical specifications

Gas Range Resolution Accuracy Detection limit Response time Recovery time
Oxygen 0-25% 0.1% ± 0.3% 0.2% v/v 50 s 30 s
Carbon monoxide (compensation H2) CO 0-10.000 ppm 1 ppm reading of < 20 ppm
± 3 ppm
>20 ppm
± 5%
2 ppm 90 s 60 s
Nitric oxide 0-1000 ppm 1 ppm ± 1 ppm 1 ppm 30 s 30 s
Carbon dioxide 0-25% 0.1 % ±0.2% 0.2% v/v 50 s 30 s
Pressure ± 200 mBar <20 mBar
0.01 mBar
>20 mBar
0.1 mBar
± 0.5 mBar --- --- ---
CO / CO2 0-0.9999 0.00001 --- --- --- ---
XSair 0-250% 1% --- --- --- ---
Temperature -50 to 1000 ºC
(-58 ºF to 2012 ºF)
± 1ºC --- --- --- ---
Efficiency 0-100 % 0.1 % --- --- --- ---
Gas leak probe 0-10,000 ppm  natural gas --- --- --- --- --

Range of humidity

0 a 95%, non-condensing

Range of temperature

-10 ºC to 50 ºC (14 ºF to 122 ºF)

Display

LCD, with graphic and blue back light

Operating time

9 hours

Loading time

6 hours

Charger/power source

with adapter for the European version
(optional vehicle charger)

Charger input voltage

230 V 50/60 Hz AC

Cover

magnetic rubber cover

Type of protection

IP42

Probe specifications

Standard efficiency combustion probe, insertion length of 250 mm with adjustable depth indicator, maximum temperature of 800ºC,  ergonomic stainless steel handle and built-in thermo couple with protective cover with a length of 2500 mm

Gas leak sensor probe

 goose neck gas leak probe

Dimensions

75 x 168 x 65 mm

Weight

440 g

Available models

Function Functionality V1 V2 V3 V4 V5
Standard fuels- menu selection

Natural gas, LPG, heavy oil, light oil, carbon, bagasse, biomass, wood, coke and wood pellets (other on request)  X X X X X
Menu Easy browsing menu and easy to use by means of a soft key. X X X X X
Buttons/function keys 5 keys keypad X X X X X
Alarm Acoustic and visual alarm to indicate dangerous CO levels. X X X X X
Smart Purge Intelligent control of the bomb velocity. Integrated indication of the flow failure and blocking. X X X X X
Carrying case Standard carrying case X X X X X
Filter/water trap Combined with double water traps and high grade particle filter, it protects the filter and the instruments against any damage. X X X X X
Standards It meets EN50379 and BS7967 standards X X X X X
Calibration It is recommended to order calibration two weeks earlier. X X X X X
Data logger reports Up to 200 reports, according to the model. Data is displayed on the screen. X X X X X
  Register output to PC   X X X X
Bluetooth TM Communication with PDA and PC     X   X
Gas combustion analysis CO, CO2,  CO/CO2, relation, efficiency (net or gross), oxygen, air excess, temperature (ºC or ºF) X X X X X
  Pressure   X X X X
  Gas combustion capacity: NO and NOx       X X
Differential pressure Differential pressure, gas leak pressure test, sealing and tightness test according to the IGE/UP/1B   X X X X
Differential temperature Differential temperature with one or two probes   X X X X
  One differential temperature probe X
 Test in CO rooms CO accumulation test in special rooms or security proof of CO in rooms type  BS 7967 X X X X X
Gas leak test By means of a goose neck probe type equipped with ultra bright white LED light.   Option Option Option Option

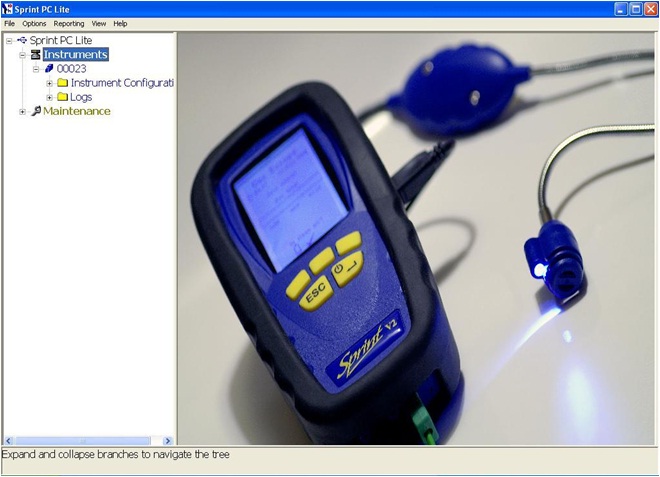

Image of the software of the Sprint combustion Analyser

Analyseur combustion multifunction sprint software

Delivery content:
1 x Sprint combustion analyser, 1 x magnetic rubber case, 1 x carrying case, 1 x power supply and battery charger, 1 x gas probe, including water filter, 1 x software (except V1), 2 x pressure tubes of natural gas or GLP, user manual.

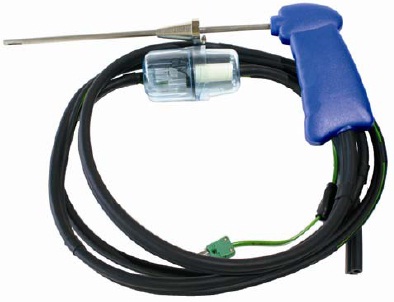

Analyseur combustion sprint probe

In this image you can see the gas probe with water filter included in the delivery of the Sprint combustion analyser.

Optional accessories

- ISO calibration certificate
Laboratory calibration and certification to meet ISO standard (when the device is ordered or for further recalibrations). The personal details of the customer and the serial number are included.

Analyser combustion multifunction sprint calibration certificate

- Gas leak probe

Analyser combustion multifunction sprint gas leak probe

- Printer
Rechargeable infrared printer for the combustion analyser Sprint V series.

Analyser combustion multifunction sprinter printer
technical specifications for the multifunction combustion sprint analyser. return to homepage
