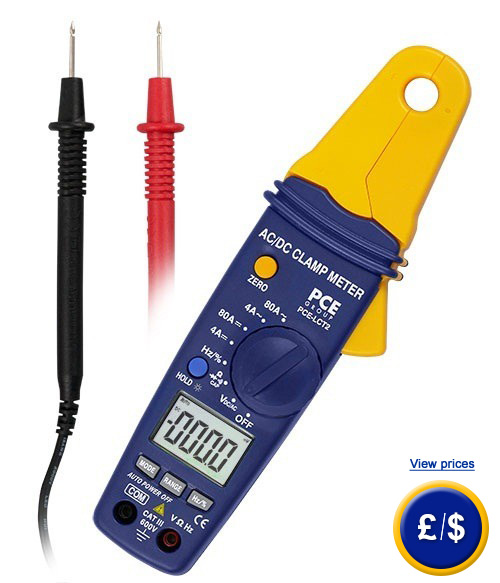

PCE-LCT 2 Clamp Meter
digital device for current up to 80 A AC/DC, measures resistance, capacitance and power up to 600 V AC/DC, analogue output

The PCE-LCT 2 clamp meter measures both alternating and direct current up to 80 A. Moreover, the PCE-LTC 2 clamp meter is used to measure and check alternating and direct voltage, resistance, diodes, capacitors and frequencies. This makes the PCE-LCT 2 clamp meter an ideal instrument for the inspection of electrical installations as well as for testing car electronics. Therefore, it should be in every toolbox. The maximum diameter of the conductor is 23 mm. The PCE-LCT 2 clamp meter is very small, so it can be used inside electric cabinets. Its large display with a resolution of 0.001 allows to perform highly accurate measurements. The PCE-LCT 2 clamp meter can be connected to a multimeter to read measuring values. The analogue output is 10 mV. Here you can see an overview of all the clamp meters available at PCE Instruments.

View or print user manual of the PCE-LCT 2 clamp meter

  - Measures current up to 80 A
  - Measures voltage up to 600 V
  - Checking of diode, resistance and capacitance
  - Max. diameter of the conductor 23 mm
  - Backlit display with 4000
    digits

  - High resolution of 0.1 mA
  - Analog output
  - It meets IEC 61010-2-032: CAT III, 600 V
  - It stores the peak value on the display
  - Test cables are included

Measurement range

Resolution

Accuracy (of the measured value)

0 A ... 4 A

1 mA

± (2.8 % + 10 digits)

0 A ... 80 A

100 mA

± (3 % + 8 digits)

Current (AC A, 50/60 Hz)

Measurement ranges

Resolution

Accuracy

0 A ... 4 A

1 mA

± (3 % + 10 digits)

0 A ... 80 A

100 mA

± (3 % + 8 digits)

Voltage (DC V)

Measurement ranges

Resolution

Accuracy (of the measured value)

0 V ... 400 mV

0.1 mV

± (1 % + 15 digits)

0 V ... 4 V

1 mV

± (1 % + 3 digits)

0 V ... 40 V

10 mV

± (1.5 % + 3 digits)

0 V ... 400 V

100 mV

± (1.5 % + 3 digits)

0 V ... 600 V

1 V

± (2 % + 15 digits)

Voltage (AC V, 50/60 Hz)

Measurement ranges

Resolution

Accuracy (of the measured value)

0 V ... 400 mV

0.1 mV

± (1 % + 30 digits)

0 V ... 4 V

1 mV

± (2 % + 5 digits)

0 V ... 40 V

10 mV

± (2 % + 5 digits)

0 V ... 400 V

100 mV

± (2 % + 5 digits)

0 V ... 600 V

1 V

± (2 % + 5 digits)

Resolution

0 Ω ... 400 Ω

0,1 Ω

± (1 % + 4 digits)

0 Ω ... 4 kΩ

1 Ω

± (1.5 % + 2 digits)

0 Ω ... 40 kΩ

10 Ω

± (1.5 % + 2 digits)

0 Ω ... 400 kΩ

100 Ω

± (1.5 % + 2 digits)

0 Ω ... 4 MΩ

1 kΩ

± (2.5 % + 3 digits)

0 Ω ... 40 MΩ

10 kΩ

± (3.5 % + 5 digits)

Resolution

0 F ... 40 nF

10 pF

± (5 % + 30 digits)

 0 F ... 400 nF

100 pF

± (3 % + 5 digits)

0 F ... 4 µF

1 nF

± (3.5 % + 5 digits)

0 F ... 40 µF

10 nF

± (3.5 % + 5 digits)

0 F ... 100 µF

100 nF

± (5 % + 5 digits)

Frequency

Resolution

0 Hz ... 5 Hz

0.001 Hz

± (1.5 % + 5 digits)

0 Hz ... 50 Hz

0.01 Hz

± (1.2 % + 2 digits)

0 Hz ... 500 Hz

0.1 Hz

Sensitivity: min. 10 V rms with a working cicle of 20 % ... 80 %

0 Hz ... 5 kHz

0.001 kHz

0 Hz ... 50 kHz

0.01 kHz

0 Hz ... 500 kHz

0.1 kHz

0 Hz ... 5 MHz

0.001 MHz

0 Hz ... 10 MHz

0.01 MHz

Regulation factor

Measurement ranges

Resolution

Accuracy (of the measured value)

0.5 % ... 99 %

0.1 %

± (1.2 % + 2 digits)

Pulses: 100 µs ... 100 ms
Frequency: 5 Hz ... 150 kHz
Sensitivity: 10 V rms/min.

General technical specifications

Display

4000 digits with backlight

Electrical quantities

AC V, AC A, DC V, DC A, resistance, capacitance, net frequency, regulation factor

Standards

CAT III 600 V

Diameter of the clip

23 mm

Input impedance

7.8 MΩ

Analogue output

10 mV/ampere

Output impedance

3 kΩ

Operating temperature

-10 ºC ... 50 ºC

Operating humidity

<90 % H.r.

Power

2 x 1.5 V AAA batteries

Input current

10 mA

Weight

200 g

Dimensions

200 x 50 x 35 mm

Delivery content:
1 x PCE-LCT 2 clamp meter, 2 x 1.5 V AA batteries, 1 x carrying case, user manual

Here you can see the delivery content of the PCE-LCT 2 clamp meter.

Here you can see the PCE-LCT 2 clamp meter measuring electrical current.
