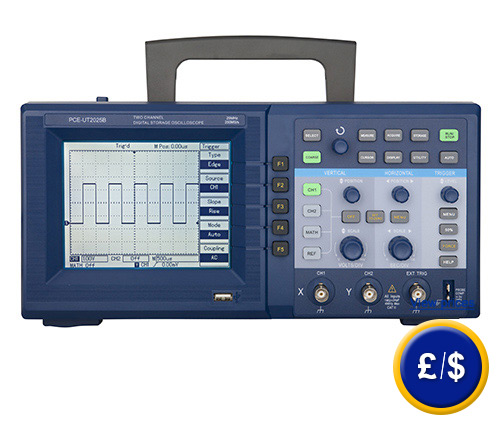

Digital Oscilloscope PCE-UT 2082C
digital oscilloscope with colour display / 500 MS/s real-time sampling rate / FFT analyser and further mathematical functions / connection for USB-sticks

The Digital Oscilloscope PCE-UT 2082C with a real-time sampling rate of 500 MS/s and an equivalent time measurement range of 25 GS/s is a suitable device for industry and research as well as for electronic technicians. Many high-performance functions of this oscilloscope, for instance, several trigger opportunities and analysis functions allows for a very easy acquisition and analysis of signals. 10 signals can be stored in the internal memory and on USB-sticks which can be called up later. Furthermore, mathematical functions like FFT analysis are still available. The user interface is adapted to the traditional arrangement that shortens the training period for user. Moreover, the design is optimal for a quick operation and therefore allows fast access to all functions. The “auto button” allows an automatic search of adjustments for unknown signals while the auto measurement function shows 19 parameters. Due to the compact dimensions and a low weight of the Digital Oscilloscope PCE-UT 2082C, portable use is possible. If you have any further questions regarding the Digital Oscilloscope PCE-UT 2082C, take a look at the following technical specifications or contact us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you on all oscilloscopes and all products in the field of regulation and control, measuring instruments and scales. Here you can find an overview of all oscilloscopes.

- Measurement range per channel: 250 MS/s
  real-time
- Maximum sensitivity: 5 ns
- Bandwidth: 80 MHz
- Auto measurement functions: for up to 19
  parameters
- Internal memory

- Direct connection of USB-sticks up to 512 MB
- Integrated mathematical functions
- Help function in English
- Security: IEC61010; CAT III, 600 V
- Delivered with power adapter, 2
  probes

Technical specifications:

Sampling rate

Real-time sampling rate

500 MS/s

Equivalent measurement range

25 GS/s

Horizontal part

Time basis

Signal memory

1042 k

Signal interpolation

Vertical part

Analogue bandwidth

Sensitivity

2 mV – 5 V/div

Input coupling

DC, AC, GND

Input resistance

Maximum input voltage

400 V/DC and AC peak

Memory depth

2500 points/channel (until 50,000 points
expandable)

A/D transformer

8 bit

Sensitivity

2 mV – 5 V/div

Trigger

Trigger type

AUTO, NORM, SINGLE

Trigger coupling

DC, AC, LF-REJ, HF-REJ

Hold off

100 ns – 1.5 s

Trigger signal

Measurement functions

Automatic measurements

peak-peak, average value, effective value
frequency, period, working cycle, pulse width
rising and fall edges and further values

Cursor

vertical and horizontal dashed line,
reference, voltage, time, frequency, automatic
or manual placed synchronisation

Memory function

10 device adjustments; 10 signals

Special functions

self-calibration

Mathematic functions

Screen 5.7 “ (145 mm), colour display

5.7 “ (145 mm), colour display

Power supply

AC 100 … 240 V, 45 … 440 Hz, 50 VA

Dimensions

230 x 150 x 130 mm

Weight

Additional equipment:
- replacement probes
- DIN-ISO calibration certificate

Here you can see the universal probes that are included in the delivery. Since the power distributor ratio can be converted to 10:1 signals up to 50 V can be shown. Via a variable capacitor falsifications of signals can be compensated.

A real-time image can be transmitted via USB directly on a PC. The opportunity to operate the Oscilloscope via remote control still exists.

To view and print signal later, the Digital Oscilloscope PCE-UT 2082C offers the opportunity to memorise current display as bitmap. Since all adjustments will be recorded in that way, it is possible to analyse signals.

On the right image, the Digital Oscilloscope will be used to measure oscillations of quartz.

The following product links will show you additional items regarding "portable oscilloscope":

- PCE-UT 81B series Oscilloscopes
  (handheld oscilloscopes (8 MHz), multimeters, frequency counter, USB port / internal storage)

- PKT-1220 series Oscilloscopes
  (1 channel oscilloscopes with multimeter, 20 MHz widthband, USB interface)

- PKT-1205 series Oscilloscopes
  (oscilloscopes with integrated multimeter, 20 MHz widthband, 2 channels, USB interface)

- PKT-1195 series Oscilloscopes
  (oscilloscopes with integrated multimeter, 2 channels, 100 MHz widthband, USB interface)
