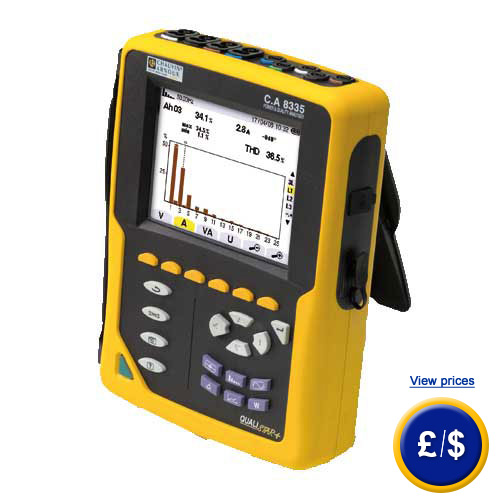

Energy and Power Meter C.A 8335 Qualistar +
Energy and power meter for graphical network analysis / intuitive use / Alarm function / Oscilloscope Function / up to 6500 A / 256 samples/period / 2 GB memory

The energy and power meter C.A 8335 is ideal for maintenance and inspection services for industrial or commercial facilities or public facilities. The energy and power meter creates an immediate image of the most important network parameters and network quality. The units are compact and accurate, and offer many additional calculation and processing functions. The operator can directly enter the energy and power meter’s basic settings: date, time, display contrast, etc.... In a second step, the type of network to which the device is connected can be selected. The current transformers used by the energy and power meter are automatically detected. You can see a review of the settings on the screen any time. The energy and power meter C.A 8335 has an alarm function. The alarm thresholds can be easily entered via the menu. The alarm date, time, duration of the alarm and the MAX / MIN values are stored. The recording time and recording interval are adjustable on the unit. A bar graph on the display of the energy and power meter C.A 8335 shows the progress of the measurement. A special feature of the C.A 8335 Qualistar + energy and power meter is the built-in help function, which makes a statement concerning the content of each screen. If there are any questions about the energy and power meter C.A 8335 Qualistar + have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in energy and power meter and all products in the field of measuring instruments, regulation and control and scales.

- TRMS voltage to 1000 V
- TRMS current 6500 A
- Peak current and voltage measurement
- Active, reactive and apparent performance
- Active, reactive and apparent energy
- High sampling rate

- Harmonics up to the 50th order
- Graphical analysis
- USB interface
- 2 GB of data storage
- Recording of interference
- Graphic display

Technical specification

Voltage Phase to Phase

10 V ... 1000 V

Voltage Phase to N

10 V ... 1000 V

Current (depending on the current transformer)

0.005 A ... 6500 A

Frequency

40 Hz ... 69 Hz

Performance

W, VA, var, PF, DPF, cos φ tan φ

Harmonics

THD to 50 Order with phase angle

Transient

210

Inrush

yes> 1 minute

Sampling

256 samples / cycle

Asymmetry

yes

Recording

about 1 month at min. Interval
Several years at 10 min interval

Alarms

4000 in 10 types

Recognition of the power converter

yes, 9 types

Peak function

yes

Phase diagram

automatically

Display

LCD 320 x 240 pixels, 5.8 "

Security

IEC 61010 CAT III 1000V / CAT IV 600 V

Number of languages menu

25 +

Power supply

9.6 V NiMH battery pack or AC adapter

Battery Life

about 8 hours

Interface

USB

Dimensions

240 x 180 x 55 mm

Weight

1.9 kg

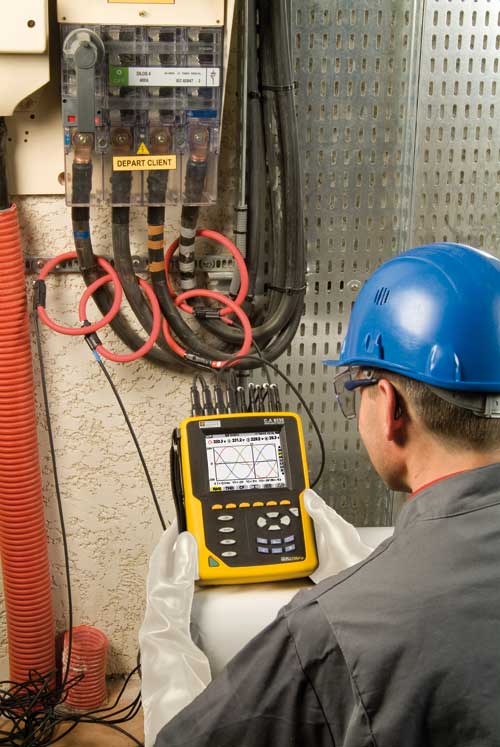

Power measurement with the Energy and Performance Meter C.A 8335 Qualistar +

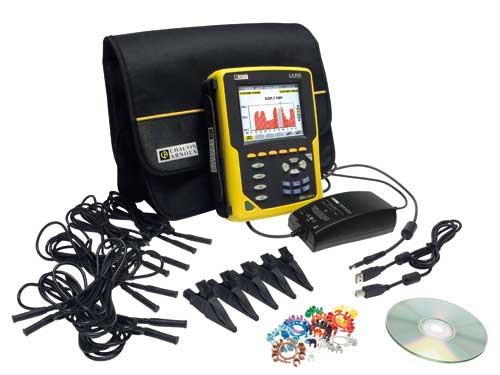

Included in delivery of energy and performance meter C.A 8335

1 x energy and performance meter C.A 8335, 1 x bag No. 22, 1 x USB cable,
1 x power cable, 5 x 3 m long test leads with 4 mm banana plug, 5 x crocodile clips,
12 x colour coding rings for test leads and connectors, 1 x safety
1 x instruction manual, 1 x evaluation
Note: Clamp not included!
