Installation Analyser DT-6650
Robust installation tester / insulation resistance / earthing resistance / loop impedance / voltage measurement / low impedance measurement / RCD test

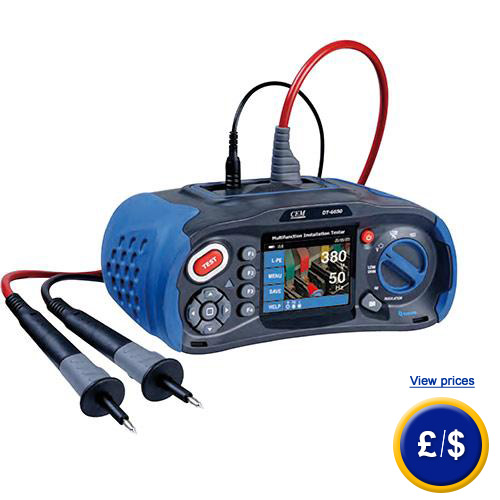

The DT-6650 is a solid installation analyser with a large 3.5" TFT color-LCD. The installation analyser does not only support various measurement modes, such as insulation resistance, earthing resistance, loop impedance, voltage, low impedance and RCD tests, but the measured values can also be saved as images due to an integrated camera. With the installation analyser DT-6650 you can get assurance that the permanent installation was performed correctly and safely according to European VDE standards. Because of a dual display, self-explaining symbols, and a high angle of view, the installation analyser facilitates quick and comfortable measuring procedures. The low impedance mode supports testing earth conductors, main earthing busbars and protective conductors on their low impedance conduct. The measuring range of the installation analyser for low impedance tests covers 0...2000 Ω with a resolution of 0.001...1 Ω. The most important function of the installation analyser DT-6650 might be the measurement of the insulation resistance. Therefore voltage is applied on the electric conductors, in order to detect any leakage current during the insulation test. These leakage currents can be so low that they might be overseen by protection systems and, at worst, might lead to a fire. The installation analyser can perform tests on test voltages of 125 V, 250 V, 500 V or 1000 V, each with a current of 1 mA. The earthing measurement can be executed irrespective of the power source. In order to set all facilities and current circuits of a power supply unit to the same electric potential (reference point) and as a protection from short-circuit current, the earthing resistance should be as low on impedance as possible. With a measurement range between 0 .... 2000 Ω and a resolution of 0.01...1 Ω the installation analyser meets all requirements for a reliable and detailed measurement of the earthing resistance. If there are any questions about this installation analyser DT-6650 , please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and technicians will gladly advise you regarding the vde-testers or any other products in terms of regulation and control, or scales and balances of PCE Instruments.

- 3.5 " Color TFT LC display
- Loop impedance L-N, L-PE and N-PE
- Variable current for RCD
- SD memory card and Bluetooth

- Earthing measurement
- Good/bad leakage current evaluation
- Low impedance measurement
- Up to 1000 V clamp voltage

General Technical Specifications of the Installation Analyser DT-6650

Insulation tests

Clamp Current

Measuring range

Resolution

Accuracy

Test current

Short-circuit current

Low Ohm / low impedance measurement

Continuity Tester

Loop impedance

L-PE (Hi-Amp): test current 15 mA

L-PE (without triggering): test current 15 mA

L-N: Test current 4.0 A

RCD test

RCD (In)

10 mA, 30 mA, 100 mA, 300 mA, 650 mA, 1 A

Multipliers

x 1/2, x1, x2, x5

Accuracy of tripping time

± (1 % + 1 ms)

Type of signal for test current

Sinus (AC), Puls (DC)

Tripping characteristic

G and S

Tripping point

0° or 180 °

Voltage range

194 ... 260 V AC (50/60 Hz)

Accuracy of current measurement

± (5 % + 2 digits)

Voltage measurement

Frequency measurement

Further Specifications on the Installation Analyser DT-6650

Power Supply

8 x 1.2...1.5 V AA batteries

Operation time

approx. 15 hrs.

Measurement category

CAT III 600 V

IP code

IP 65

Display

3.5" TFT (320 x 240 pixels)

Operation surrounding

0 ... 45 °C
0 ... 95 % rH, non-condensing

Diameters

24.2 cm x 10.5 cm x 14.5 cm

Weight

1.56 kg

Delivery content of the Installation Analyser DT-6650

1 x installation analyser DT-6650,
1x carry belt,
3 x crocodile clamps,
3 x measuring cores,
1 x HV test tip,
1 x measurement adapters for ShuKo
1 x charger with various replaceable plugs of type C, A, G and I
1 x charger for cigarette lighter in cars
8 x 1.2 V 2450 mAh NiMH batteries (AA)
1 x manufacturer's certificate
1 x hard case
1 x instruction manual
