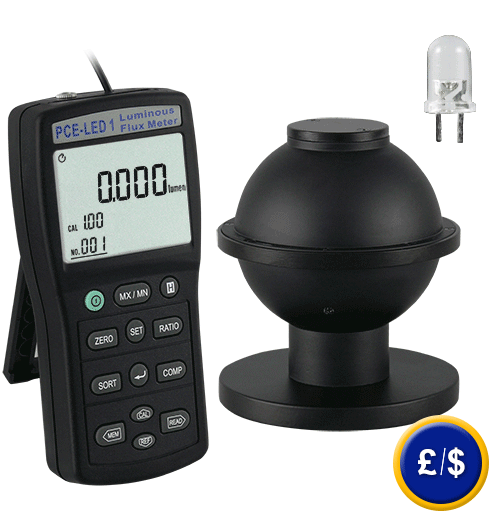

PCE-LED 1 Light Meter
light meter to test LEDs / measurement range from 0.05 to 7000 lumens / automatic change of the range in 4 levels / large LCD display with 5 digits for 38,000 values / software and data cable for data analysis are included

The PCE-LED 1 Light Meter is used to check LEDs via an external sensor. With the PCE-LED 1 Light Meter you will be able to perform single or series measurements with a predetermined reference value. The measured values can be automatically or manually stored in the internal memory of the PCE-LED 1 Light Meter and can be transferred to a PC or laptop. The software and data cable are included in the delivery. The adapted plaques allow you to check LEDs with a diameter between 2 and 24 mm. LEDs cannot be produced with constant optical properties due to their manufacturing process. Even within the same production series, LEDs can differ regarding the brightness and colour of their components. Thus, LEDs have to be checked during the production stage as well as at the end of the process with the PCE-LED 1 Light Meter. Additionally, within the research and development of LEDs and products with LEDs, a wide optical characterization is always required. Our PCE-LED 1 Light Meter allows you to test the LED status quickly and easily. Here you will find an overview of all the light meters available at PCE-Instruments.

 -  Large LCD display with 5 digits

 - Measurement range from 0.05 to 7000 lumens

 - Resolution of 0.001 in range of 9999 lumens

 - Sensor: Silicon photodiode

 - Memory for 38,000 values

 - HOLD function

 - Reference measurement

 - Accurate and quick response

 - Setting of measurement rate from 1 to 60 seconds

- 6 x 1.5 V AAA batteries and carrying case

- Auto shut-off to save battery life

- Automatic change of the range

- Software and data cable included in the delivery

View or print user manual of the
PCE-LED 1 light meter

Ranges

0.05 ... 7000 lumens in 4 ranges
0.05 ... 9.999
10.00 ...99.99
100.0...999.9
1000 ... 7000

Resolution

0.05 ... 9.999/0.001 lumen
10.00 ... 99.99/0.01 lumen
100.0 ...999.9/0.1 lumen
1000 ... 7000/1 lumen

Accuracy

0.05 ... 1.0/±7 %
0.1 ... 1000/±2 %
1000 ... 7000/±3 %

Overload indicator

OL = Overload

Sensor

silicon photodiode

Sensor connection

25 mm with adapter for 2, 3, 4, 5, 8, 10 and 24 mm

Measurement sequence

every 5 seconds

Memory
 - manual
 - automatic

999 values
38,000 values

Operating conditions

0 ... 50 ºC/0 ... 80 % r. H

Storage conditions

-10 ... 60 ºC/0 ... 70 %r. H

Display

4 digits LCD display

Power

6 x 1.5 V AAA batteries

Dimensions
 - Meter
 - Sensor
 - Connection

150 x 72 x 35 mm
108 x 94 mm
800 mm

Weight

470 g

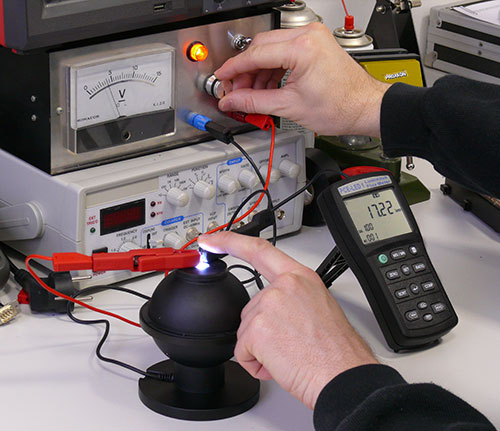

Use of the PCE-LED 1 Light Meter

Delivery content
1 x PCE-LED 1 Light Meter
7 x adaptors
1 x software and data cable
6 x 1.5 V AAA batteries
1 x carrying case
1 x user manual

Optional accessories
- ISO laboratory calibration with a certificate
An ISO certification consists of a laboratory calibration and a certificate according to the ISO standard. The document shows the name of the company or customer.  It can be ordered with the device or as an annual recalibration.
