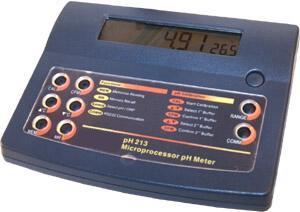

pH Laboratory Meter 213
bench and laboratory meter for pH /mV /°C with RS-232 interface and software

This pH laboratory meter is directed by a processor. Its measurement range from -2 to +16 pH is adapted to the necessities of a laboratory. This pH meter also measures potential REDOX and ion concentration. The temperature sensor automatically obtains compensation of the temperature. The calibration is made automatically (1 or 2 calibration points). There is a menu that guides us in the process. The pH laboratory meter offers the possibility of transmitting the data to a PC (RS-232 interface ). This way it is possible to take pH values directly onto a computer. By means of software you will be able to create and evaluate data. (Definition of pH)

- Measures pH, temperature, REDOX and ISE.

- High precision.

- RS-232 interface to transmit data.

- Software to analyse data.

- Excellent relation quality / price

Measuring range

-2,000...16,000 pH
+- 999.9 mV (ISE u. ORP)
0...+100 °C

Resolution

0,001 pH
0.1 mV (ISE u. ORP)
0.1 °C

Accuracy (@ 20°C)

±0.002 pH
+- 0.05 % P.E. (ISE u. ORP)
+- 0.5 °C

EMC typical deviation

±0.01 pH
+- 0.6 mV
+- 0.5 °C

Calibration

automatic, 1 or 2 point calibration

Temperature compensation

automatic or manual from 0...+100 °C

Electrode

pH glass electrode, refillable,
 1 m cable and  BNC connector

Stainless steel 1 m cable

IRS 232 interface

Power supply

12 VDC adapter

Environmental conditions

0...50 °C and 95 % Hr

Dimensions

240 x 182 x 74 mm

Weight

1.1 kg

Delivery content

1 x pH laboratory meter 213, 1x pH electrode, 1 x  temperature sensor, 1 x 12 VDC power adapter, 1 x carrying case, user manual
