Stroboscope (fixed) - LOL 5-120
Stroboscope for printing and paper making with external trigger
|
This stroboscope can be used for installing or fixing printing machines. With the stroboscope, you can irradiate an area of 22.5 cm at a distance of 50 cm and stop optically. It is easy to install in virtually any location of the machine due to its small size. For its external trigger output, the stroboscope can be adjusted to the speed of the machine. If you have questions about the mini photometer, see the technical data below or contact us. Our technicians and engineers will gladly advise you on this stroboscope and of course, on the other products in the field of regulation and control, measuring instruments and scales or balances.
|
|

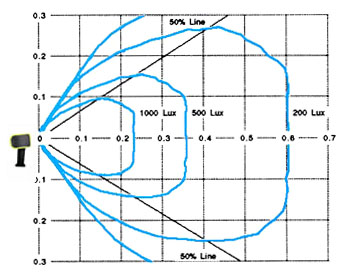

Conical beam of light from the strobeoscope 5 LOL
|
- Trigger input
- 5 digits display
- Range selection
|
- Fast and fine adjustment
- ABS enclosure
- Multiplier switch x2 y x½
|
Technical specifications
|
Measurement range
|
1 ... 12,000 / min (1 ... 200 Hz), adjustable with the remote or rear part keyboard or to graduate from the outside (external trigger input)
|
Resolution
|
1 / min of the indicated value
|
Accuracy
|
±0.01 % of the reading
|
Maximum intensity
|
1,000 lux at 24 cm 700 lux at 30 cm 0.29 joules / flash, flash rate of 3,600 / min 0.09 joules / flash, flash rate of 12,000 / min
|
External Trigger input
|
yes, positive pulse input (source) signals (2.4 V to 24 V peak amplitude / pulse width: 100 ms to 1 ms)
|
Flash duration
|
10 µsec
|
Flash colour
|
white, Xenon bulb
(approx. 100 million flashes)
|
Display
|
red LED, 5 digits, 7.6 mm height
|
Power supply
|
240 VAC ( with mains adapter)
|
Housing
|
ABS plastic
|
Dimensions
|
135 x 135 x 98 mm
|
Weight
|
900 g
|
Delivery contents 1 x LOL strobe 1-5-120, 1 x Xenon flash bulb, 1 x adapter cable to the network, 1 x mains adapter (240V), user´s manual.
|
Optional accessories - Replacement Xenon flash bulb. - UV flash bulb. - External trigger cable for external graduation. - Connection plug to the trigger. - Fixing set (rotating foot and head)
|
|
|
