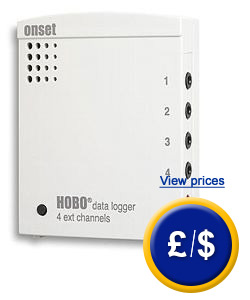

Temperature Data Logger Hobo U12-006
 4 channels, external inputs, USB port

The handy temperature data logger Hobo U12-006 measures temperature values with 4 external channels. The inputs of the temperature data logger Hobo U12-006 are ideal for temperature sensors and cables, AC current, 0 ... 2.5 V DC and 4 ... 20 mA. The temperature data logger Hobo U12-006 works completely independently, this means that it needs no external power. The temperature data logger Hobo U12-006 offers additional protocol events; it protocols the activation key, the PC connection and the battery status. Thanks to its data memory EEPROM, the values are stored even if the battery fails. The temperature data logger Hobo U12-006 is programmed through the optional software, and it is also through this software that we read the measured values. The optional software is needed to activate and program the data logger.

User manual for the Temperature Data Logger Hobo U12-006.  EC certificate for the Temperature Data Logger Hobo U12-006.  Video for the Temperature Data Logger Hobo U12-006. Temperature Data Logger Hobo U12-006: Software Technical specifications for the Temperature Data Logger Hobo U12-006.  Information for the Temperature Data Logger Hobo U12-006.

- Memory: The unit can record a total of 43,000 readings (using 4 channels the values are divided into 10,750 measurement values per channel)

- Measurement rate: adjustable from 1 second to 18 hours,  measuring time up to 1 year

- External sensors for temperature and humidity or temperature and electrical signals

- No need of calibration

-  Start time and date can be programmed

- EEPROM data memory: you do not lose data when the battery voltage fails.

- Blinking LED indicates the function

Temperature Data Logger Hobo U12-006 with 4 channels, external inputs, USB port.

 Temperature Data Logger Hobo U12-006

Technical specifications

Memory

43,000 values

Data transfer

USB (complete downlad in 30 seconds)

Measurement rate

from 1 second up to 18 hours

Battery

replaceable lithium battery CR-2032

(one year of continuous working)

Environmental conditions

-20 ... +70 °C

5...95% R.H. (non condensed)

Dimensions

58 x 74 x 22 mm

Weight

46 g

Delivery content

1 x temperature data logger Hobo U12-006 (battery included), 1 x user´s manual

Optional components

Easy set up

Selection of all parameters, including: the measurement channels that are activated. Measurement range. Immediate or delayed start, or start externally activated (Trigger button). Checking of the battery capacity



Real time monitoring

Numerical representation in real time on the computer. Data storage free of interruptions during transmission to the computer and during the verification of the state.

Temperature Data Logger Hobo U12-006 software.

Temperature sensor

Sensor cable with a length of 180 cm, the sensor is suitable for measurements of gases and water. However, it is not ideal for continuous use in the water. The continuous use in water below 30ºC should not exceed the maximum time of 3 months  and up to 1 month with temperatures above 30 ° C.

Range

-40 ... +100 °C (in air)

Accuracy

 from ±0.5 °C to 20 °C

Resolution

from 0.4 °C to 20 °C

Time of stabilisation in air

approx. 4.5 min (is static air)

Time of stabiisation in water

approx. 1 min (in water movement)

4...20 mA cable

Range

0 ... 20 mA

Accuracy

±0.1 mA ±1 % of measurement value

Resolution

0.4 % of final value

Length

45 cm with open ends

2.5 V cable

180 cm cable with open ends for direct connection to the temperature data logger U12-006, that is, for inputs 0 ... 2.5 V DC

10 V cable

180 cm cable with open ends for direct connection with the temperature data logger U12-006. In case you needed to have a signal from 0...10V, this is reduced to 2.5V due to integrated voltage dividor. It is used in many different industry aplications.

Current sensors (note: not approved by EC) can be obtained on request for 0 ... 20 A, 0 ... 50 A, 0 ... 100 A, 0 ... 200 A and 0 ... 600 A. The accuracy is ± 2% of final value. Input signal: AC, 50 or 60 Hz

Technical specifications for the Temperature Data Logger Hobo U12-006. return to homepage
