Infrared camera PYROVIEW 380 L compact |
||
|
The infrared camera provides an easy and non-contact measurement of two-dimensional temperature distributions, which has a thermal and spatial resolution. Therefore, the infrared camera especially designed for industrial use is suitable. For the measurements with the infrared camera provides you with a spectral range of 8 microns to 14 microns are available. This is for general measurement and monitoring. Best results are ensured through the various lenses that are included with the infrared camera. With a helpful and fast real-time data transmission via Ethernet allows the infrared camera, a measuring frequency of up to 50 frames per second on a PC. For a stationary infrared camera, which is in constant use, it is important that it also has a stand-alone operation and therefore works without computer. As additional features, the compact infrared camera PYROVIEW 380 L next to an alarm and threshold monitoring also triggered measurements. The products are in a compact aluminum housing. The package also still on-line software PYROSOFT is included, which allows, among other things, to control the camera and monitor. In addition, it is a view, manipulate and store the measured data is possible. An overview of all infrared cameras you see when you follow this link: thermography cameras. If you have any questions about the infrared camera PYROVIEW 380 compact L, look at the following technical data or use our contact form. Our technicians and engineers will assist you in regards to the thermal imaging cameras or any other product on the field of control technology, laboratory technology, our instruments and the scales of the PCE Germany GmbH If you have any questions about the Infrared camera look at the following technical data or use our contact form or call us on:
|
||
|
|
||
|

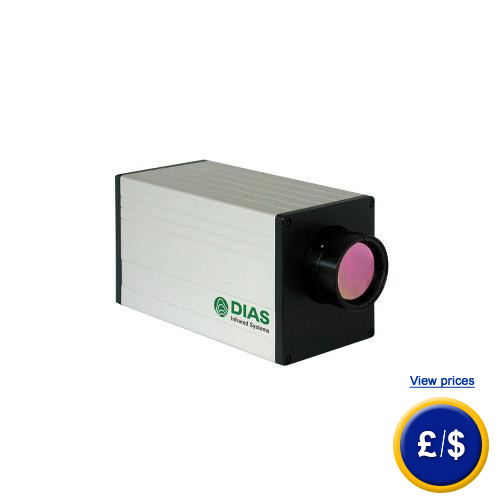

Infrared camera PYROVIEW 380 L compact Infrared camera PYROVIEW 380 L compact |
||
| - Spectral range of 8 microns ...14 microns - Four different lenses - Measuring frequency:max.50 frames per second - Real-time data transfer and storage |
- With online software - Definition of zones and alarm monitoring - Trend Analysis - Export data (text, bitmap, video) |
|
| Technical specifications | ||
|
Resolution |
384 x 288 pixels |
|
|
Optics 1 |
22 ° × 16 °, measuring distance> 20 cm, spatial resolution 1.0 mrad Focus: Autofocus |
|
| Optics 2 | 30 ° × 23 °, measuring distance> 20 cm, spatial resolution 1.4 mrad Focus: Autofocus |
|
| Optics 3 | 44 ° × 34 °, measuring distance> 20 cm, spatial resolution of 2.0 mrad Focus: Autofocus |
|
| Optics 4 | 60 ° × 47 °, measuring distance> 20 cm, spatial resolution of 2.7 mrad Focus: Autofocus |
|
| Sensor | uncooled microbolometer array | |
| Uncertainty | 2 K (temperature <100 ° C) or 2% of reading | |
| Measuring frequency | internal 50 Hz, selectable 50 Hz, 25 Hz, 12.5 Hz | |
| Response time | internal 40 ms, selectable: 2/Messfrequenz | |
| Interfaces | Ethernet (real-time 50 Hz) | |
| Digital inputs | 2 electrically isolated inputs (trigger) | |
| Digital outputs | 2 isolated outputs (alarms) | |
| Power supply | 10 V ... 36 V DC, 4 VA typical ... 10 VA | |
| Camera housing | Compact aluminum housing IP 54 | |
| Dimensions | 85 mm x 175 mm x 107 mm (L x W x H) without lens and connectors |
|
| Working temperature of the camera | -10 ° C ... +50 ° C | |
| Storage Conditions | -20 ° C ... 70 ° C, max. 95% rel. humidity | |
| Contents Stationary Infrared Camera / Resolution: 384 x 288 pixels / for non-contact measurement of two-dimensional temperature distributions / Aluminium compact housing IP 54 / 4 different lenses / Spectral range: 8 ... 14μmsurfaces / calculation of volume |
||
 |
 |
|
