Pedal force PKH 2.0

Pedal force PKH 2.0 Pedal force PKH 2.0 Pedal dynamometer for measuring pressure force to the brake pedals of cars and trucks / N ranges from 0 ... 1500 N / mechanical overload protection

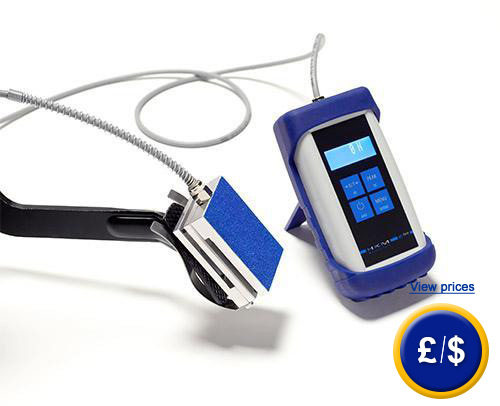

The HKM - pedal force are specially designed for testing in the car - developed test area. The pedal force meter series PKH 2.0 were developed specifically for the force measurement in cars and trucks, and here the forces are measured, the effect on the brake pedal and hand brake. In the measurement of our pedal force meter is fixed only by means of a clamping bracket on the brake pedal or attached via a belt by the hand brake. For reading off the pedal force meter, there are two different ways. First, it is possible that the measured values are output analog. There are a sensor, which is equipped with a measuring amplifier integrated. The other variant edition is the combination of pedal power meter with a hand-held terminal, which fits to the pedal force meter PKH 2.0. The measuring values are directly read from the display of the handheld and the maximum measured value is obtained by pressing a button. Depending on the nature of the handheld from the pedal force meter PKH 2.0 still exists even the possibility of a printer to be connected, which can prove to the measure as a big advantage, because a detailed analysis of the test can be performed after a targeted and one of the more these test results also Archiving can order them if necessary draw on subsequent test again for help. Our pedal force gauges are characterized by a compact design and high stability. When pedal force PKH 2.0 there is a calibratable device, which we request from you for a calibration laboratory, with which we work together, can be calibrated. If you have any questions about the pedal force meter, check the following technical data or use our contact form. Our technicians and engineers will assist you in regards to the pedal force or any other product on the field of control, measurement, laboratory or weighing.


- Ranges from 0 N to 1,500 N - For pressure forces - Various selection options - For cars and trucks	- Mechanical overload protection - High accuracy - Ideal for force measurements - calibrated
General technical specifications of the pedal force meter PKH 2.0
rated load	0 ... 1500 N
accuracy	0.5% f.s.
protectionDimensions (pedal force)	IP 65
Dimensions (Hand Terminal)	50mm width x 70mm length x 27mm heigh
Dimensions (Hand Terminal)	78 mm width x 145 mm length x 44 mm height
LCD - display	12-digit, 2-line
supply	4 x AA battery
protection	IP 40
Operating	0 ° C ... +50 ° C
housing	ABS
admission	APK-acceptance in the Netherlands
Delivery contents 1 x PKH 2.0 Pedal force, 1 x user's manual
