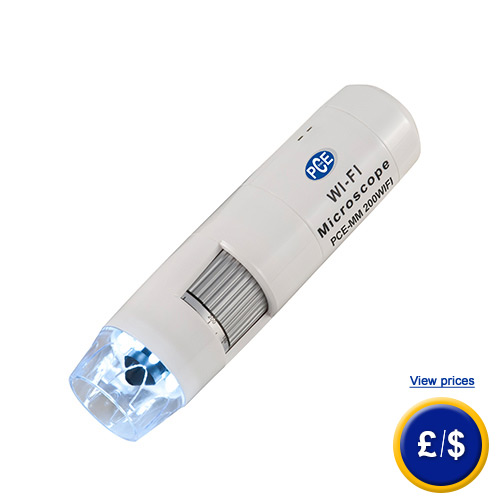

Wi-Fi microscope PCE-MM 200 Wi-Fi
Wi-Fi microscope for "live" presentation at computer, smartphone and tablet /
640 x 480 pixels resolution / microscope with up to 200-fold magnification /
measuring function within the microscope

The Wi-Fi microscope displays objects in a "live" presentation with a maximum of 200-folds magnification at computer-displays, tablets as well as smartphones. The WiFi-microscope transmits the video signal via Wi-Fi. Thus several devices can be connected to the Wi-Fi microscope at the same time. Furthermore there is not only the option of connecting the WiFi microscope with a computer, but also with a with smartphones or even tablets. A connection can be established to any iOS, Android and Windows Phone system. The Wi-Fi micrsocooe is small and handy as well as easy to navigate. In order to control the Wi-Fi microscope via a tablet or smartphone, the required app is sent on the provided CD and can be downloaded from any app store for free. After downloading that app, you can easily control and navigate the Wi-Fi microscope from any tablet or smartphone. The Wi-Fi microscope is ideal to apply for professional reasons, just as a hobby, for research or educational purposes (e.g. surface examination, facilitate reading, to examine coins, post stamps or to examine plates). In case that you should have more questions regarding the Wi-Fi monitor PCE-MM 200 Wi-Fi, please read the following technical data, use our contact form or call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the microscopes or all other products in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

 Wi-Fi microscope    User's manual for the Wi-Fi microscope PCE-MM 200 Wi-Fi    Wi-Fi microscope PCE-MM 200 Wi-Fi    Video of the Wi-Fi microscope PCE-MM 200 Wi-Fi    More pictures of the Wi-Fi microscope    Technical specifications  for the Wi-Fi microscope PCE-MM 200 Wi-Fi

Wi-Fi microscope PCE-MM 200 Wi-Fi

- Continuous magnification from 5 ... 200 - folds
- Extra bright white LED lights
- Power Supply via USB
- Resolution at monitor 640 x 480 pixels

- Imaging frequency: 20 images per second
- Microscope with image- and video- function
- Small design
- Only Wi-Fi connection

Technical specifications

Resolution

640 x 480 pixels

Magnification

continuous 5 ... 200-folds

Colors

24 bit RGB

Light source

8 x white lights

Image frequency

20 images per second

Video format

MJPG

Image format

JPEG

Power Supply

USB

Lights

8 white LEDs with stepless regulation

Dimensions

142 x 37 mm

Weight

100 g

Focus range

0 ... 40 mm

Wi-Fi standard

IEEE 802.11 b/g/n

Compatible systems

Windows, Mac, IOS, Android, Windows Phone

Language

English

Wi-Fi microscope PCE-MM 200 Wi-Fi application
The Wi-Fi microscope: analyzing a 50 € banknote

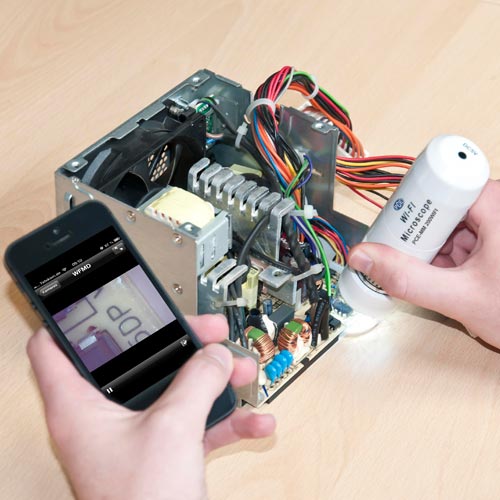

The Wi-Fi microscope PCE-MM 200 Wi-Fi used to examine a circuit board
The Wi-Fi microscope used to examine a circuit board

With the provided carrier, the Wi-Fi microscope can be protected from any stains. The CD that is included in the delivery, included an instruction manual as PDF and the app for Android software. The apps for iOS or Windows Phone must be downloaded from app stores (free download). For iOS the "Netcam Viewer" is recommended, while for Windows Phone "Webcam Pi" might be your best option. In addition to the Live-presentation function of the Wi-Fi microscope, you can also take snap shots via the app for Android. The LEDs at the Wi-Fi microscope can be dimmed continuously, thus even very dark locations can be examined easily. The Wi-Fi microscope is to recharge with a USB cable or via computer. The provided socket adapter  allows recharging the Wi-Fi microscope via home electricity.

PCE-MM 200 Wi-Fi microscope delivery

Delivery Content

1 x Wi-Fi microscope, 1 x software, 1 x instruction manuals, 1 x holder, 1 x USB adapter,
1 x USB recharging cable

Technical information of the Wi-Fi microscope PCE-MM 200 Wi-Fi.
