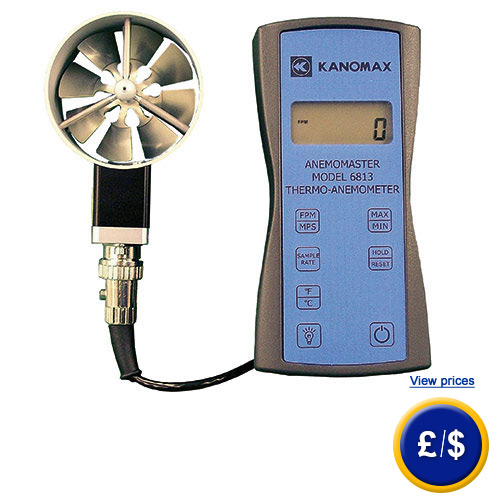

Wind Velocity Meter KM series
Air
Velocity Meter with metal Fans / Air Velocity with available Probe AP275 or AP
100 /
for the measurment of Air Velocity / KM 6813 for measurment of temprature /
with USB-interface
|
|
The wind velocity meter is an anemometer that is easy to handle and that captivates especially through its high accuracy and resolution. The wind velocity meter is available in three variants depending on whether you wish to measure just accuracy and air flow or temperature and air humidity at the same time. The robust design of the air velocity meter is particularly suitable for using in the industrial sector for measuring of air channels and ventilation shafts in industrial plants. With its selectable size of vane sensor made of metal the wind velocity meter can be attuned to its special measurement tasks in the air
channel of the air velocity meter. You can find further wind velocity meters with interface and memory as well as data cable and software for transmitting measurement values to a PC or notebook if you follow this link wind velocity meter. If there are any questions about the wind velocity meter KM series, have a look at the following technical specification or call:  UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all wind velocity meter and all products in the field of regulation and control,
measuring instruments and
scales.
|
|


|
|
|
|
- Reinforced metal probe
- High sensitivity at lower speeds
- Selectable vane sensor
- Minimal and maximal values
|
- High accuracy and resolution
- Specifically for industrial use
- Analogue output and connection for PC
- Long lasting battery lifetime
|
|
Technical
Specifications of the wind velocity meter KM 6812
|
|
Air
Velocity
|
Probe
AP275 |
0,2
... 40 m/s
|
|
|
Probe
AP100
|
0,3
... 35 m/s
|
|
|
Accuracy
|
±1,0
%
|
|
|
Resolution
|
0,1
m/s
|
|
Technical
Specifications of the wind velocity meter KM 6813 with temperature probe
|
|
Air
Velocity
|
Probe
AP275
|
0,2
... 40 m/s
|
|
|
Probe
AP100
|
0,3
... 35 m/s
|
|
|
Accuracy
|
±1,0
%
|
|
|
Resolution
|
0,1
m/s
|
|
Temperature
probe
|
Range
|
-20
... +100 °C
|
|
|
Accuracy
|
±0,3
°C |
|
|
Resolution
|
0,1
°C
|
|
General
Technical Specifications of the wind velocity meter
|
|
Operating Temperature
|
Device
|
0
... +50 °C
|
|
|
Probe
|
-20
... +100 °C
|
|
Power
supply
|
|
3x
AA batteries
|
|
Operating time
|
|
about
150 hours
|
|
Dimensions
|
Device
|
82
x 38 x 165 mm
|
|
|
Probe
AP275
|
Ø
70 mm
|
|
|
Probe
AP100
|
Ø
25 mm
|
|
Display
|
|
0,5"
LCD-Display, LED lights
|
|
USB
Interface
|
|
Yes
|
|
Available
Versions |
|
KM 6812/275 USB - KM 6812 with Probe AP275, inc. USB
Interface
|
|
KM 6812/100 USB - KM 6812 with Probe AP100, inc. USB
Interface
|
|
KM 6813/275 USB - KM 6813 with Probe AP275, inc. USB
Interface
|
|
KM 6813/100 USB - KM 6813 with Probe AP100, inc. USB
Interface
|
|
Delivery
content
|
|
1x Air Velocity Measurement Device KM with metal
vane probe AP275 or AP100,
|
|
1x Temprature Probe (only with model 6813), 3x AA
Batteries, 1x Case, 1x Manual
|
|
|
Additional
|
|
ISO
laboratory calibration and certificate for companies that wish to include
the wind velocity meter into their testing equipment set or for the annual
calibration. The certification according to ISO includes a laboratory
calibration test certificate with all measurement values inclusive.
|
|
|
|
|
|
Here you will find further similar products regarding ‘wind velocity meter’: |
|
-
PCE-009 series wind velocity meter
(telescopic probe, internal memory, RS-232, software, etc) |
 |
|
-
AVM-4000 series wind velocity meter
(wind speed, temperature, relative humidity, ...) |
 |
|
-
PCE-AM81 series wind velocity meter
(multiple unit indicator (m/s, knots, km/h, ...) ) |
 |
|
-
PCE-A420 series wind velocity meter
(wind direction will not influence the measurement) |
 |
|
|
