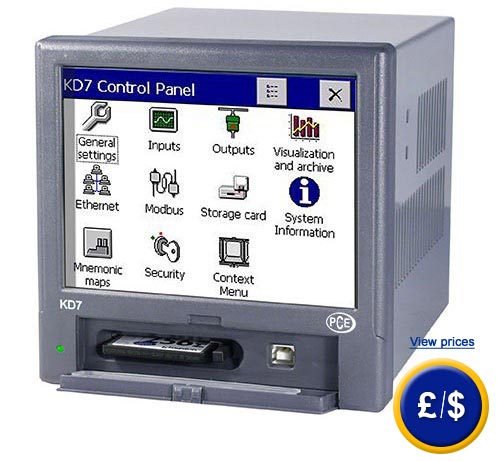

PCE-KD7 digital recorder
to process voltage, current, thermo-elements, resistance / with alarm function / 5,7" touch-display/ records in CF card up to 4 GB/ mathematical functions / several digital interfaces: Enthernet, USB 1.1, RS-485, RS-232 / up to 12 channels

The PCE-KD7 digital recorder can be used as a datalogger in control and measurement systems. This PCE-KD7 digital recorder has a wide range of application as the measuring, displaying, controlling and recording of process magnitudes in different industrial secors as for instance, the pharmaceutical, chemical and food industry. The PCE-KD7 digital recorder can process current or voltage normalized signals as well as diverse thermo-elements and resistance sensors. The PCE-KD7 digital recorder can also recover and record up to 16 measurement values through a Ethernet or RS-485 digital interface. Data is stored in a CF card. An internal buffer memory allows to change the memory card without the lost of measured data. Data is shown on the 5,7" touch-display with a resolution of 320 x 240 pixels. Input signals can be compensated with mathematical functions which extends the field of application of the PCE-KD7 digital recorder. Since the PCE-KD7 digital recorder comes with a IP 65 protection in the front, it can be installed under adverse conditions. By means of the software modules included in the delivery, you can read and check recorded data. Also, configuration data can be produced and transferred to the PCE-KD7 digital recorder. Here you will find an overview of our digital recorders.

View or print user's manual of the PCE-KD7 digital recorder

- 320 x 240 pixels touch display
- Different digital interfaces
- Internal memory: 6 MB
- CF card slot: 16 MB to 4 GB
- Direct connection to temperature sensors

- 3.6 or 12 analog inputs
- Configuration via the software
- 8 or 16 digital inputs.
- 4 or 8 analog outputs.
- Mathematical functions
- Meets the EN 610-1 CAT II standard

Technical specifications

Inputs

Number of analog inputs

3, 6 or 12

Number or digital inputs

8 or 16 inputs

Possible input signals

Voltage: ±10 V
Current: ±20 mA
Thermo-elements: J, K, N, E, R, S, T, B
Resistance sensors: Pt100, Pt500, Pt1000, Ni100, Cu100
Resistance: 2,000 Ω
Digital: 0/5 ... 24 V DC (max. 50 Hz)

Outputs

Number of analog outputs

4, 8 or 12

Number or digital outputs

8 o 16

Analog output signal / maximum load

Current: 0 ... 50 mA o 0/4 ... 20 mA, <500 Ω
Voltage: 0/1 ... 5 V, >250 Ω o 0 ... 10 V, >500 Ω

Alarm relay

Electromagnetic relay:
250 V AC, 1 A
30 V DC, 1 A
OptoMOS relay:
85 V DC, 100 mA
60 V AC, 70 mA

Sensor power supply

2 x 24 V DC, 30 mA

 Digital interfaces

RS-232, MODBUS Slave, 0.3 ... 256 kbit/s
RS-232, MODBUS Slave, 0.3 ... 256 kbit/s
USB 1.1
Ethernet 10 Base-T

General information

Powe supply

90 ... 253 V o 18 ... 30 V DC

Temperature

Operating temperature: 0 ... 55 ºC
Storage temperature: -20 ... 60 ºC

Relative humdity

<70 % non-condensing

Display

5.7" touch-display, 320 x 240 pixels

Dimensions

144 x 144 x 155 mm

Weight

2 kg

Protection

Front: IP 65
Connections: IP 20

Absorbed power

<30 VA

Security Category

EN 610-1, CAT II 500 V

Here you can see different presentation modes to represent measured values with The PCE-KD7 digital recorder Apart from showing the graphic development, it can also show data as a bar graph.

Delivery contents
PCE-KD7 digital recorder, software, USB cable, mounting material and connection, CF card and user's manual
