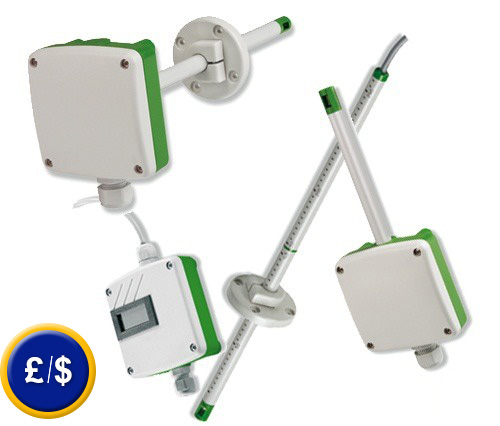

EE 65 air flow sensor |
|
|
The EE 65 air flow sensor is used to make accurate measurements of air flow speed within heating, ventilation and air-conditioning sectors. Due to its compact design the EE 65 air flow sensor can be used almost in any field of application. The air flow sensor has an multidirectional sensor with a modern film technology which makes the sensor head resistant against dust and dirt. Apart from measuring air flow speed, the EE 65 air flow sensor transmits a normalized signal of 4-20 mA or a voltage one of 0-10 V. it is possible for the user to adjust the measurement range, output signal and response time according their needs, therefore the sensor can be freely set up. The EE 65 air flow sensor can be wall mounted or pipe mounted by means of a mounting support. Sensors can be fixed-mounted or displaced by a connection cable, so the EE 65 air flow sensor has a wide field of uses within the heating, ventilation and air-conditioning systems. In case you had any question on the air flow sensor, consult the technical data next or contact us: +44 ( 0 ) 2380 98703 0 . Our technicians and engineers will advise you on this air flow sensor or any other product our regulation and control systems, meters or scales of PCE Instruments. |
|
|
|
|
|
EE 65 air flow sensor |
|
|
- Omnidirectional |
- Individual use |
| Technical specifications | |
| Air velocity | |
| Measurement Range | 0 ... 1 m/s 0 ... 1.5 m/s 0 ... 2 m/s |
| Accuracy (in the air at 25 ºC, 45 % r.H., 1013 hPa) | 0.15 ... 1 m/s: ±(0.04 m/s + 2 % of the measurement value.) 0.15 ... 1.5 m/s: ±(0.05 m/s + 2 % of the measurement value.) 0.15 ... 2 m/s: ±(0.6 m/s + 2 % of the measurement value.) |
| Response time T90 | 4 s or 0.2 s |
| General information | |
| Power supply voltage | 24 V DC/AC ±20% |
| Input current | max. 160 mA wiht AC power supply max. 90 mA with DC power supply |
| Connections | Screw terminal max. 1 mm2 |
| Electromagnetic compatibility | EN61326-1; EN61326-2-3 |
| Material |
Polycarbonate |
| Protection | IP65, with IP 40 display |
| Operating temperature: Sensor | -25 ... 50 ºC |
| Operating temperature: electronics |
-10 ... 50 ºC |
|
Storage temperature |
-30 ... 60 ºC |
|

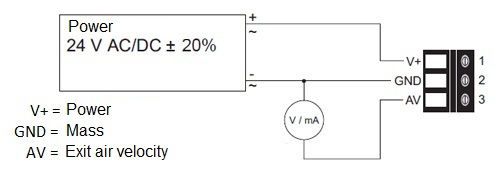

Connections |
|
 |
|
|

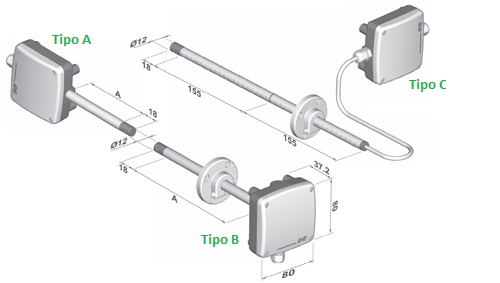

Dimensions |
|
|
|
|
| Delivery contents 1 x EE 65 air flow sensor and user's manual |
|
 |
 |
