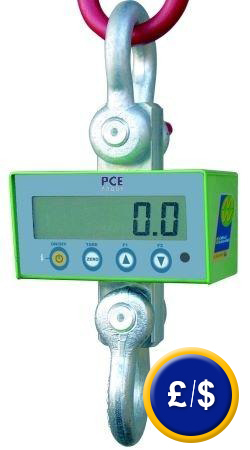

Hook Scale PCE-MCWNT-M Series (Verifiable Balanza de gancho verificable / verificada. class III)
Verifiable hook scale with a weight range up to 9000 kg, high accuracy, resolution from 0.5 kg, verified according to M III class, sum up function, indicator of maximum weight, piece counting function, it includes two shackles, remote control and carrying bag.

A verifiable hook scale is available in three versions with weight range up to 9000 kg, compact dimensions and can be used for many different purposes. The hook scale is powered by 4 conventional AA batteries. The verifiable hook scale batteries are in a kind of drawer, allowing a quick and comfortable replacemement. The operating time of the verifiable hook scale is approx. 40 hours. The verifiable hook scale has many functions, such as tare, peak value (peak hold), sum up function, control of weighing, weighing percentage, net and gross weight indicator and piece counting function. The values are displayed on LCD display of 25 mm height, which allows reading from a certain distance. You can handle the hook scale with a remote control, which is included in the delivery at a  distance up to 8 m.The verifiable hook scale is sent with 2 shackles, a remote control and a carrying case. The robust design allows to use it in heavy industry as well as in commerce, food and transportation industries. The hook scale is sent verified. This saves additional costs for verification. If you do not need any verification, you can ask for non-verified hook scale  If you have any questions about the hook scale, please read the technical data or contact us by phone. Our technicians and engineers will be happy to advice you on the verifiable hook scale or any other product of regulation and control, meters or scales of PCE Instruments.

Hook scale verifiable with weight range up to 9000 kg

 - Verifiable according to class M III
   verification
 - Accuracy of ± 003 % of the mass
 - LCD display with 25 mm hight digits
 - HOLD function
 - Piece counting  function
 - Weights addition function
 - Controlled weight function
 - Percentage weighing

 - Determination of the maximum weight
 - Gross and net weight indicator
 - 40 hours operating time
 - Remote control up to 8 m
 - 2 shackles
 - Carrying case

View or print the user manual for the
verifiable hook scale
User manual for hook scale

Technical specifications

Maximum weight of the hook scale

PCE-MCWNT 1M
PCE-MCWNT 6M
PCE-MCWNT 9M

1500 kg
6000 kg
9000 kg

Resolution/verification value of the hook scale

PCE-MCWNT 1M
PCE-MCWNT 6M
PCE-MCWNT 9M

0.5 kg
2.0 kg
5.0 kg

General observations

Verification

Verifiable according to class M III  verification (sent verified)

Accuracy

  ± 0.03 % of weight range

Tare range

over the full range

Response time

< 10 s

Display

6 digits,  LCD, 25 mm high digits

Measuring units

kg/%

Operating temperature

-10 ... +40 ºC/max. 85% H.r.

Power supply

4 x AA batteries, operating time of aprox. 40 hours (battery charger not included in the delivery)

Auto switch off

selectable from 1 to 255 minutes, it can be desactivated

Remote control

4 keys, maximum distancea: 8 m

Protection

IP 40

Weight

aprox. 12 kg

Information about PCE-MCWLT5M hook scale.

Obtener más informació about the hook scale PCE-MCWLT5M.

Dimensiones of the hook scale (see sketch)

A
(mm)

B
(mm)

C
(mm)

D
(mm)

E
(mm)

F
(mm)

G
(mm)

H
(mm)

I
(mm)

MCWNT1

193

175

49

24

44

133

104

330

153

MCWNT6

226

175

59

37

58

133

104

363

170

MCWNT9

246

175

80

46

74

133

104

430

180

Dimensions of the shackles (see sketch)

max.

A
(mm)

A
(inch)

B
(mm)

C
(mm)

D
(mm)

E
(mm)

F
(mm)

c.s

Weight
(kg)

MCWNT1

2 t

13

1/2

21

16

84

48

17.5

6

0.36

MCWNT6

6.5 t

22

7/8

37

25

146

84.5

29

6

1.87

MCWNT9

9.5 t

28

1"1/8

46

33

185

108

37

6

3.58

Delivery content
1 x verified hook scale (verfication included), 4 x  AA batteries, 1 x remote control, 2 x shackles, 1 x carrying case and user manual
