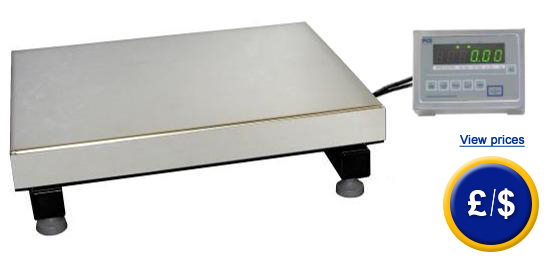

Verifiable Industrial Scale PCE-PM SST Series (Water resistant industrial scale (it can be calibrated).class III)
Waterproof  verifiable scale made of stainless steel with IP 67 protection (water and vapour resistant) verifiable according to M III standard / RS-232 interface, optional software

Verifiable industrial scale is made of stainless steel and has a separate display. This verifiable industrial scale has IP 67 protection against dust and  it is also water resistant (it is possible to sink the industrial scale into water up to 1 meter without any damage). You can use water to clean the industrial scale, so this scale is ideal to be used in wet areas. Industrial scale is powered by a standard 230 V/12 V.adaptor. Water resistant scale comes with embedded RS-232 interface. By means of the optional software, weighing data can be transferred directly to a computer. To meet ISO standard a calibration or a verification can be performed when the scale is ordered (for an extra price) or it can be done by any authorized laboratory or by your local authorised verification centre. Here, you will find an overview of all our industrial scales.



Stainless steel industrial scale

 - Water resistant stainless steel platform with            embedded weighing cell. IP 67 protection             against dust and water.

 - Indicator/display with IP 65 protection against        dust and water.

 - Memory and limit value selection

 - Weight with limit values. LED  visualisation           (desired limit values can be introduced)

 - Piece counting function with pre-established          quantity: 10, 25, etc.

 - External calibration (attention: only for                  non-verified scales!)

 - Powered by mains component

 - Verifiable to meet M III standard

 - Optional ISO certificate

Industrial scalel (display view)

View or Print instruction manual of the industrial scale
Industrial scale: see instruction manual.

Stainless steel industrial scale. Industrial scale platform: dust, water and vapours resistant. Industrial scale: weights with limit walues/weight with tolerance range within limits Verification of industrial scale to meet the M III standard. Stainless steel industrial scale with program to adjust accuracy. An external adjusting weight will be required. Industrial scale with piece count function: you can choose the reference piece number. With change of weighing indicator: weight or piece. Industrial scale with taring function (taring range in all the scale weight range). Industrial scale with RS-232 connection. Mains component for industrial scale.
Technical specifications

Industrial scale models

Range
[kg]

Readability
[g]

Verification value
[g]

Linearity
[g]

Platform dimensions [mm]

PCE-PM 30SST

30

10 g

10 g

± 10 g

400 x 460

PCE-PM 60SST

60

20 g

20 g

± 20 g

400 x 460

Display

20 mm LED

Stabilization time

3 seconds

Reference piece count function

10, 15, 20, 25, 50 ... pieces

Calibration

automatic/by measns of external adjusting weights

Tolerance weight

introducing the desired limit values

Interface

RS-232

Software

Additional devices

Mains adapter

230 V/50 Hz (by means of an included 12 V mains adapter)

Operating temperature

-10 ... +40°C

Protection

IP 67 (industrial scale)/IP 65 (terminal)

Approval

                          Legal for Trade Class III scale/CE

Delivery includes
1 x industrial scale PCE-PM SST, 1 x display, 1 x mains net adapter, user manual

Options

 - Software kit
The kit includes a software for transferring the  weighing data to a PC or Portable for printing, recording and testing data, and RS-232-cable. The transferred data can also be sent to other software such as Excel, etc. In case your PC or Portable uses USB-Interface, you can use the adapter together with the standard RS - 232 Cable


Industrial scale:software kit.

 - RS-232-USB Adapter (RS-232-USB)
Scale software is delivered with RS-232 cable. If you wish to transfer weighing data online to a PC or Portable or to any other software you will need the USB Adaptar (included with the actuals drivers)

Industrial scale: USB adapter.

 - Class M II Verification Certificate
Verification (only for those devices, that can be verified) can be done when the scale is ordered or as a reverification. Once an official verification has been done the scale cannot be recalibrated using an external calibration weight. The first verification is valid for two years, but every other verification is valid for one year and must be done annually.

Industrial scale: official verification certificate.

 - ISO Calibration Certificate
For those companies which want to include the industrial scale in their tools for control or anual recalibration. ISO certificate comes with a laboratory certification with all the measuring values. The name and details of the company or the customer can be included in the document.


Industrial scale: ISO calibration certificate.

Go to industrial scale PCE-PM-SST.
