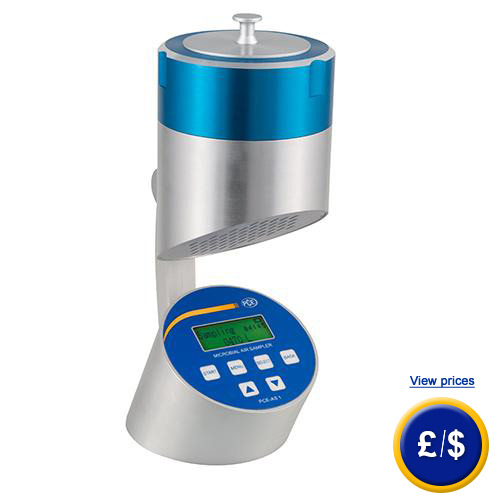

Air Sampler PCE-AS 1
air sampler to monitor microbial pollutants / LCD background lights /
based on the process of aerosol impaction / sample collecting head autoclaveable /
99 disk spaces for a maximum of 2000 measurements

The air sampler PCE- AS 1 is a device designed to monitor microbial pollution. Thus the air sampler fits many applications in various areas of production. The air sampler collects data about the quantity of microorganisms that tend to build colonies in areas of the pharmaceutical industry, the food and beverage industry, as well as in hospitals, the cosmetics industry and on fields of environmental protection and  monitoring. In order to analyze the microbial pollution the air sampler features standardized petri dishes that are to be placed inside the autoclaveable collector head. Therefore the air sampler PCE-AS 1 follows the aerosol impaction principle, where the microorganisms strike the petri dishes containing agar. Thus the sample can be incubated right away inside the air sampler. A simple navigation, an compact and handy design and a LCD display with background lights qualify the air sampler as a user-friendly device of its kind. The results of the relevant parameters can be saved on one of 99 disk spaces. A maximum of 2000 measuring data can be saved and recollected with time, date and volume on the device. Thus a repeatability of the collected data is simplified. It also assures a backup of at least 2000 measuring results on the air sampler itself. Another one of the many advantages of the air sampler would be that the volume of the sample that is to be collected cab be adjusted manually. Thus volumes between 10 and 6000 liters can be collected as samples whilst the flow capacity covers 100 liters per minute. Altogether the air sampler proves to be a mobile device that can be easily transported due to a featured operation on batteries and a robust transportation case. Thus it can be installed where ever the air shall be analyzed. In addition it can be then connected to a mains supply. If there are any questions about this air sampler, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding all air samplers and all products in the field of measuring instruments, regulation and control and scales.

Get more information on the Air Sampler  User manual for the Air Sampler  EC certificate for the Air Sampler  Video for the Air Sampler   Vibration Data Logger Air Sampler  Technical specifications of the Air Sampler

Additional information on the Air Sampler PCE-AS 1

- LCD with background lights
- Data storage for up to 99 parameters
- Autoclaveable collector head

- Adjustable volumes of up to 6000 l
- Powerful battery
- Supporting standard petri dishes

Technical Specifications of the Air Sampler

Number of micropores at collector head

498

Battery

6400 mA

Flow capacity

100 l/min

Flow rate at measuring head

0.38 m/s

Automatic control of measurement volume

10 ... 6000 l

Dimension of plate

ø 70 ... 90 x 15 mm

Data storage

max. 99 parameters and 2000 measurement values

Dimensions

ø 120 x 300 mm

Standards

ISO 14698-1

Weight

2.6 kg

Application images of air sampler PCE-AS 1

Air Sampler: from top
Here you can see an air sampler without the sampling head

Air Sampler: pipe input
Here you can see calibration attachment of the air sampler

Delivery Content of the Air Sampler PCE-AS 1

1 x air sampler PCE-AS 1, 1 x adapter for glass petri dishes featuring pipe input, 1 x mains plug,
1 x instruction manual
