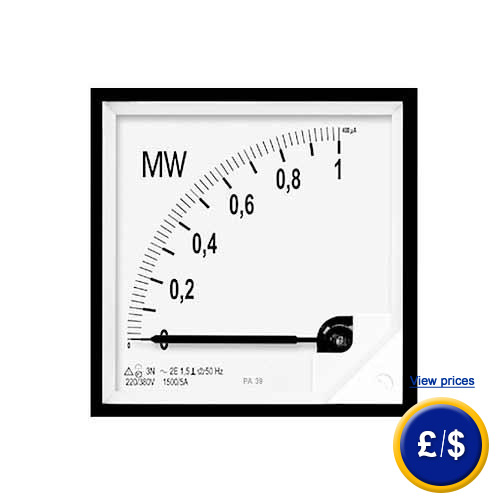

Analogue Wattmeter PCE-PA39
Analogue Wattmeter for permanent installation / 96 x 96 mm /
simple montage / measures active power and apparent power /
various installation angles / single- or three- phases

The analogue wattmeter PCE-PA39 is designed to monitor AC power. This analogue wattmeter can be installed onto switch panels. The analogue wattmeter PCE-PA39 is a moving-coil ammeter. Active power as well as apparent power can be measured by means of this analogue wattmeter PCE-PA-39. In addition the measurement can be performed in single- phase or three-phase with the analogue wattmeter. Through the correspondent current- and voltage- transformer, the analogue wattmeter is able to measure higher electric power as well. This analogue wattmeter features an instrument panel of 92 x 92 mm. In addition to measuring the transfer of power to a load, the analogue wattmeter can also measure the consumed power. If there are any questions about this analogue wattmeter PCE-PA39 , please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and technicians will gladly advise you regarding the analogue meters or any other products in terms of regulation and control, or scales and balances of PCE Instruments.

  Information for the Analogue Wattmeter PCE-PA39  User manual for the Analogue Wattmeter PCE-PA39  EC certificate for the Analogue Wattmeter PCE-PA39  Video for the Analogue Wattmeter PCE-PA39  Analogue Wattmeter PCE-PA39: Further Images  Technical specifications for the Analogue Wattmeter PCE-PA39

Analogue Wattmeter PCE-PA39

- moving-coil meter to measure electric power
- 96 x 96 mm
- Panel installation

- Long life time
- For single- and three-phase measurement
- Can be customized

General Technical Specifications of the Analogue Wattmeter PCE-PA39

Measuring range (voltage)

100 V, 133 V, 230 V, 280 V, 400 V, 500 V,
690 V

Measuring range (electric current)

1 A (x / 1 A), 5 A (x / 5 A)

Accuracy class

1.5

Frequency of measuring signal

45 ... 65 Hz / 400 Hz

Maximum operating voltage (P-N)

600 V

Measurement category

CAT III

Polluting grade

2

Overload

100 % of chosen measuring range

Front panel size

92 mm

Overall Size

96 x 96 x 45 mm

Scale length

95 mm

Weight

250 g

Electrical connection

screw clamps

IP code

IP 50

Surrounding conditions 5 ... 40 °C / 25 ... 85 % r.H.

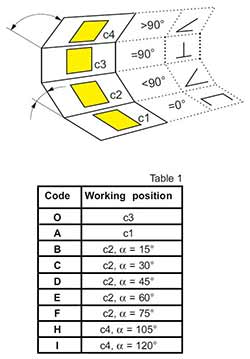

Installation Positions

Analogue Wattmeter PCE-PA39 installation angles

Delivery content of the Analogue Wattmeter PCE-PA39

1 x analogue wattmeter PCE-PA39, 2 x montage screws, 1 x instruction manual

Analogue Wattmeter PCE-PA39

Analogue Wattmeter PCE-PA39: return to homepage

Similar products to the Analogue Wattmeter  PCE-PA39:

- Analogue Wattmeter PCE-EA19I
  (similar to moving iron ammeter PCE-PA19U, but to measure electric current)

Analogue Wattmeter PCE-EA19I

- Analogue Wattmeter PCE-PA19U
  (for voltage measurement up to 250 kV, 96 x 96 mm front))

Analogue Wattmeter PCE-PA19U
