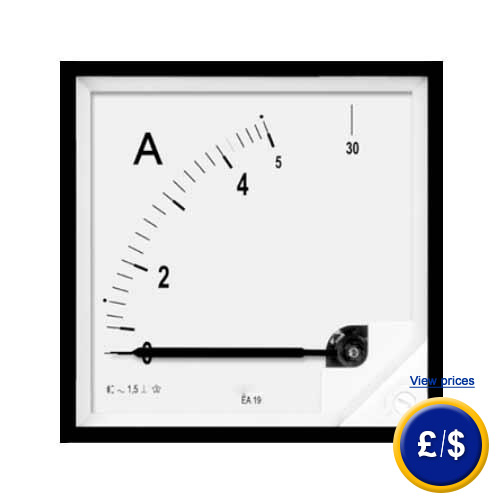

Moving Iron Amperemeter PCE-EA19I
Moving iron amperemeter to measure electric current / 96 x 96 mm /
simple installation / up to 100 A directly / various installation angles

The moving iron amperemeter PCE-EA19I is designed to measure electric currents in a simple way. This moving iron amperemeter is used in industrial branches. Due to a scale with the size of 95 mm, the measured current can be read clearly on this moving iron amperemeter. The moving iron amperemeter can measure currents up to 100 A directly (without a transformer) and does not require any separate power source. The moving iron amperemeter is simply connected in series to the measurement object. The overload counts 100 % of the defined measuring range of the moving iron ammeter. The measurements of the moving iron amperemeter are 96 x 96 mm and can be installed into 92 x 92 cutouts at switch panels. The protection class at the frontal side of the moving iron amperemeter is IP50. If there are any questions about this moving iron amperemeter PCE-EA19I , please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and technicians will gladly advise you regarding the analogue indicatorsor any other products in terms of regulation and control, or scales and balances of PCE Instruments.

  Information for the Moving Iron Amperemeter PCE-EA19I  User manual for the Moving Iron Amperemeter PCE-EA19I  EC certificate for the Moving Iron Amperemeter PCE-EA19I  Video for the Moving Iron Amperemeter PCE-EA19I  Moving Iron Amperemeter PCE-EA19I: Further Images  Technical specifications for the Moving Iron Amperemeter PCE-EA19I

Moving Iron Amperemeter PCE-EA19I

- Simplified current measurement
- 96 x 96 mm
- Panel installation

- Long life time
- Up to 100 A directly measurable
- Individually configurable

General Technical Specifications of the Moving Iron Amperemeter PCE-EA19I

Measuring range (for immediate current measurement)

100 mA, 150 mA, 250 mA, 400 mA, 600 mA,
1 A, 1,5 A, 2,5 A, 4 A, 6 A, 10 A, 15 A, 25 A,
40 A, 60 A, 100 A

Measuring range (for measurement by transformer)

... x / 1 A
... x / 5 A

Accuracy class

1.5

Frequency of measuring signal

45 ... 65 Hz

Maximum operating voltage (P-N)

600 V

Measurement category

CAT III

Polluting grade

2

Overload

100 % of defined measuring range

Front panel size

92 x 92 mm

Overall Size

96 x 96 x 45 mm

Scale length

95 mm

Weight

250 g

Electrical connection

screw clamps

IP Code

IP 50

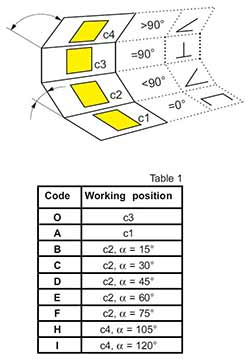

Installation Positions

Moving Iron Amperemeter PCE-EA19I installation angles

Delivery content of the Moving Iron Amperemeter PCE-EA19I

1 x moving iron amperemeter PCE-EA19I, 2 x montage screws, 1 x instruction manual

Moving Iron Amperemeter PCE-EA19I

Moving Iron Amperemeter PCE-EA19I: return to homepage

Similar products to the Moving Iron Amperemeter  PCE-EA19I:

- Moving Iron Amperemeter PCE-EA19U
  (similar to moving iron ammeter PCE-EA19I, but to measure voltage)

Moving Iron Amperemeter PCE-EA19U

- Moving Iron Amperemeter PCE-PA39
  (for performance measurement up to 1000 MW, 96 x 96 mm front))

Moving Iron Amperemeter PCE-PA39
