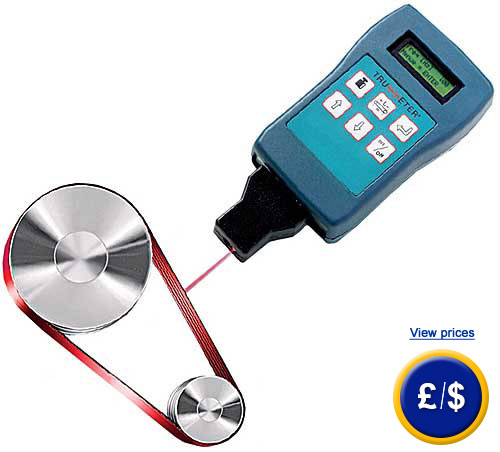

Belt tension meter PCE-BTM 2000
Belt tension meter for quick and accurate measuement of belt tension
Memory of 750 measured values / graphic display / easy operation / measuement in Hz and N

The belt tension meter is an optical measuring instrument for determining the belt tension. This belt tension gauge consists of a display unit and a sensor on a gooseneck. The belt tension meter measures the tension of the belt when it is at rest. A small impulse with the help of a mallet is enough to make the belt vibrate. The belt tension meter measures the natural frequency of the belt with a sensor beam and visualizes it on the display. Furthermore, the belt tension meter can directly determine the tension force of the belt from these measured data and the entered belt length and belt mass. However, it is not mandatory to enter these data in order to carry out measurements directly with the belt tension meter. The units of measurement of the belt tension meter can be switched: you can select either N (SI unit) or pound-force (US unit). The graphic display of the belt tension meter shows the measured value in Hz. If the belt mass and length are entered, the span force is also displayed in Newton. The intuitive graphic menu is visualised on the high-contrast display of the belt tension meter in 6 selectable languages. The belt tension meter has a memory for further analysis and quality assurance purposes. Up to 750 data sets can be saved to the memory of the belt tension meter. The memory comprises 15 folders with enough space for 50 measured values each.

The belt tension meter is ready for use straightaway upon receipt. The scope of delivery includes the hand-held device, the standard sensor with gooseneck, a magnetic holder, batteries and user manual. Optional accessories for the belt tension meter include an instrument case, frequency mallet, tripod and a sensor with spiral cable and a longer gooseneck (for belts that are difficult to reach).

 If there are any questions about these products, please contact us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. An overview of all force gauges can be found here: force gauges Our technicians and engineers will be happy to help you with this force gauge and all other products in the field of measuring instruments, regulation and control and scales

here you will find more information about the belt tension meter PCE-BTM 2000

more about the belt tension meter

-Measurement of the oscillation frequency of the belt
-Intuitive operation
-Calculation of the trum force in N
-Display of the belt tension in Hz

-6 menu languages
-Memory of 750 readings
-Sensor on gooseneck
-Belt length and belt mass can be entered

Technical specifications of the belt tension meter PCE-BTM 2000

Measuring range

10 ... 900 Hz

Accuracy

±(1 % of rdg. + 4 digits)

Repeadability

± 1 Hz

Resolution

<100 Hz: 0.1 Hz
>100 Hz: 1 Hz

Belt length

max 9.999 m

Belt mass

max 9.999 kg/m

Memory

750 readings
15 folders, 50 measured values each

Menu languages

German, English, Spanish, French, Italian, Dutch

Power supply

3 x 1.5 V AAA batteries

Operating condition

0 ... 50 °C / 32 ... 132 °F; max 95 % RH

Storage condition

-20 ... 65 °C / -4 ... 149 °F; max 95 % RH

Dimension

150 x 80 x 38 mm / 5.9 x 3.1 x 1.4"

Weight

approx 200 g / 7 oz incl. batteries

front of the belt tension meter





Sensor of the belt tension meter



Belt tension device in use

Why measure the belt force
Belt measurements are necessary  whenever optimum maintenance of machines and systems is important. A belt drive only achieves its maximum service life if it is tailored to its specific application. This means that the belt is optimally tensioned and the pulleys are precisely aligned. With the help of the belt tension gauge, the tension force (trum force) can be determined exactly when the belt is standing still.

Use of a belt tension meter

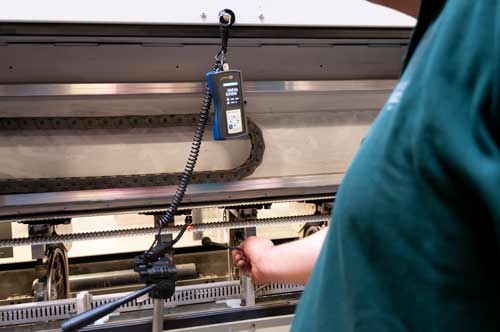

Belt tension meter at the machine

Optional sensor with goosneck and coiled cable

Standard package of the belt tension meter
Delivery contents of the belt tension meter PCE-BTM 2000
1 x belt tension meter PCE-BTM 2000, 1 x standard sensor head, 1 x magnetic holder, 3 x 1.5 V AAA batteries, 1 x user manual, 1 x carrying bag, 1 x calibration certificate
Optional accessoires for the belt tension meter
-Sensor with gooseneck and coiled cable
-Carrying case with foam insert
-Mallet for making the belt vibrate
-Tripod
long sensor of the belt tension device
