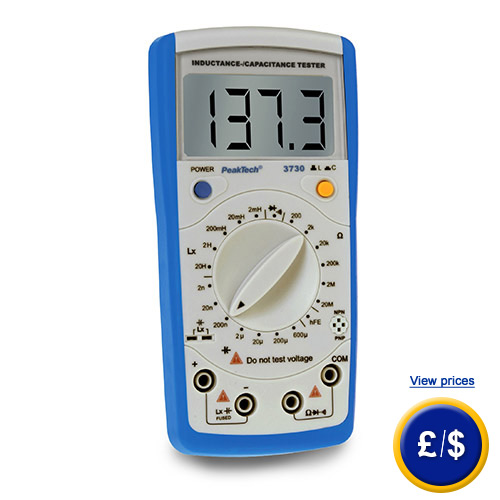

Digital LCR-Tester Peak Tech PKT-3730
Digital LCR - Tester to measure inductivity, capacity and resistance / EN 61010-1, CAT II /
diode- and continuity inspection / transistor check function / LCD display
/indication of battery state

The digital LCR- tester PeakTech PKT-3730 is a portable, high-accuracy meter for the detection of inductivity, capacity and resistance. This digital LCR-tester is not only designed for engineers, who use the device in their everyday routine, but it is also ideal for academics at universities and colleges  to explain principles of electricity, and for inspections in areas of processing and fabrication. The LCR-tester PeakTech PKT-3730 is applicable to test condensers within a range of 2 nF ... 200 µF, inductors within 2 mH ... 20 H and resistances within 200 Ω ... 20 MΩ. Furthermore the digital LCR-tester features a diode-, continuity- and transistor test-function. The 3 ˝- digit, 21 mm LCD display (max. 1999) allows a quick and precise readout of the values. Apart from that working with the LCR-tester PeakTech PKT-3730 ensures safety for the operator, since the LCR-tester matches the protection class EN 61010-1 and is CAT II approved. The condensers that are to be measured, can be plugged straight into the clamping sleeves of the digital LCR-tester PeakTech PKT-3730 or they can be connected to the test leads, which are included in delivery. If there are any questions about this Digital LCR-TEster Peak Tech PKT-3730, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all LCR-meters and all products in the field of measuring instruments, regulation and control and scales

 Digital LCR-Tester  PeakTech PKT-3730  User manual for the  Digital LCR-Tester  PeakTech PKT-3730  EC certificate for the  Digital LCR-Tester  PeakTech PKT-3730  Video for the  Digital LCR-Tester  PeakTech PKT-3730   Digital LCR-Tester  PeakTech PKT-3730 20 further Images  Technical specifications of the  Digital LCR-Tester  PeakTech PKT-3730

Digital LCR Tester PeakTech PKT-3730

- Measures inductivity, capacity and resistance
- hFE test
- Diode- and continuity- check
- Transistor test-function

- 3 1/2- digit, 21 mm LCD display
- Indication of battery state
- LCD display
- Safety: EN 61010-1; CAT II

Technical Specifications



Measurement range

Resolution

Accuracy

Capacity

2 / 20 / 200 nF
2 / 20 / 200 µF

1 pF

± 1.0 % + 5 dgt.

Inductivity

2 / 20 / 200 mH
2 / 20 H

1 µH

± 2.0 % + 8 dgt.

Resistance

200 Ω
2 / 20 / 200 kΩ
2 / 20 MΩ

0.1 Ω

± 0.8 % + 1 dgt.

Measurement sequence

2 ... 3 x per second

Protection Class

EN 61010-1

ILS category

CAT II

Display

3 1/2- digit, 21 mm LCD display (max. 1999)

Power Supply

9 V battery

Dimensions

85 x 175 x 40 mm

Weight

300 g

Delivery Content

1 x Digital LCR- meter PeakTech PKT-3730, 1 x holster, 1 x test lead, 1 x battery, 1 x instruction manual
