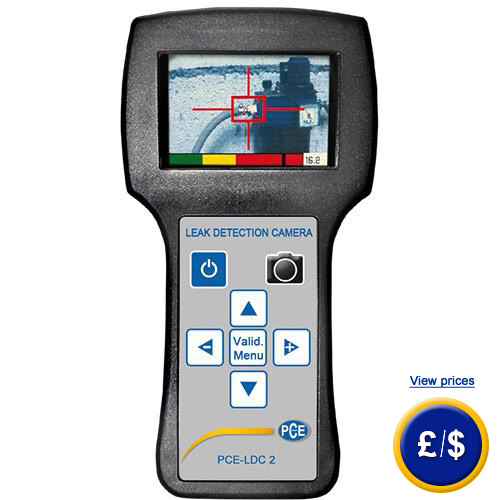

Leak Detector PCE-LDC 2
leak-detector with digital camera / continuous measurement /
adjustable intensity 50 ... 110 dB / battery operation / incl. report software

Due to an ultrasonic measuring method with a graphic display of the measured data the leak detector PCE-LDC 2 enables a visualization of the leakage or the discharging location. Furthermore the result is graded with an acoustic signal as well as a color coded signal. The detected leakage is shown in a generated image on the display of the leak detector PCE-LDC 2 and can be transferred to a computer with the software included in delivery. Thus work for e.g. a maintenance team becomes significantly easier and spares them some time. Another advantage of the leak detector PCE-LDC 2 is that date. time and sound level are recorded separately so that they can be numerated and ordered manually. The exceptionally high sensitivity of the leak detector PCE-LDC allows a detection of even smallest leakages of 0.1mm at 3 bar from a distance of 20 m. By adjusting the intensity from 50 to 110 dB the measurement with the leak detector can be adjusted to surrounding conditions. The leak detector PCE-LCD 2 can manage more than only the task of detecting leakages in air lines: in areas of electrical engineering the leak detector helps finding partial discharges, e.g. poor contacts and thus shows flashovers on draggled areas, insulation leaks or corona effects in high-voltage facilities. In areas of mechanical engineering the leak detector facilitates finding default antifriction bearing with an optional, external sensor. If there are any questions about this Leak Detector PCE-LDC 2, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703 0. Our technicians and engineers will gladly advise you regarding all leak detectors and all products in the field of measuring instruments, regulation and control and scales.

Get more information on the Leak Detector  User manual for the Leak Detector  EC certificate for the Leak Detector  Video for the Leak Detector   Vibration Leak Detector Leak Detector  Technical specifications of the Leak Detector

Leak Detector PCE-LDC 2

- Continuous measurement
- With digitally working camera
- Intensity 50 ... 110 dB

- Battery operation up to max. 6 h
- Software for evaluation included
- Adjustable frequency range

Technical Specifications of the Leak Detector

Measurement range

Sensitivity

detects leakage from 0.1 mm at 3 bar from 20 m distance

Warm-up time

approx. 90 sec.

Marking aim

via square and aiming cross, low leakage is coded yellow whilst larger leakages are coded red.

Test cycles

continuous

Head phones

adjustable volume in 10 levels

Functions

dB RMS and dB MAX

Display and camera brightness

adjustable in 10 levels

Supported menu languages

English, German, French

Interface

USB

Data storage

up to 1000 images (JPEG format)

Resolution

Camera: 640 x 480 pixels
Display: 320 x 240 pixels, 3.5" LCD

Power supply

lithium ion batteries 5 V DC, AA, charging time 5 hrs.

Battery life time

approx. 6 hrs (normal operation)

Dimensions

230 x 100 x 70 mm (H x W x D)

Weight

Device: 580 g
whole delivery: approx. 4 kg

Sensor



Band width

±2 kHz to 6 dB

Basic frequency

40 kHz ±1 kHz

Mixing frequency

34 ... 46 kHz

Amplifying

Automatic or manually adjustable 50 ... 110 dB

Surrounding conditions



Temperature

-10 ... +50 °C

Relative humidity

5 ... 95 % rH (non condensing)

Application images of the Leak Detector PCE-LDC 2

Leak Detector PCE-LDC 2 on antifriction bearing

The leak detector PCE-LDC 2 is also ideal to determine damages on antifriction bearing via the optional contact sensor.

Leak Detector PCE-LDC 2 on pressure pipes

Here you can see the leak detector PCE-LDC 2 during a quick search and documentation of leakages on pressure lines.

Delivery Content of the Leak Detector PCE-LDC 2:
1 x Leak Detector PCE-LDC 2,
1 x head phones,
1 x lithium ion batteries,
1 x battery charger,
1 x USB connection cable,
1 x software,
1 x transportation case,
1 x instruction manual

Optional Equipment of Leak Detector PCE-LDC 2:

PCE-LDC-Flex
To detect leakages at locations that are difficult to reach.

Leak Detector PCE-LDC 2 optional equipment

PCE-LDC Probe
Contact probe for stethoscopic control of antifriction bearings and condensate traps

Leak Detector PCE-LDC 2 optional probe

Further information on the Leak Detector

Return from Leak Detector to homepage.

Similar products to the Leak Detector:

- Leak Detector Metpoint LKD
  (for compressed-air lines, simple handling, measuring up to 40 kHz)

Leak Detector Metpoint LKD

- Leak Detector Sonaphone
  (measuring frequency up to 40 kHz, external ultrasonic sensor, head phones)

Leak Detector Sonaphone
