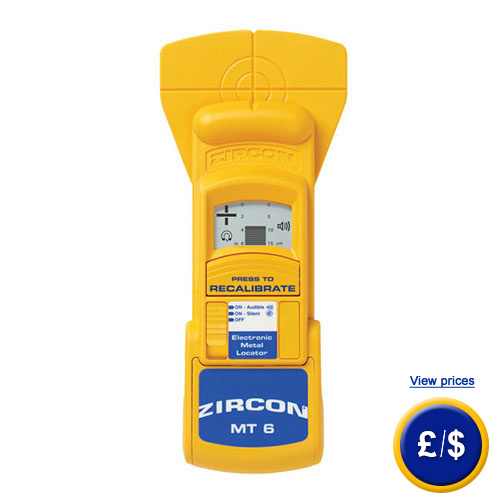

Metal detector MetalliScanner MT6
Metal detector MetalliScanner MT6 finds hidden metal behind surfaces / locates iron-containing and non-iron-containing metal / with material determination

With this metal detector, you can easily localize encased before you have drilling a hole. This efficient and high-quality metal detector helps you to localize both iron-containing and non-iron-containing metal in a depth of up to 152 mm in solid concrete and other non-metallic surfaces. Additionally, you are shown whether the metal is iron-containing or non-iron-containing as well as the exact depth of the detected metal in centimetres and inches. If the metal detector approaches a metallic object, a large plus-symbol is shown on the display. If the plus-symbol turns into a minus-symbol, the metal detector has passed the metal. This metal detector is suitable to detect or skirt concrete ribbed reinforcing bars, cables, pipes and nails. Even if these objects are behind wall plaster, roof battens or other trims, they will be found by the metal detector. The metal detector can distinguish magnetic metal (e.g. metal frame work) from non-magnetic metal (e.g. copper lines) and shows this to you, too. As a further feature, this metal detector features a notice mechanism which specifies how deep the found metal lies in centimetres and inches. The easily readable LCD shows the exact position of the metal. The largest distance between object and metal finder is 152 mm. The metal detector also shows various metals’ structures. This works with any non-metallic upper material, including concrete, tiles and marble. If you have further questions about the metal finder MetalliScanner, please look at the following technical specifications or contact us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technical staff will advise you regarding our products. Our engineers and technicians will be happy to help you with metal finders, and, of course, with the other products in the field of regulation and control, and scales and balances of PCE Instruments.

- Shows metal up to a depth of 152 mm
- Shows metal starting from a depth of 13 mm
- Gives an indication of the kind of metal

- Shows the metal's depth in cm and inches
- Automatic recalibration
- Suitable for splashing water, not waterproof

Technical specifications metal detector MetalliScanner MT6

Localisation depth

Up to 152 mm

Resistance to water

Suitable for splashing water, but not waterproof

Operating temperature

-7 °C ... +49 °C

Storage temperature

-29 °C ... +66 °C

Humidity

80 % r. F. (non-condensing)

Type of Battery

9 V Alkali (not supplied as standard)

Weight

286 g (without battery)

Size

225 mm height x 98 mm width x 57 mm deep

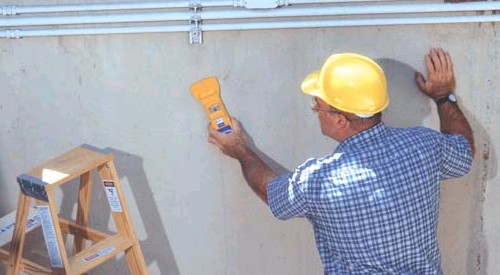

Application example for the metal finder:

The metal finder: A perfect instrument for craftsmen and do-it-yourselfer

Delivery content multifunctional-wall-scanner

1x metal finder MetalliScanner®, operating instruction
