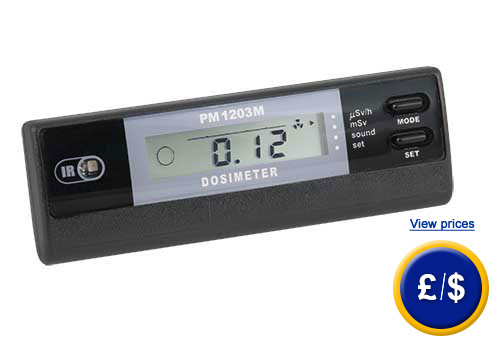

Multifunctional Dosimeter PM1203-M
Multifunctional dosimeter for measurement of ambient equivalent dose/ internal storage/ optic and acoustic signal in case of transgressing a defined threshold/ large LC display with digital and analogue scale

This low cost multifunctional dosimeter is ideal to perform tasks in fields of radiation protection. The universal special dosimeter is customized for continuous monitoring of radiation state and for detection of ionising radiant sources. The multifunctional dosimeter PM1203-M is developed for a broad user group, including security agencies and protective services, scientists, medical personnel, and other persons that are job-related exposed to radiation. The special dosimeter is an ideal solution for self-conscious persons that live in areas with raised radiation levels. The internal storage of the multifunctional dosimeter allows an infrared connection and a transfer of the measurement data to a computer. In case of transgressing the defined dose or the dose rate an acoustic signal gives betimes a warning. The multifunctional dosimeter is CE- certified and follows all international standards. For further information about the multifunctional dosimeter PM1203-M, please read the following technical data or call our Hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. You can also reach us through our contact form. Our engineers and technicians will gladly advise you regarding the multifunctional dosimeter PM1203-M or any product in terms of regulation and control or scales and balances by PCE Instruments.

- Measurement of ambient equivalent dose
- Internal storage
- Infrared connection with computer
- Optic and acoustic signal on transgression of
  defined threshold value
- Large LC display with digital and analogue scale
- Battery lifetime of one year
- Light and compact
- Clip to wear in front pocket

User groups:
- Customs authorities
- Civil protection departments
- Medical personnel
- Authorities of radiation control
- Security agencies and protective services
- Laboratories for radiation inspection
- Isotope identification

Basic information (please follow link description)

Which measuring units are common in fields of radiation protection?
We have no sense for the recognition of ionised radiation. Thus for the detection of radiation a measuring device is necessary. In order to evaluate the effect of radiation knowledge about radiation forms and energy as well as about radionuclides in the human body are necessary. For example the activity measurement alone does not give any indication about biological effects or dangerousness of radiation (for a detailed itemisation of indicators, please follow the link above). The dosimeter is multiple applicable and warns the user in case of too high dose rate.
You can provide further information concerning radiation measurement or radiation protection under the link SSK or at the company for system and reactor safety, under the link GARK.

Technical specification of the Multifunctional Dosimeter

Detector

Geiger-Müller counter

Measuring range for dose equivalent rate

0.1 µSv/h ... 2000 µSv/h

Indication range for dose equivalent rate

0.01 µSv/h ... 2400 µSv/h

Dose rate threshold in range

0.1 µSv/h ... 1999.99 µSv/h

Resolution

0.01 µSv/h

Dose equivalent measuring range

0.01 ... 9999 µSv

Adjustment range for dose equivalent threshold

0.01 ... 9999.999 µSv

Resolution

1.0 µSv

Time measuring range for dose absorption

1…9999 hrs.

Tolerated measuring error limit
- for dose equivalent rate ( H stands for dose
  equivalent rate in µSv/h)
- for equivalent dose

± (15 + 1.5 /H + 0.0025 H) %

± 20 %

Energy dependency based on 0.662 MeV (Cs-137)

< ± 25 %
(energy range: 0.006 MeV ... 0.662 MeV)
< ± 15 %
(energy range: 0.662 MeV ... 1.5 MeV)

Energy range

0.06 MeV...1.5 MeV

Response time

<10 sec

Power supply

2 x batteries V 357 (incl.)

Control of charge state

LC display

Surrounding

-40 ... +60 °C / max. 90 % RH

Alarm signal

approx. 80 dB (A) at 30 cm distance

Additional feature

PC connection possible

Dimensions

125 x 42 x 24 mm

Weight

90g

This is how the multifunctional dosimeter is worn

Delivery content

1 x Multifunctional dosimeter PM1203-M, 2 x batteries, instruction manual
