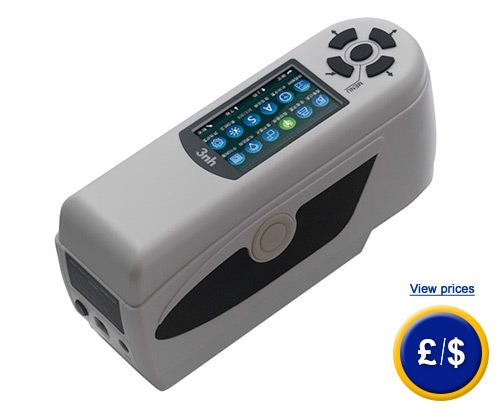

Portable Colorimeter PCE-CSM 7
Portable Colorimeter PCE-CSM 7 for quality control / PC software included /
black and white calibration / measurement modes for different colors / degree of whiteness and yellowness / color measurement of black, white, red, green, yellow and blue

The portable colorimeter is an all-round applicable device. The portable colorimeter PCE-CSM 7 allows to measure different parameter. The portable colorimeter realize an automatically white and black calibration when it is switched on. Our portable colorimeter is formed ergonomic and has a user-friendly surface. It has a little measurement inaccuracy and is suitable for a professional use. The portable colorimeter facilitate the work of producers and other users. Manufacturer are depend on the quality of they products. To achieve and observe the optical requirements, our portable colorimeter features the best reliability. When high quantities are to produce, all products should have the same optic. The portable colorimeter facilitates therefore the work and protects the manufacturer against expensive failures. It doesn't matter, which product it is, because our portable colorimeter caps a big color gamut for the measurements. The measurements can be analyzed via a software.

In case that you have any questions about the portable colorimeter PCE-CSM 7, read the technical data or get in contact with us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will inform you about our portable colorimeter or any other product of in the field of Laboratory Equipment, Regulation and Control, Measuring Instruments or Scales and balances of PCE Instruments.

Portable Colorimeter PCE-CSM 7   User's manual for the Portable Colorimeter PCE-CSM 7

portable colorimeter: here to the device

- rechargeable Lithium-Ion battery
- automatically white and black calibration
- steady performance
- degree of whiteness

- measurement of different colors
- application at many surfaces
- easy measuring steps
- yellowness

Technical specifications of the portable colorimeter

Illuminating/Viewing Geometry

8/d

Measuring Aperture

Ø 8 mm / Ø 4 mm

Detector

Silicon photoelectric diode

Color Space

CIEL*a*b*C*h
CIEL a* b*
CIEXYZ
CIERGB
CIEL u* v*
CIEL*C*h°
Yellowness & Whiteness Color Fastness

Color Difference Formula

△ E* ab; △ L*a*b* ;△ E*C*h* ;△ ECIE94 ;
△ Ehunter

Light source

D65, D50, A

Light source device

LED blue light excitation

Errors between each equipment

≤0.40ΔE*ab

Storage

100 pcs. standards, 20000 pcs. samples

Repeatability

Standard deviation within ΔE*ab 0.07
Average of 30 measurements of standard white plate

Weight

500 g

Dimension

205 x 70 x 100 mm

Power source

Rechargeable Lithium-Ion battery 3.7 V

Lamp Life

5 years, more than 1.6 million measurements

Charging Time

8 hours

Measuring times before recharging

more than 3000 times

Operating Temperature / Humidity Range

-10 ... +40 °C; 0 ... 85% relative humidity, non condensation

Data Interface

USB

Examples of use of the portable colorimeter

The portable Colorimeter can be used for color measurement on plastic.
The portable colorimeter can be used for color measurement on plastic.

The staff checks with the colorimeter if the color is the same on each product.
The staff checks with the colorimeter if the color is the same on each products.

The portable Colorimeter PCE-CSM 7 is also used in the car industry to measures colors on car finish.
The portable colorimeter is also used in the car industry to measures colors on car finish.

The color also can be controlled with the portable colorimeter PCE-CSM 7 at glossy colors.
The color also can be controlled with the portable colorimeter at glossy colors.

The portable Colorimeter PCE-CSM 7 is on duty at the pharmaceutical industry.
The portable colorimeter is on duty at the pharmaceutical industry.

The portable Colorimeter PCE-CSM 7 is suited to measure the color of materials.
The portable colorimeter is suited to measure the color of materials.

portable colorimeter. Here you can see the display of the PCE-CSM 7
The display of the portable colorimeter.

The sensor of the portable Colorimeter.
The sensor of the portable colorimeter.

portable colorimeter: Here you can see the display of the PCE-CSM 7
The display of the portable colorimeter during a check measurement.

Delivery content of the portable colorimeter

1 x portable colorimeter PCE-CSM 7
1 x transport case
1 x rechargeable battery
1 x calibration board
1 x PC-Software
1 x user manual
2 x blind (4 und 8 mm diameter)

Delivery content of the portable Colorimeter

Portable Colorimeter PCE-CSM 7
