Universal Torque Meter PCE-MMT E

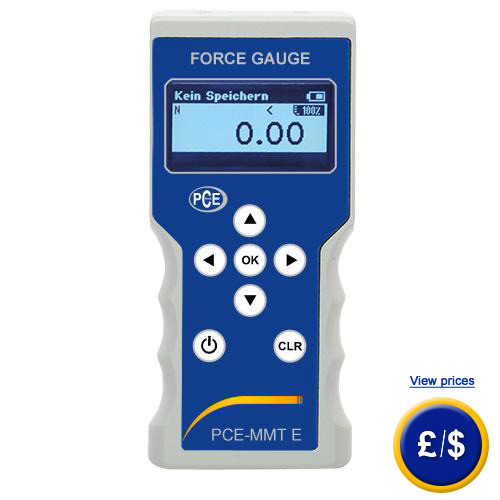

Universal Torque Meter PCE-MMT E Universal torque meter for building of machines and facilities / 1 ... 5000 Nm / IP 64 protected / 50 ... 2000 Hz measuring frequency / various sensors with TEDS / internal flash drive and memory card / opt. software SoftPCE
The universal torque meter PCE-MMT E is mainly applied for developing gearing and combustion motors, since the determination of torque and the rotational speed are essential for their performance. Thus the universal torque meter PCE-MMT E can be ideally applied in areas of building machines and facilities and material handling. The universal torque meter PCE-MMT E measures the torque by external torque sensors, which must be purchased separately. These torque sensors function by measuring the torque via the deformation of the measured body. Thus the universal torque meter is able to measure torques between 1 to 5000 Nm. The sensors of the universal torque meter are IP 64 protected and feature an integrated TEDS- module. The measuring frequency can be set between 50 and 2000 Hz. Due to the integrated memory function furthermore the measured values can be stored as -cvs-files compatible with Excel. The internal flash memory has a capacity of 128 kB, a 2 GB memory card is included in delivery. With the optional software SoftPCE those data can be subsequently transferred to a computer and archived. The universal torque meter can be also mounted by its M6 bore holes, two of each at the back and head of the device. A characteristic of the universal torque meter is that it can be also applied for measuring force due to other optionally purchasable sensors. If there are any questions about this Universal Torque Meter PCE-MMT E please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding all torque meters and all products in the field of measuring instruments, regulation and control and scales.


- 2.8 " LCD display with background lights - 1 ... 5000 Nm (various sensors) - Internal flash- memory and 2 GB SD card	- 2 digital Open-Collector output - TEDS module connectable - Optional Software SoftPCE
Technical Specifications of the Universal Torque Meter
Measurement uncertainty	≤ ± 0.05 % from nominal value
Measuring frequency	50 ... 2000 Hz, adjustable
Processor	32 bits RISC μ-processor, 128 kB FlashA
Display	7-digits + comma, 2.8" graphic LCD display with background lights (128 x 64 pixels)
AC/DC transformer	24 bit
Analogue force signal output	0 ... 2 V DC
Display resolution	± 50,000 digits
Threshold signal	2 digital open-collector outputs, programmable
Power Supply	+ 4 AA Ni-MH rechargeable batteries + USB recharge adapter + use of non-rechargeable batteries possible
Data Storage	128 kB Flash memory removable SD memory card 2 GB
Recording frequency	up to 2,000 Hz in real-time speed, with option to store data online
Data export (USB)	Using the device as streaming client for continuous data transfer of measured data with real-time speed to a computer (... 100 Hz)
Processing of real-time speed data	Export into csv-format possible Soft PCE software (Win XP / Vista, Win 7 and 8)
Dimensions	170 x 75 x 35 mm (H x W x D)
Weight	approx. 620 g
Operation time	approx. 10 hours battery life-time
Enclosure	Aluminum die casting enclosure according to RAL7035 with grip modules and 2 M6 bore holes for flexible fixation and montage in test bed. Bore holes on top and back of device.
* What is TEDS?
TEDS is a Transducer Electronic Datasheet. It refers to an international sensor standard. Each TEDS measuring cell features a data chip integrated into a sensor or a socket. These contain basic information on the measuring cell. These can be e.g. serial numbers, measuring ranges or calibration data. If a TEDS measuring cell is connected to a device, the stored data can be seen via its menu navigation
Dimensions of the Universal Torque Meter PCE-MMT E

Delivery Content of the Universal Torque Meter PCE-MMT E:

1 x Universal Torque Meter PCE-MMT E, 1 x SD memory card 2 GB, 1 x USB data cable, 1 x USB charger, 1 x calibration certificate
	Charging adapter for Universal Torque Meter PCE-MMT E The delivery package of the mobile force meter PCE-MMT E also includes a charging adapter. This adapter facilitates an easy recharge of the NiMh batteries. After the batteries are fully charged, the mobile force meter PCE-MMT E can operate for more than 10 hours. Alternatively the mobile force meter can also run on non-rechargeable batteries.
USB data cable of the Universal Torque Meter PCE-MMT E The delivery package also includes a USB data cable to connect the mobile force meter to a computer and transfer the measured data easily to a computer to process these data further and archive them. The software SoftPCE facilitates the data analysis. The software also enables a data indication with real-time speed.
Optional Equipment for the Universal Torque Meter PCE-MMT E
	Signal Cable for Universal Torque Meter PCE-MMT E The cable can be used for: - sensor input signals (an external force- and torque sensor) - Threshold signals ( for e.g. an automatic machines-stop) - Incremental signal, 5 V level ( incremental- input to measure path or angle via Encoder, e.g.: traverse way of PCE-TF 3 / PCE-TF 5)
Analogue signal cable for Universal Torque Meter PCE-MMT E The cable can be used for: - Force signals ± 2V DC (analogue output)
	Torque sensor PCE-SA series - available sensors: 1 Nm, 2.5 Nm, 10 Nm, 20 Nm, 50 Nm, 100 Nm, 200 Nm, 500 Nm, 1000 Nm, 2000 Nm, 5000 Nm - for static reactive-torque - standard square drive input according to DIN 3121 - for the permanent installation of machines - TEDS module integrated in sensor
Torque sensor PCE-SB series - available sensors: 10 Nm, 20 Nm, 50 Nm, 100 Nm, 200 Nm, 500 Nm, 1000 Nm, 2000 Nm, 5000 Nm - for static reactive-torque - Flange connection - High rigidity - TEDS module integrated in sensor
These sensors allow the measurement of force with the Universal Torque Meter :
	Force sensor PCE-HD series 25-500 - available sensors: 25 kN, 50 kN, 100 kN, 250 kN, 350 kN, 500 kN - made of stainless-steel, hermetically welded - IP 68 protected - also with TED module inside plug
Force sensor PCE-HD series 1000 - 5000 - available sensors: 1000 kN, 3000 kN, 5000 kN - massive cylindrical measuring body - IP 67 protected - even with TEDS-module inside socket
Software SoftPCE for graphic indication of measured data with real-time speed
Further optional equipment for the Universal Torque Meter PCE-MMT E 2-point calibration for analogue force signal output Adaptation of incremental input for encoder to measure path and angle of force
