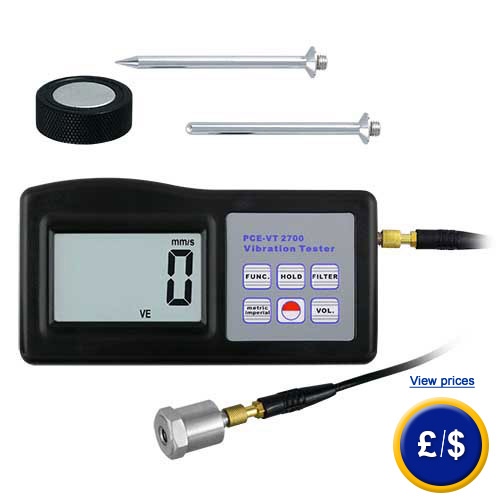

PCE-VT 2700 Vibration Meter
Vibration meter for inspecting vibrations in machines and installations, detects three vibration parameters

The PCE-VT 2700 vibration meter is ideal for maintenance personnel to quickly test vibrations in machine parts and installations. The vibration meter shows acceleration, velocity and vibration displacement on the display. This device can detect potential problem areas in moving components quickly and safely. It comes with two sensor tips (50mm), support sensor, magnetic base, a handle and transport case.  An RS-232 interface that allows transport of data from vibration meter to PC for further analysis is included. Optional it can be calibrated to meet ISO standards. This link shows another vibration meter that can acoustically determine vibration in machines and installations. Here is an overview of all the vibration meters we have available to suit your needs. If you have any questions about these products, please contact us: +44 ( 0 ) 2380 98703 0. Our technicians and engineers will be happy to help you with this borescope and all other products in the field of measuring instruments, regulation and control and scales

User manual for the PCE-VT 2700 Vibration Meter

Vibration-meter-pce-vt-2700

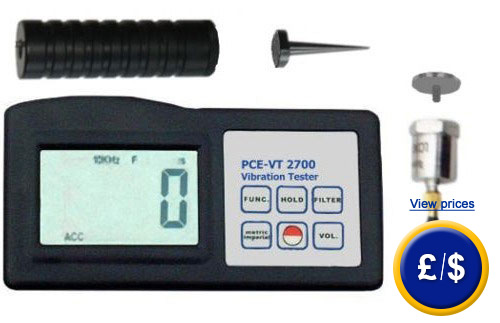

The image above shows the device with its supporting adaptor.

- small and lightweight
- easy to use
- ideal for measurements on-site
- Peak-Hold function

- ABS plastic case
- 3.5 digit LCD
- low battery indicator
- optional ISO calibration certificate obtainable

Technical Specifications
Ranges Acceleration 0.1 ... 400.0 m/s² (Peak)
  Velocity 0.1 ... 400.0 mms-1 (RMS)
  Displacement 0.001 ... 4.000 mm (Peak-to-Peak)
Revolutions 5 ... 100,000 rpm
Resolution Acceleration 0.1 m/s²
  Velocity 0.1 mms-1
  Displacement 1 µm
Revolutions 1 rpm
Accuracy Acceleration ±5%
  Velocity ±5%
  Displacement ±5%
Revolutions ±5%
Frequency Range  Acceleration 10 Hz to 1 kHz, 10 Hz to 10 kHz (switchable)
Velocity
  10 Hz ... 1 kHz
Displacement 10 Hz ... 1 kHz
Display 3.5 digit LCD / shows last value
Interface RS-232
Power supply 4 x AAA batteries
Dimensions 124 x 62 x 30 mm
Weight 240 g

Delivery contents
1 x PCE-VT 2700 vibration meter, 1 x support sensor with 1.5 m cable, 2 x 50 mm sensor tips, 1 x magnetic adaptor base, 4 x batteries, 1 x carrying case and 1 x manual

vibration-meter-pce-vt-2700-connections




Here you can see
the corresponding connections of the vibration meter PCE-VT 2700. They are at the lower end of the measuring device and thus protected on one side and also easily accessible

Optional equipment
ISO 9000 calibration certificate
Useful for every company that wishes to include this vibration meter into their internal quality control department or for annual recalibrations.
Ths certificate meets the DIN ISO standard and contains a certificate with the values used for calibration. It also contains details of the company that owns the device.

calibration certificate for the PCE-VT 2700 vibration meter

Replacement measurement points
In the case that measurement points get lost or broken, it is possible to order replacements.

PCE-VT 2700 vibration meter: replacement measurement points
technical specifications for the PCE-VT 2700 vibration meter. return to homepage
