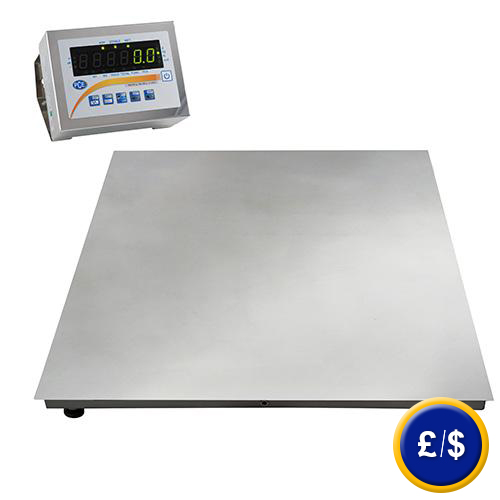

Stainless Steel Floor Scale PCE-SD ... E SST series ( Class III)
Calibratable steel scale up to 6 t / resolution above 0.1 kg / summation function /
tare weight can be saved / counter function / threshold weighing /
 optional: analogue output 4-20 mA, 0-10 V, OC switch, RS232, USB, LAN

The stainless steel floor scale is made entirely of high-quality stainless steel that is resistant to acids. The weighing cells mounted into the stainless steel floor scale have a protection class of IP68. The weighing platform of the stainless steel floor scale is plain and has no screw joints or warping so that the stainless steel floor scale is easy to clean. The platform of the stainless steel floor scale can be purchased in various sizes depending on the required weighing range. The stainless steel floor scale features the following functions: summation, counting, statistics, animal weighing, percentage weighing, determining formula, multiple tare, tare value can be saved, gross and net weighing as well as weighing limits, that can be set (MIN/MAX/OK). Furthermore the stainless steel floor scale can be equipped with an interface to adopt monitoring and controlling functions. Therefore we provide bi-directional RS232, USB, LAN and analogue interfaces with 4-20 mA or 0-10 V as well as three potential-free contacts /OC. In industries there can be particular sizes and functions of the stainless steel floor scales demanded. For such applications we offer individual solutions, such as monitoring the filling level and notifying per text message. In case that you should have more questions regarding the steel scale PCE-SD E SST series, please read the following technical data, use our contact form or call us: +44 (0) 2380 98703 0. Our technicians and engineers will gladly advise you regarding palettes scales or any other product in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

- Calibrated according to Class MIII
- Entirely made of stainless steel
- Tolerance range for weight min/ok/max
- Mean weight calculation
- Summation of several weights
- Percentage weighing for comparing
- Filter (reaction time) applicable
- Protection class IP68-IP65

- Animal weighing function
- Counting function
- Tare weight can be saved
- Formula calculation
- Adjustable automatic switch-off
- Gross / net key at display
- Menu settings variable
- Optional: USB, LAN, 4-20 mA, 0-10 V, OC

*The minimum load is defined by the load, from which the calibration authority tests the accuracy of the scale. The waterproof steel scale shows even lower weights, but these are not valid for custody transfer.

Calibration Class

M III (is calibrated before delivery)

Tare function

Multiple taring for whole measurement range

Settling time

<4 s

Weighing units

kg / units / lb

Interface

Optional bi-directional RS-232 / LAN / USB
Description of interface
and 4-20 mA, 0-10 V, OC

Display

LED with 20 mm digit height (connected via 3 m cable)

Ramp

-see optional equipment

Power Source

~230V, 50Hz, 8VA (Shuko socket)

Protection Class

Load Cells IP 68 / Display IP 65

Operational temperature

- 10 °C ... + 40 °C

Delivery content of the Steel Scale PCE-SD E SST series

1 x Stainless Steel Floor Scale PCE-SD E SST series (incl. calibration), 1 x display with attachment to wall and table, 1 x instruction manual

Optional Equipment for the Steel Scale

Stand
The IP 65 display of the steel scale features an universal attachment offering the option to mount the display on a wall, a table or on the optionally purchasable approx. 80 cm steel stands.

Ramp:
a ramp made of stainless steel to roll weighing subject onto the steel scale. Two sizes fitting the various sizes of the steel scale: 1250 x 1000 mm or 1500 x 1000 mm.
Item Nr. PCE-SD-E-SST-Ramp-1250 for 1250 mm
Item Nr. PCE-SD-E-SST-Ramp-1500 for 1500 mm

Interfaces
Due to its high protection category the steel scale does not feature any interface. Although there is the option to integrate these interfaces by order. They cannot be mounted subsequently.
RS-232 interface Item-Nr. AF-RS232-PCE
RS-485 interface Item-Nr. AF-RS485-PCE
USB interface Item-Nr. AF-USB-S
LAN interface Item-Nr. AF-LAN-S

Software Procell
The software is able to simulate a manual data feed-in and can transfer the data e.g. straight to Excel with time and date. There is also the option of saving a TXT file in the background. (data cable not included in delivery)
It.-nr. PCE-SOFT-Procell

USB stick
If there is no computer or printer to be connected to the steel scale, the weighing data can be saved with time and date stamp as a txt.-file on a USB stick. The USB stick is to connect to the steel scale via the RS-232 interface. The adapter requires a separate external power source (adapter incl.)
Item- Nr. PCE-USM

Analogue output 4-20 mA / 0 ... 10 V
The 16 bit analogue output converts the weight value into a mA or V signal, so that e.g. a SPS control system can response to that. Example with 4 ... 20 mA: At 0 kg a signal of 4 mA is sent, while at maximum load a 20 mA signal is released. The 20 mA / 10 V limit can be also customized individually.
Item-Nr. AF-4-20mA-PCE
Item-Nr. AF-0-10V-PCE

Potential-free contacts
This contactor is called in short-terms an OC-contactor. It means that by reaching preset weight limits e.g. MIN / OK / MAX, the scale is able to switch a maximum of three contacts. The switch can be either set as an impulse or a continuous signal.
Item Nr. AF-TSD

Printer
For immediate print-out of values from the steel scale (e.g. for protocol of weighing data). Delivery of printer incl. RS232 printer cable and 240 V network adapter, paper width 112 mm ( 1 role incl.).
Item Nr. PCE-BP 1

Signal lights
This signal lamp helps assuring a visible signal system for the whole personnel. If the weight is below the minimal limit, the yellow lamp brightens up, if the values are within the preset thresholds, the green lamp brightens, if the weight trespasses the upper limit, the red light starts brighten.
Item -Nr. PCE-CSD

RS-232 cable
This serial cable has a total length of 1 m, and features the accordant pins 2-3/ 3-2 / 5-5 for a bi-directional communication path of the waterproof steel balance with a computer.
Item-Nr. PCE-BDM-RS232

USB adapter
This adapter is meant for a conversion from a RS-232 interface Sub D 9 to a USB interface. It additionally requires a serial cable with the right poling.
Item Nr. RS232-USB
