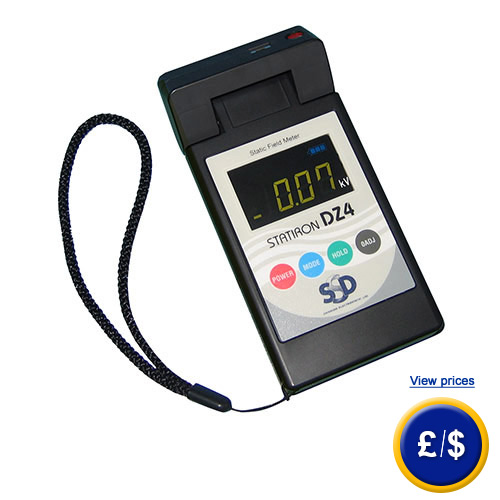

E-Field Meter DZ4
E-field meter to measure static electrification on objects /
Precise measurement through conducting enclosure / for control of ionizers applicable

The e-field meter DZ4 is able to register and process very high electrostatic voltages of up to 19.99 kV (positive / negative). Due to the simple handling the e-field meter DZ4 is ideal for beginners as well as professionals. Due to a low definition of 1 V/ 10 V and a measurement tolerance of only ±5%, the e-field meter allows very accurate measurements. The 180° rotatable sensor head is adjustable in 45° steps and by that allows measurements at inaccessible locations. Due to an integrated LED there is always the right distance from the e-field meter  DZ4 to the object indicated. The optionally connectable electrode allows the e-field meter DZ4 an easy control of ion-balance of ionizers. Due to the integrated HOLD-function values can be easily captured and quickly stored. If there are any questions about this E-field meter DZ4, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all electrostatic meters and all products in the field of measuring instruments, regulation and control and scales

 E-field Meter  DZ4  User manual for the  E-field Meter  DZ4  EC certificate for the  E-field Meter  DZ4  Video for the  E-field Meter  DZ4   E-field Meter  DZ4 20 further Images  Technical specifications of the  E-field Meter  DZ4

E-Field Tester DZ4

- Measuring range of up to 19.99 kV (pos / neg)
-Definition 10 V / 1 V in I.B. mode
-Electrostatic field
- Rotatable sensor head

- Battery operation
- for beginners and professionals
- LED distance display
- Measurement even in ionized air

Technical Specifications

Measuring range

-1.999 kV ... +1.999 kV
-19.99 kV ... +19.99 kV

Measurement distance

30 mm
LED distance indication

Accuracy

±5 %

Operation temperature

+10 ... +40 °C

Display

LCD

Battery

9 V bloc battery

Enclosure

Conductive synthetic (ABS)

Dimensions

68 x 22 x 138 mm

Weight

170 g (incl. battery)

Delivery Content

1 x e-field meter DZ4, 1 x earthing cable, 1 x 9 V battery, 1 x case, 1 x test certificate without measurement values, 1 x instruction manual

Additional Equipment

Sensor Plug for ions-balance-gauging
Calibration Certificate for e-field meter DZ4

(13S-DZ4-CP)
(17S-CFM)
